Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.50.18

Remove

  1. Remove radio cassette player.

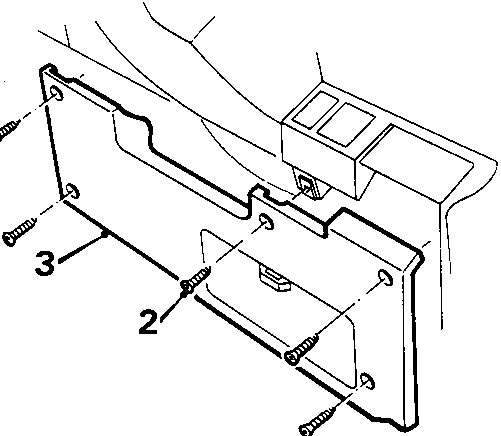

Diagram showing the radio cassette player being removed, with callout numbers 2 and 3 indicating screws and mounting points.
  1. Remove 5 screws, fuse cover to fascia panel.
  2. Remove fuse cover.

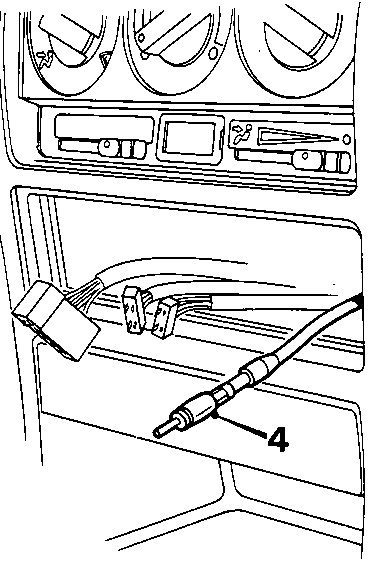

Diagram of the dashboard console area showing the fuse cover location and a coaxial cable connector, with callout number 4 pointing to the cable.
  1. Release coaxial cable from behind console.

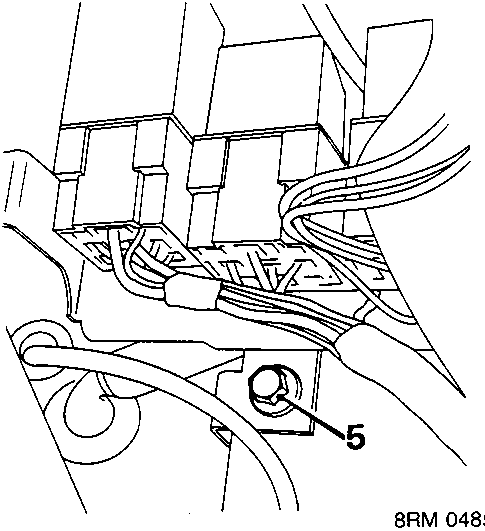

Diagram showing the relay bracket and wiring near the battery area, with callout number 5 pointing to a bolt on the bracket.
  1. Remove bolt, relay bracket to right hand 'A' post.
  2. Move relay bracket aside for access.

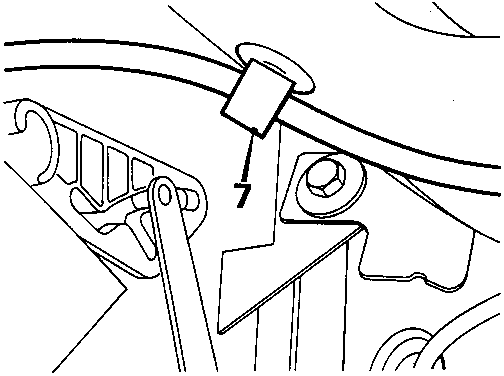

Diagram showing a clip securing a coaxial cable under the fascia, with callout numbers 7 and 8 identifying the clip and cable.

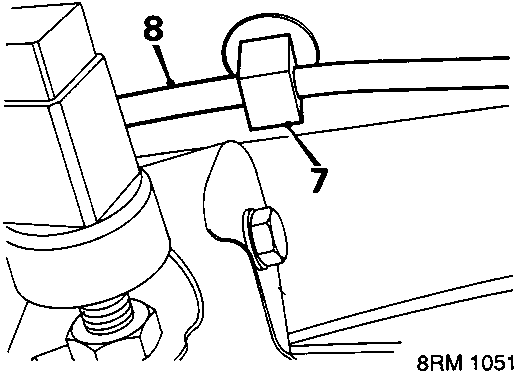

Diagram showing the release of a clip securing a coaxial cable above the steering column, with callout numbers 7 and 8 identifying the clip and cable.
  1. Release 2 clips securing coaxial cable under fascia.
  2. Release coaxial cable from above steering column.
Illustrates removal of front bumper cover on vehicle
