Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.10.06

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove drive belt, see MAINTENANCE.
  2. Fit wooden block to jack and position jack to support engine.

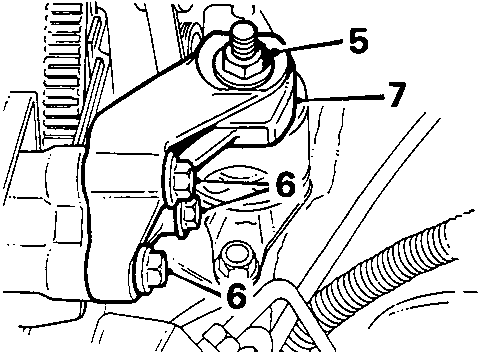

Diagram showing engine mounting bracket with callout numbers 5, 7, and 6
  1. Release power steering reservoir from mounting bracket and position aside.
  2. Remove nut securing R.H. engine mounting bracket to mounting.
  3. Remove 3 bolts securing engine mounting bracket to engine.
  4. Remove engine mounting bracket.

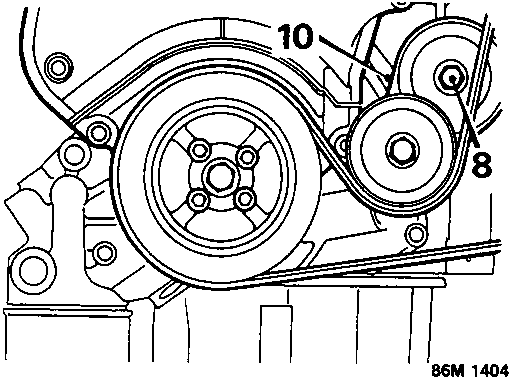

Diagram showing drive belt tensioner assembly with callout numbers 10 and 8
  1. Remove bolt securing drive belt tensioner to engine.
  2. Lower engine on jack.
  3. Release and remove tensioner assembly from engine.

Refit

  1. Clean tensioner pulley assembly.
  2. Fit tensioner assembly to engine.
  3. Raise engine on jack.
  4. Align tensioner assembly to engine, fit bolt and tighten to 45 Nm.
  5. Position engine mounting bracket to engine, fit bolts and tighten to 55 Nm.
  6. Fit nut, engine mounting bracket to mounting, and tighten to 85 Nm.
  7. Fit drive belt, see MAINTENANCE.
  8. Secure power steering reservoir to mounting bracket.
  9. Remove jack supporting engine.
  10. Remove stand(s) and lower vehicle.
