Refit

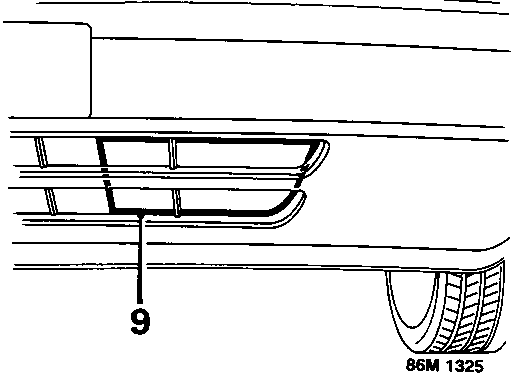

9. All other models with air conditioning: Release splash guard from lower bumper grille, position aside for access to lower headlamp fixing.

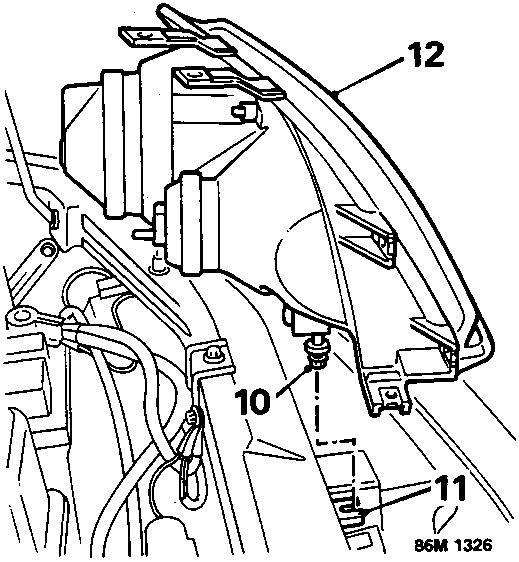

10. Slacken nut securing lower headlamp stud to bracket.
11. Gently pull headlamp forwards to release lower stud from bracket.
12. Remove headlamp complete with finisher.

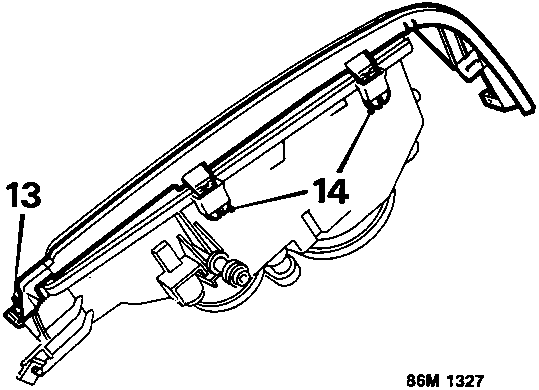

13. Remove screw securing lower finisher to headlamp.
14. Release 2 clips and remove lower finisher from headlamp.

Refit

1. Fit lower finisher to headlamp, engage clips and tighten screw.
2. Position headlamp and gently press down to engage lower stud in bracket.
3. Connect multiplug to headlamp.
4. Fit bolts securing headlamp to bonnet platform, finger tight.
5. Fit screws securing headlamp to wing valance, finger tight.
6. Tighten all headlamp fixings.
7. Coupe with air conditioning: Fit front fog lamps, see Front fog lamps – Coupe.
8. All other models with air conditioning: Position splash guard to lower bumper grille and use a small wire hook to pull guard into position.
9. Position front indicator lamp and secure with screw.
10. Fit radiator grille and tighten screws.
11. Align headlamps, see Adjustments.
