ElectricalRemove

Service Repair No. 86.60.01

Remove

  1. Open bonnet.
  2. Disconnect battery earth lead.
  3. Remove air intake hose.

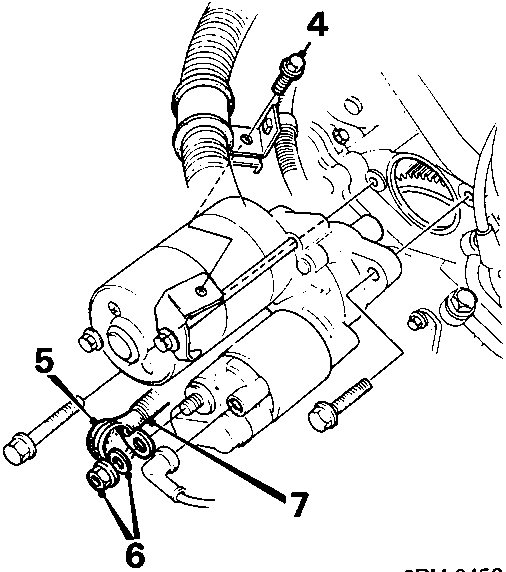

Diagram of starter motor showing callout numbers 4, 5, 6, and 7 pointing to various components including bolts, clips, and leads.
  1. Remove bolt, harness clip to starter.
  2. Pull back cover, battery lead to solenoid.
  3. Remove nut and flat washer, battery lead to solenoid.
  4. Disconnect lead, battery to solenoid.

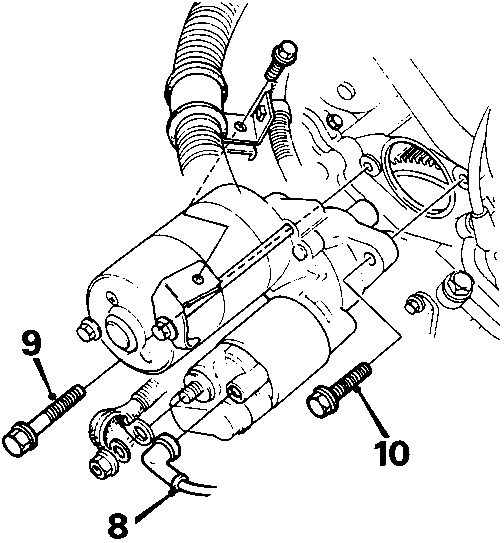

Diagram of starter motor showing callout numbers 8, 9, and 10 pointing to the cover, lower bolt, and upper bolt respectively.
  1. Pull back cover and disconnect Lucar from solenoid.
  2. Remove lower bolt, starter to engine.
  3. Remove upper bolt, starter to engine.
  4. Release starter from housing.
  5. Remove starter.

Refit

  1. Clean starter and mating face.
  2. Position starter assembly.
  3. Align starter into housing.
  4. Fit upper bolt, starter to engine. Do not tighten.
  5. Fit lower bolt, starter to engine. Do not tighten.
  6. Tighten bolts, starter to engine, to 45 Nm.
  7. Connect Lucar to solenoid and position cover.
  8. Connect lead, battery to solenoid.
  9. Fit flat washer and nut, battery lead to solenoid. Tighten nut.
  10. Fit cover, battery lead to solenoid.
  11. Position clip, harness to starter.
  12. Fit and tighten bolt, harness clip to starter.
  13. Fit air intake hose.
  14. Connect battery earth lead.
  15. Close bonnet.
