Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.50.03

Remove

  1. Deactivate security code.
  2. Disconnect battery earth lead.

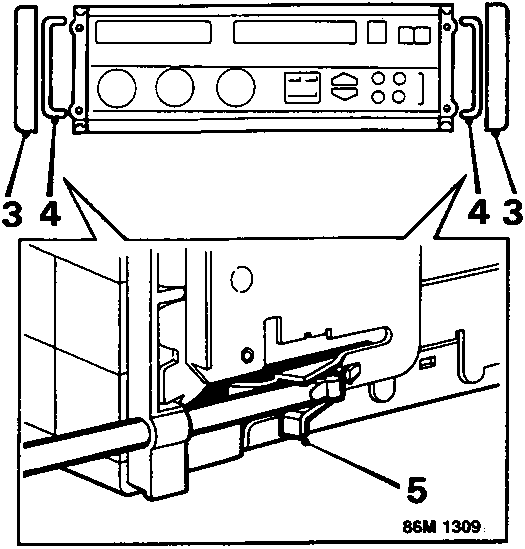

Diagram showing side finishers and radio removal tool SMD 4091 inserted into holes at the edge of the unit, with callout numbers 3, 4, and 5.
  1. Carefully prise the side finishers from either side of the unit.
  2. Insert 2 halves of radio removal tool SMD 4091, one into each pair of holes at edge of unit.
  3. Engage retaining clip lugs (two each side).

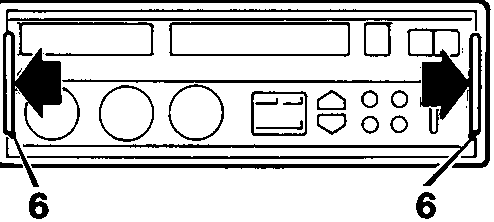

Diagram showing radio removal tool SMD 4091 being pressed outwards to depress clips, with callout number 6.
  1. Press radio removal tool SMD 4091, outwards to depress clips.

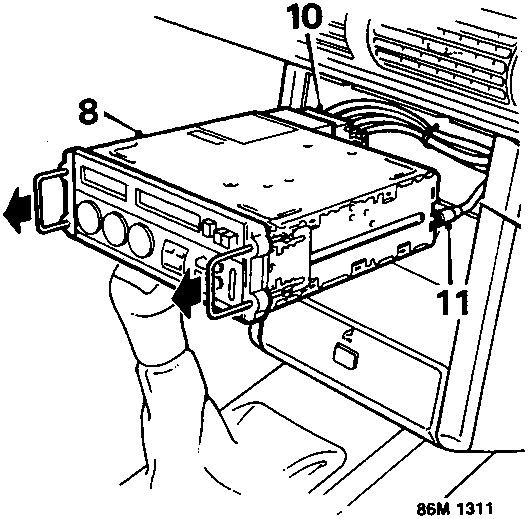

Diagram showing the radio cassette player being pulled out of the fascia panel with removal tool, revealing multiplugs and aerial, with callout numbers 8, 10, and 11.
  1. Pull radio removal tool SMD 4091, to release radio cassette player from fascia panel.
  2. Withdraw radio cassette player from fascia panel sufficient to gain access to multiplugs and aerial.
  3. Remove 2 halves of radio removal tool SMD 4091.
  4. Disconnect multiplugs from unit.
  5. Disconnect aerial lead from unit.
  6. Remove radio cassette player.

Refit

  1. Position radio cassette player in front of aperture in fascia panel.
  2. Connect aerial lead to unit.
  3. Connect multiplugs to unit.
  4. Slide radio cassette player into fascia panel until retaining clips are engaged.
  5. Refit side finishers to unit.
  6. Connect battery earth lead.
  7. Activate security code.
  8. Check radio cassette player for correct operation.
