Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Refit
ElectricalRefit

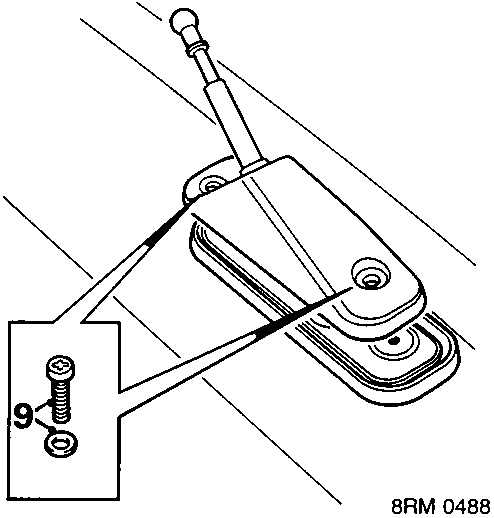

Diagram showing the removal of an aerial from the roof, with callout number 9 indicating the screws and washers. Reference code 8RM 0488.
  1. Remove 2 screws and washers, aerial to roof.

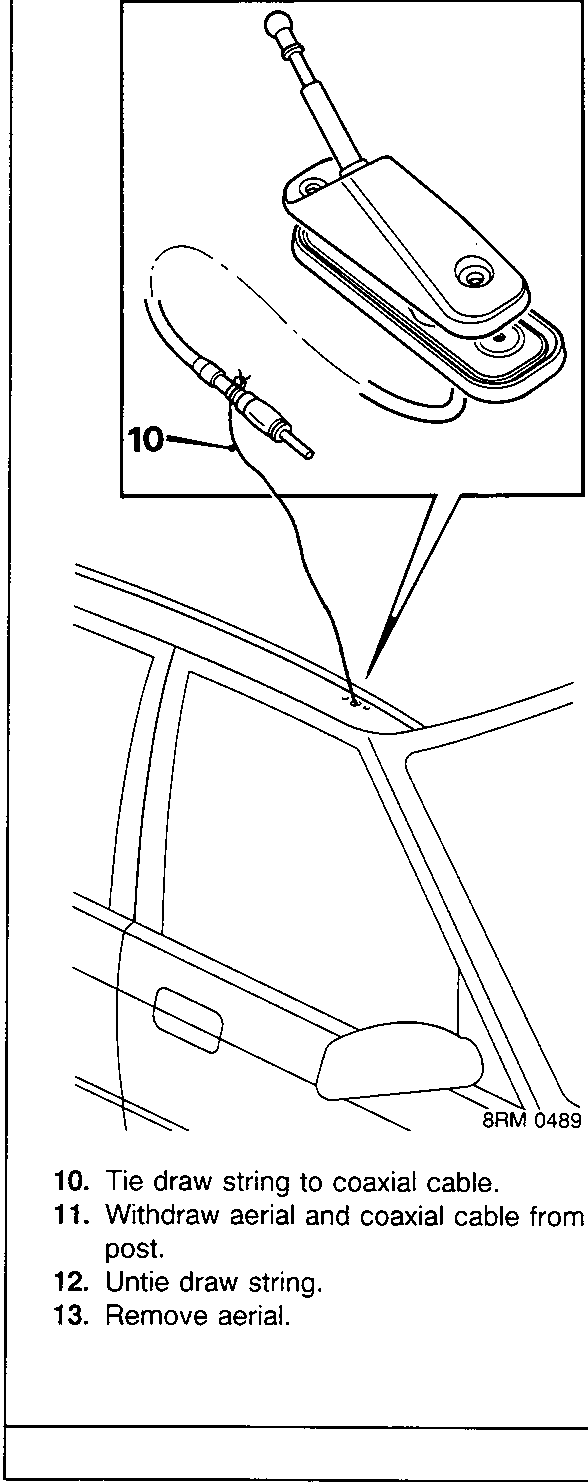

Diagram showing the withdrawal of an aerial and coaxial cable from the 'A' post area, with callout number 10 indicating the draw string tied to the cable. Reference code 8RM 0489.
  1. Tie draw string to coaxial cable.
  2. Withdraw aerial and coaxial cable from 'A' post.
  3. Untie draw string.
  4. Remove aerial.

Refit

  1. Position new aerial.
  2. Tie draw string to coaxial cable.
  3. Pull coaxial cable into, 'A' post.
  4. Align aerial and seal to roof.
  5. Fit washers and screws, aerial to roof. Tighten screws.
  6. Position coaxial cable over steering column.
  7. Position coaxial cable to radio cassette player aperture.
  8. Secure coaxial cable to clips.
  9. Align relay bracket to 'A' post lower panel.
  10. Fit and tighten bolt, bracket to 'A' post.
  11. Fit fuse cover.
  12. Fit and tighten screws, fuse cover to fascia panel.
  13. Fit radio cassette player.
