Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.10.02/20

Remove

  1. Disconnect battery earth lead.
  2. Remove drive belt, see MAINTENANCE
  3. Position drain tin to collect coolant spillage.

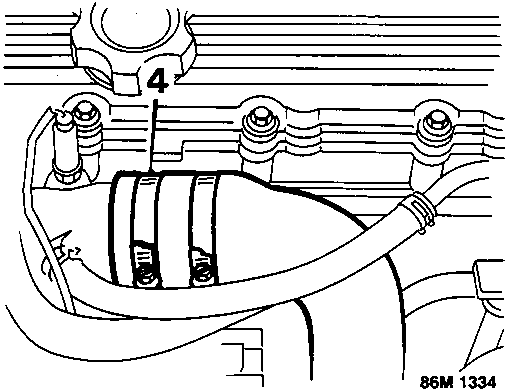

Diagram showing radiator top hose and clip release point
  1. Slacken clip and release radiator top hose.

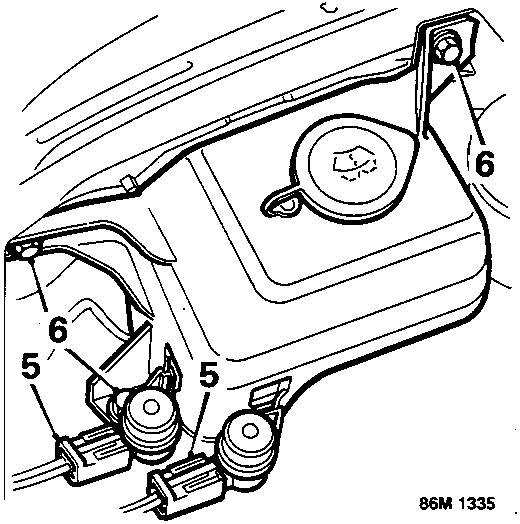

Diagram showing washer reservoir, multiplugs and securing screws

Naturally aspirated models

  1. Disconnect 2 multiplugs from washer reservoir pumps.
  2. Remove 3 screws securing washer reservoir to body and move aside.

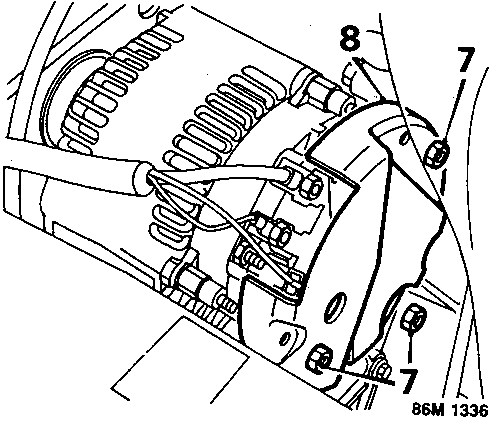

Diagram showing alternator cover nuts and terminal cover removal points

All models

  1. Remove 3 nuts securing cover to alternator.
  2. Remove alternator terminal cover.

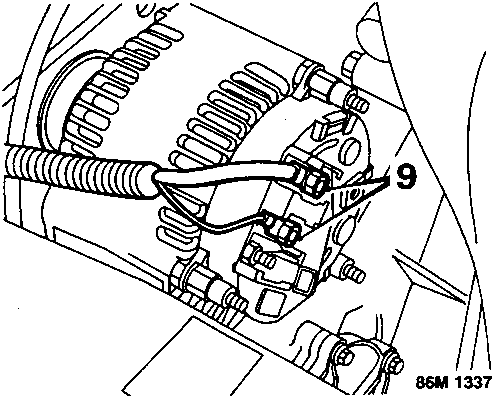

Diagram showing alternator cable connection points and nuts
  1. Remove 2 nuts and disconnect cables from alternator.

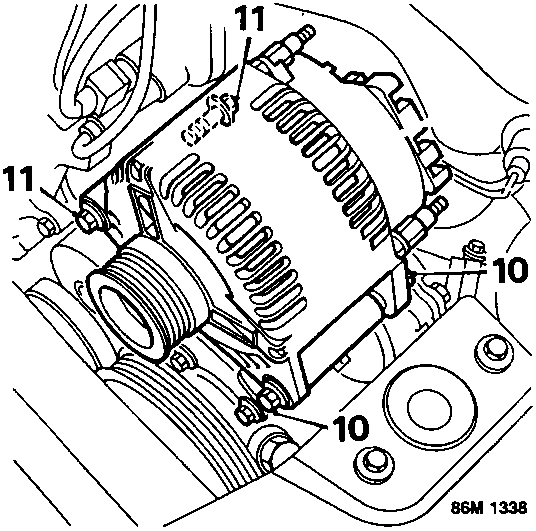

Diagram showing alternator mounting bracket bolts front and rear
  1. Remove 2 front bolts securing alternator to mounting bracket.
  2. Remove 2 rear bolts securing alternator to mounting bracket.
Illustrates right-side door hinge mounting bracket installation
