Service Repair No. 86.50.19 – Electric
Service Repair No. 86.50.18 – Manual

Note: The aerial coaxial cable incorporates a 150 pf capacitor in series with signal line. This means that the cable would appear to be open circuit if tested with a continuity meter.

Remove

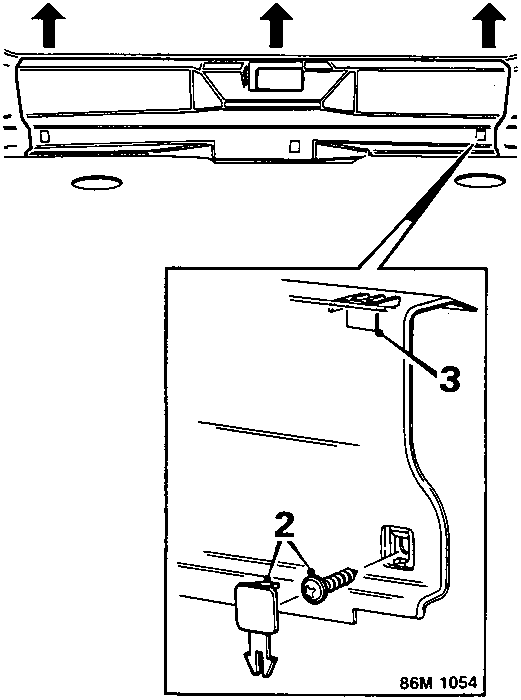

1. Remove luggage compartment carpet.

2. Remove screw covers and screws from rear centre casing.
3. Pull luggage compartment lid seal clear of centre casing and prise casing from body clips.

CAUTION: Care must be taken to ensure that painted surface beneath centre casing is not damaged.

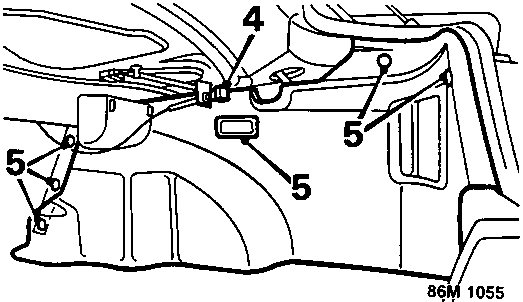

4. Release R.H. rear seat squab catch and fold seat forward.
5. Remove 5 fixing studs from R.H. side valance carpet, disconnect luggage compartment lamp and remove carpet.

Electric aerial illustrated

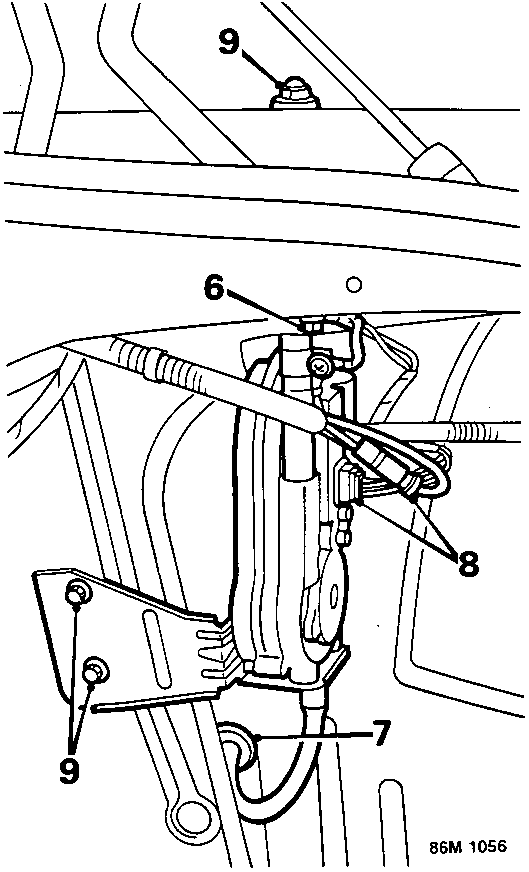

6. Remove aerial earthing screw.
7. Release aerial drain tube from its grommet.
8. Electric aerial: Disconnect coaxial cable and multiplug from aerial fly – leads.
9. Remove mast nut and mounting bracket screws, then remove aerial.

Refit

1. Position aerial and loosely fit mounting bracket screws.
2. Fit and tighten mast nut before finally tightening mounting bracket screws.
3. Locate aerial drain tube into its sealing grommet.
4. Fit and tighten aerial earth screw.
5. Connect coaxial cable.
6. Electric aerial: Connect multiplug to aerial fly – leads.
7. Connect luggage compartment lamp and fit side valance carpet.
8. Fit rear centre casing and reposition luggage compartment seal.
9. Fit luggage compartment carpet.
