ElectricalRemove

Service Repair No. 86.55.49

Remove

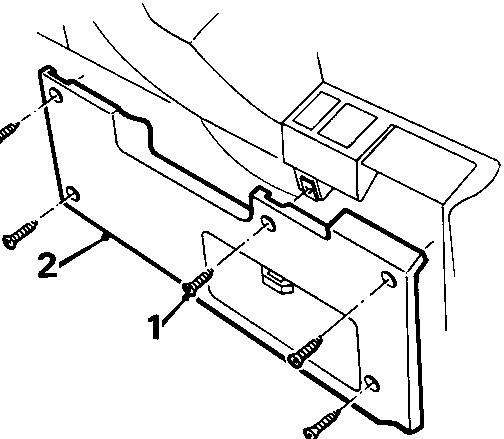

Diagram showing the fuse cover and fascia panel with screws labeled 1 and 2.

8RM 0417

  1. Remove 5 screws, fuse cover to fascia panel.
  2. Remove fuse cover.

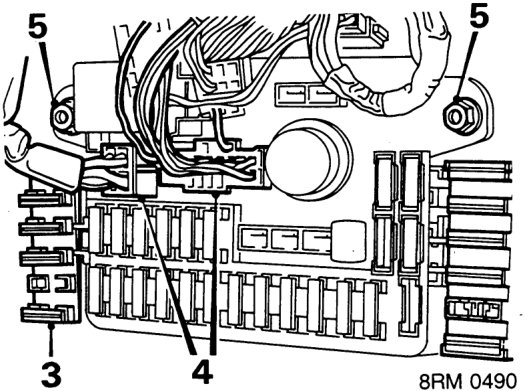

Diagram of the main fuse block area showing harness multiplugs labeled 3, 4, 5.

8RM 0490

  1. Release left - hand fuse block from main fuse block.
  2. Release 2 harness multiplugs from main fuse block to gain access to rear of main fuse block.
  3. Remove 2 nuts, main fuse block to body.

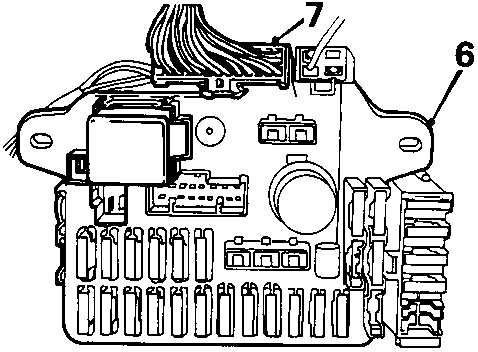

Diagram showing the main fuse block being released from studs with harness multiplug labeled 6, 7.

8RM 0491

  1. Release main fuse block from studs.
  2. Release harness multiplug from top of main fuse block.

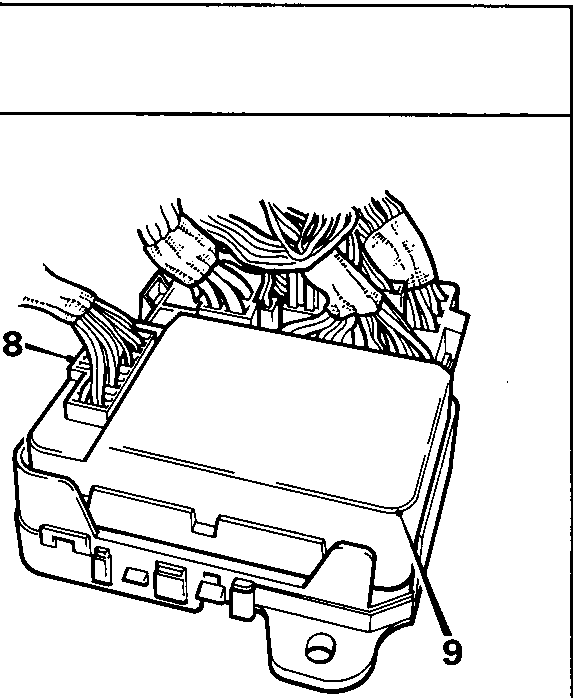

Diagram showing the multi-function unit connected to wiring, with multiplug labeled 8 and unit release point labeled 9.

8RM 0492

  1. Disconnect multiplug from multi - function unit.
  2. Release multi - function unit from rear of main fuse block.
  3. Remove unit.

Refit

  1. Position multi - function unit to main fuse block.
  2. Connect multiplug to multi - function unit.
  3. Position and connect multi - function unit to main fuse block.
  4. Fit harness multiplug to top of main fuse block.
  5. Position the main fuse block on the studs.
  6. Fit and tighten nuts, main fuse block to studs.
  7. Connect harness multiplugs to main fuse block.
  8. Connect left - hand fuse block to main fuse block.
  9. Position fuse cover to fascia panel.
  10. Fit and tighten screws, fuse cover to fascia panel.
