Service Repair No. 86.40.70

Remove

  1. Open luggage compartment.

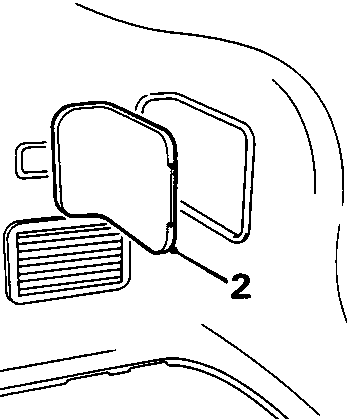

Diagram showing the tail lamp access panel being removed from the luggage compartment lining, labeled with number 2.
  1. Remove tail lamp access panel.

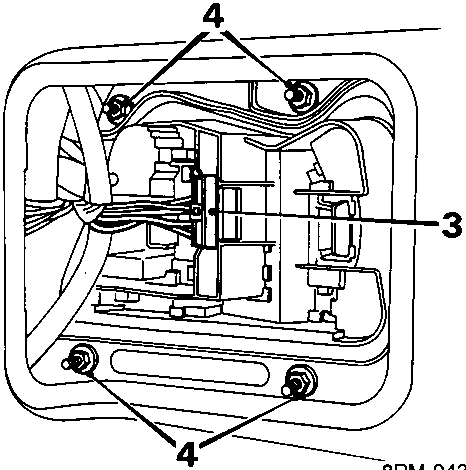

Diagram showing the inside of the tail lamp access panel, with wiring and multiplug connector labeled 3, and four nuts labeled 4.
  1. Disconnect tail lamp multiplug.
  2. Remove 4 nuts, tail lamp to body.

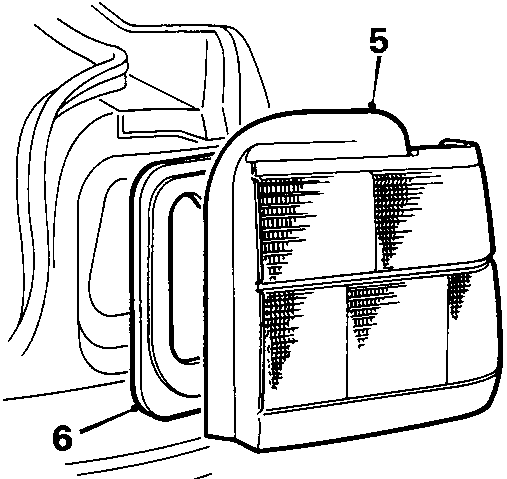

Diagram showing the tail lamp assembly (5) being pulled away from the vehicle body, with sealing rubber (6) visible around the edge.
  1. Remove tail lamp assembly.
  2. Remove tail lamp sealing rubber.

Refit

  1. Fit sealing rubber to tail lamp assembly.
  2. Fit tail lamp to body.
  3. Fit and tighten nuts, tail lamp to body.
  4. Connect tail lamp multiplug.
  5. Fit tail lamp access panel.
  6. Close luggage compartment.

FRONT FOG LAMPS – COUPE

Service Repair No. 86.40.96

Remove

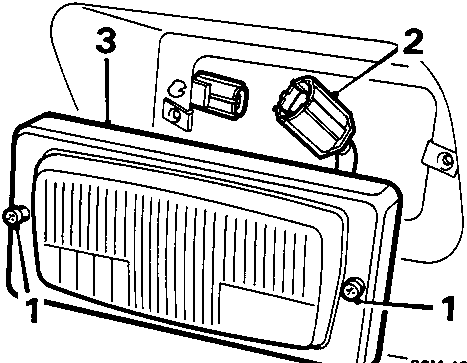

Diagram showing the front fog lamp assembly (1) with its mounting screws (2) and electrical multiplug connector (3).
  1. Remove 2 screws and release fog lamp assembly from bumper.
  2. Disconnect multiplug and release multiplug clip from bumper.
  3. Remove fog lamp assembly.
