Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.45.29

Remove

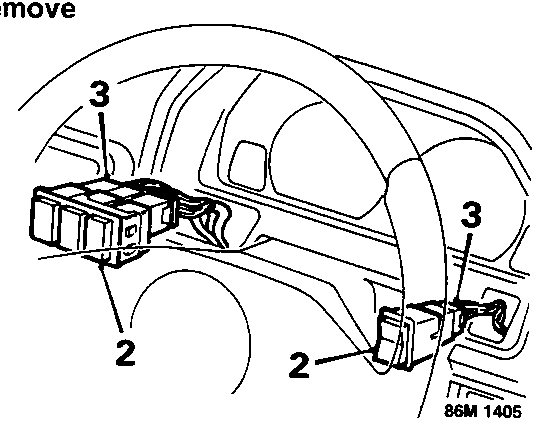

Diagram showing switch assembly and instrument cowl with callout numbers 2 and 3
  1. Carefully insert a flat blade between the switch assembly and instrument cowl to release the switch retaining clips.
  2. Release switches from instrument cowl.

CAUTION: To prevent damage occuring to the instrument cowl, place a soft cloth under the flat blade.

  1. Disconnect switch connectors if switches are to be removed.

Hazard warning light switch – illumination bulb

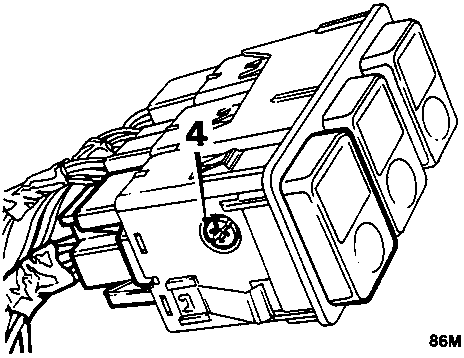

Diagram of hazard warning light switch with callout number 4
  1. Turn bulb holder 90° anti – clockwise to release, remove bulb.

Switch illumination and indicator bulbs

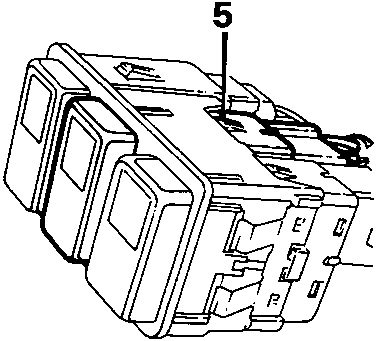

Diagram of switch illumination and indicator bulbs with callout number 5
  1. Depress 2 clips and slide switch from housing.

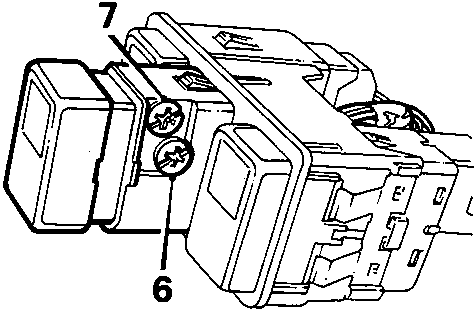

Diagram of switch housing with callout numbers 6 and 7
  1. Illumination bulb: Turn bulb holder 90° anti – clockwise to release, remove bulb.
  2. Indicator bulb: Turn bulb holder 90° anti – clockwise to release, remove bulb.

Refit

  1. Fit new bulb to switch, turn holder 90° clockwise to secure in position.
  2. Slide switch into housing.
  3. Connect switch connectors if disconnected.
  4. Fit switches into instrument cowl.
