REAR SPEAKER – CABRIOLET

Service Repair No. 86.50.12

Remove

Illustrates removal of front bumper cover on vehicle

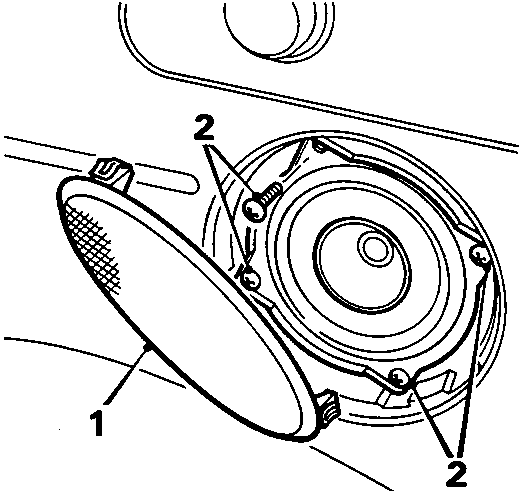

Diagram showing speaker grille and fixing screws on rear quarter trim panel
  1. Carefully lever speaker grille away from rear quarter trim panel and remove speaker grille.
  2. Remove speaker fixing screws and release speaker from trim panel.

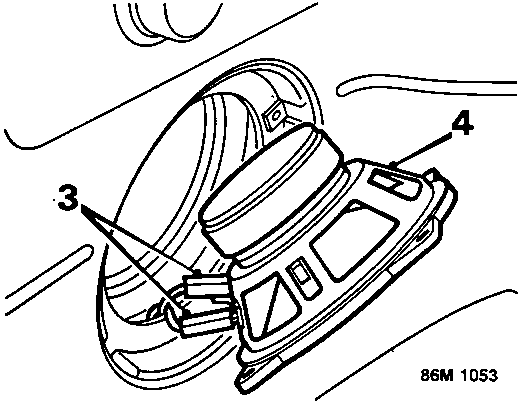

Diagram showing Lucar connectors and speaker being removed from trim panel
  1. Remove Lucar connectors from speaker.
  2. Remove speaker.

Refit

  1. Fit Lucar connectors to speaker and position speaker in rear quarter trim panel.
  2. Fit speaker securing screws.
  3. Fit speaker grille.

REAR SPEAKER – COUPE

Service Repair No. 86.50.12

Remove

  1. Remove rear shelf trim, see BODY – Repairs.

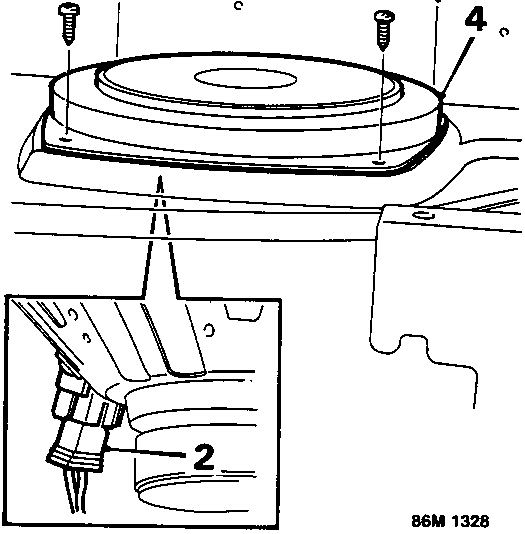

Diagram showing speaker secured to rear shelf platform with screws and multiplug connection
  1. Disconnect multiplug from speaker.
  2. Remove 4 screws securing speaker to rear shelf platform.
  3. Remove speaker from rear shelf platform.

Refit

  1. Fit speaker to rear shelf platform, ensuring that wires are placed over cut – out in speaker aperture.
  2. Secure speaker with screws.
  3. Connect multiplug to speaker.
  4. Fit rear shelf trim, see BODY – Repairs.
