ElectricalRemove

Service Repair No. 86.40.49

Remove

Car workshop manual diagram showing brake line connection point

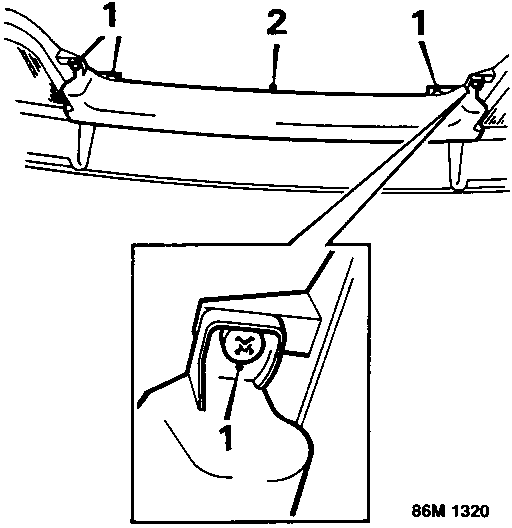

Diagram showing removal of screws securing radiator grille to headlamps, labeled 1 and 2.
  1. Remove 4 screws securing radiator grille to headlamps.
  2. Remove radiator grille.

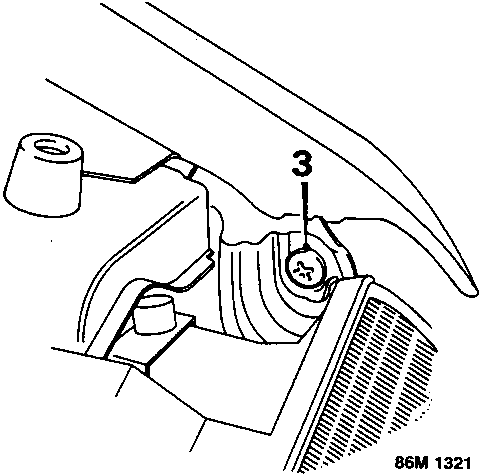

Diagram showing removal of screw securing front indicator lamp to wing valance, labeled 3.
  1. Remove screw securing front indicator lamp to wing valance.
  2. Release front indicator lamp from wing valance.

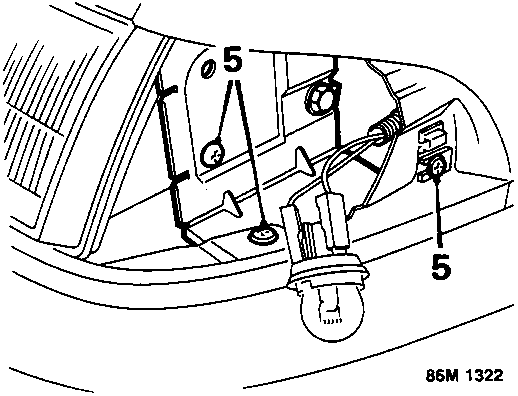

Diagram showing removal of 3 screws securing headlamp to wing valance, labeled 5.
  1. Remove 3 screws securing headlamp to wing valance.

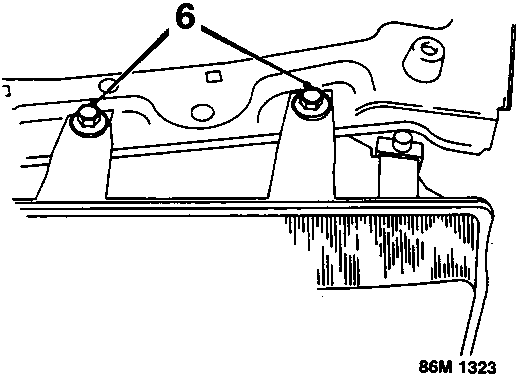

Diagram showing removal of 2 bolts securing headlamp to bonnet platform, labeled 6.
  1. Remove 2 bolts securing headlamp to bonnet platform.

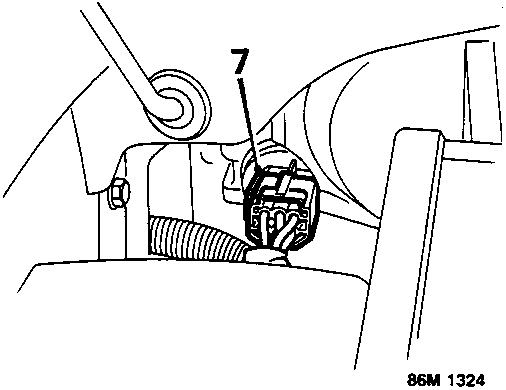

Diagram showing disconnecting multiplug from headlamp, labeled 7.
  1. Disconnect multiplug from headlamp.
  2. Coupe models with air conditioning: Remove front fog lamp for access to lower headlamp fixing, see Front fog lamps – Coupe.
