ElectricalNumber plate lamp

Refit

  1. Connect fog lamp multiplug and secure multiplug clip to bumper.
  2. Fit fog lamp assembly and tighten screws.

NUMBER PLATE LAMP

Service Repair No. 86.40.86

Remove

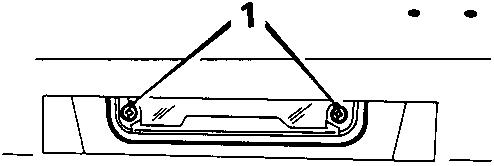

Diagram showing number plate lamp secured by two screws (1) to the body

86M 1313

  1. Remove 2 screws securing lamp to body.

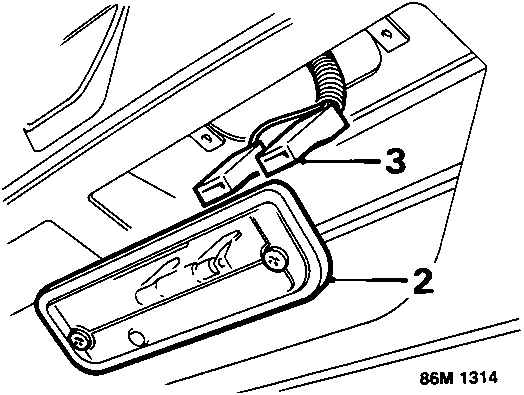

Diagram showing number plate lamp assembly with Lucar connectors (3) and release mechanism (2)

86M 1314

  1. Release lamp from body recess.
  2. Disconnect 2 Lucar connectors from lamp.
  3. Remove lamp assembly.

Refit.

  1. Connect Lucar connectors to lamp assembly.
  2. Position lamp assembly to body recess.
  3. Fit and tighten screws, securing lamp to body.

LUGGAGE COMPARTMENT LAMP ASSEMBLY

Service Repair No. 86.45.16

Remove

  1. Open luggage compartment.

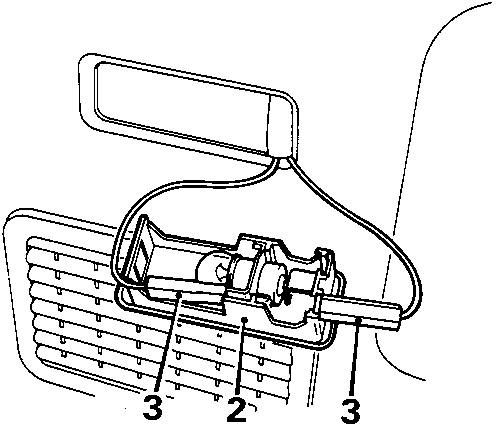

Diagram showing luggage compartment lamp assembly connected to side carpet with Lucar connectors (2, 3)

8RM 0430

  1. Release luggage compartment lamp from side carpet, right hand side.
  2. Disconnect 2 lamp Lucars.
  3. Remove lamp assembly.

Refit

  1. Connect lamp Lucars.
  2. Position and secure lamp to side carpet, right hand side.
  3. Close luggage compartment.
