Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.50.18

Note: The aerial coaxial cable incorporates a 150 pf capacitor in series with signal line. This means that the cable would appear to be open circuit if tested with a continuity meter.

Remove

  1. Remove luggage compartment cover.
  2. Remove headlining rear finisher, see BODY – Repairs.

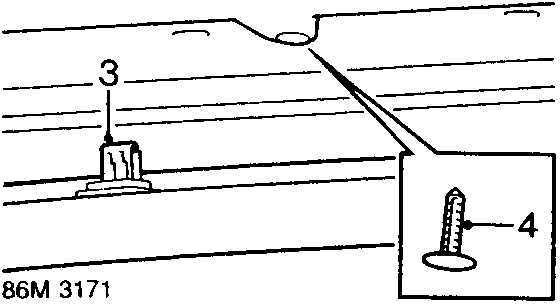

Diagram showing the location of the LH and RH 'D/E' post trim finishers (3) and the rear headlining retaining studs (4) inside the luggage compartment area.
  1. Release LH and RH 'D/E' post trim finishers from body.
  2. Remove LH and RH rear headlining retaining studs.

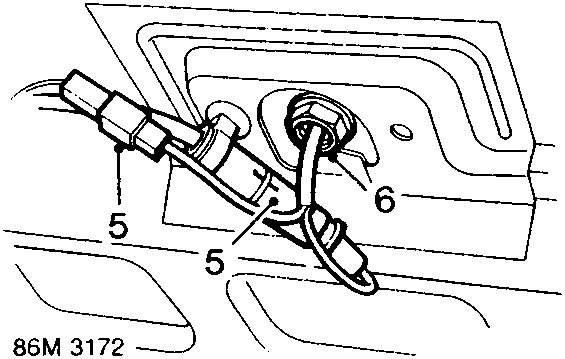

Diagram showing the connection of the aerial coaxial lead (5) and power lead (5) to the aerial base (6) mounted on the roof panel.
  1. Disconnect aerial coaxial lead and power lead.
  2. Remove nut securing aerial to roof panel.

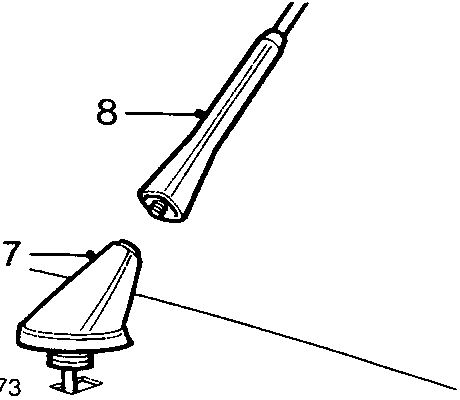

Diagram showing the removal of the aerial mast (8) from the aerial body (7).
  1. Remove aerial.
  2. Remove aerial mast.

Refit

  1. Fit aerial mast.
  2. Fit aerial, ensuring that seal is correctly positioned, and secure with nut.
  3. Connect coaxial and power leads.
  4. Fit headlining retaining studs.
  5. Secure LH and RH 'D/E' post trim finishers to body.
  6. Fit headlining rear finisher, see BODY – Repairs.
  7. Refit luggage compartment cover.
