ElectricalRemove

Service Repair No. 86.26.25

Remove

  1. Remove interior lamp assembly, see Roof lamp assembly.

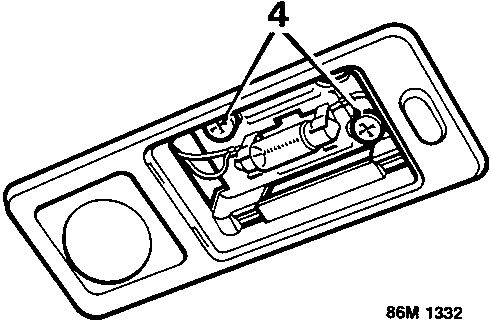

Diagram shows interior light switch assembly with screws and wiring

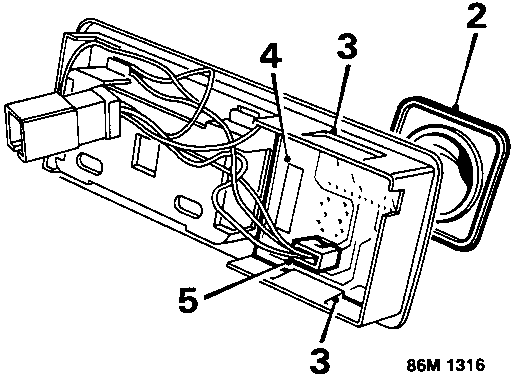

Diagram of the CDL infra-red receiver assembly showing components labeled 2, 3, 4, and 5 with code 86M 1316

Cabriolet models

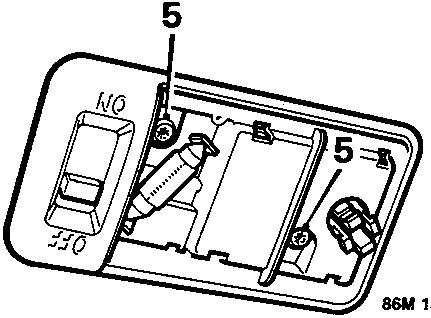

Diagram shows switch assembly with screw and connector details

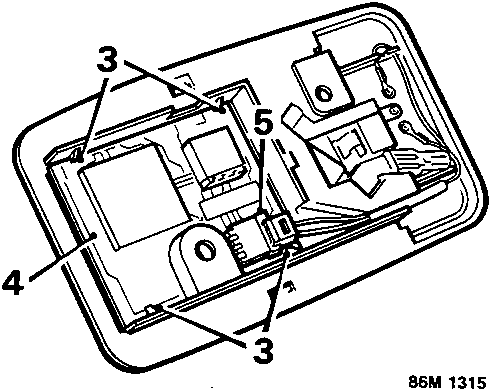

Diagram of the infra-red receiver unit within the lamp housing showing components labeled 3, 4, and 5 with code 86M 1315

Other models

  1. Cabriolet models : Remove cover from infra – red receiver.
  2. Release clips securing infra – red receiver to lamp assembly.
  3. Release infra – red receiver.
  4. Disconnect multiplug and remove receiver.

Refit

  1. Connect multiplug and secure receiver in lamp assembly.
  2. Cabriolet models: Fit cover to infra – red receiver.
  3. Fit interior lamp assembly, see Roof lamp assembly.
