Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.50.15

Remove

  1. Remove front door trim pad, see BODY – Repairs.

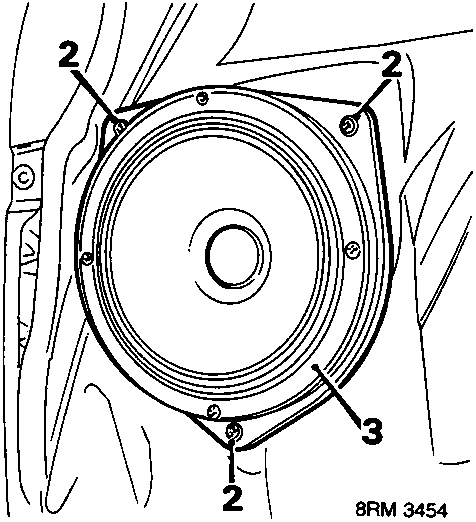

Diagram of a speaker mounted in a door panel with callout numbers 2 and 3
  1. Remove 3 screws, speaker to door.
  2. Release speaker.

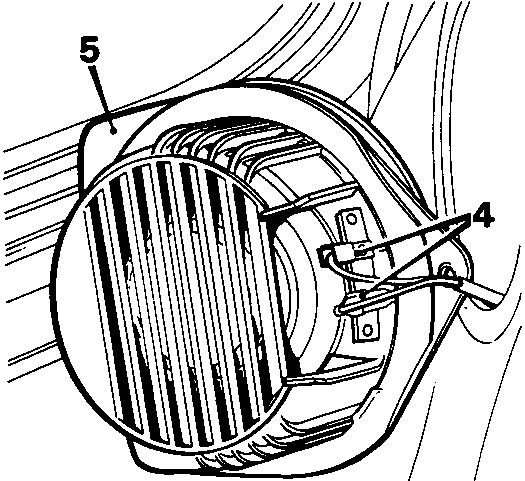

Diagram showing the back of a speaker with wiring connectors and callout numbers 4 and 5
  1. Disconnect 2 speaker Lucars.
  2. Remove speaker.

Refit

  1. Position speaker.
  2. Connect speaker Lucars.
  3. Align speaker to door.
  4. Fit and tighten screws, speaker to door.
  5. Fit front door trim pad, see BODY – Repairs.

REAR SPEAKER

Service Repair No. 86.50.12

Remove

  1. Open luggage compartment.

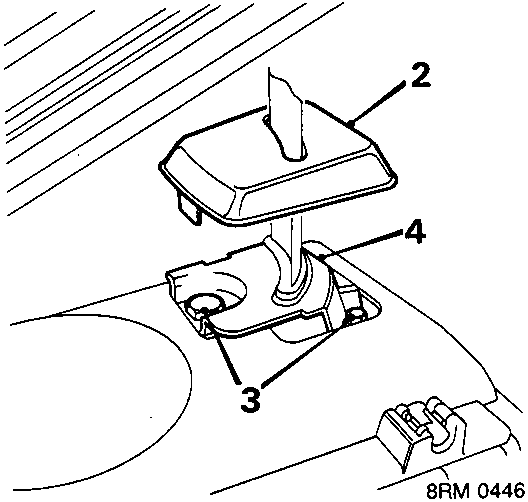

Diagram of a seat belt upper guide assembly with callout numbers 2, 3, and 4
  1. Release cover from seat belt upper guide.
  2. Remove 2 bolts, seat belt upper guide to body.
  3. Move guide clear.

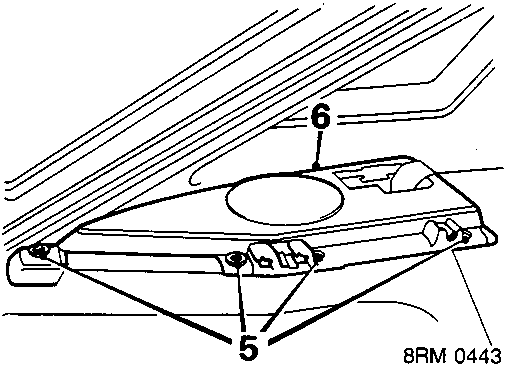

Diagram of a rear speaker grille attached to the body with callout number 6
  1. Remove 4 screws, speaker grille to body.
  2. Release grille from retaining clip.
  3. Move grille clear to obtain access to speaker.
