Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual26 · Electrical
26 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ElectricalRemove

Service Repair No. 86.10.02/20

Remove

  1. Open bonnet.
  2. Disconnect battery earth lead.

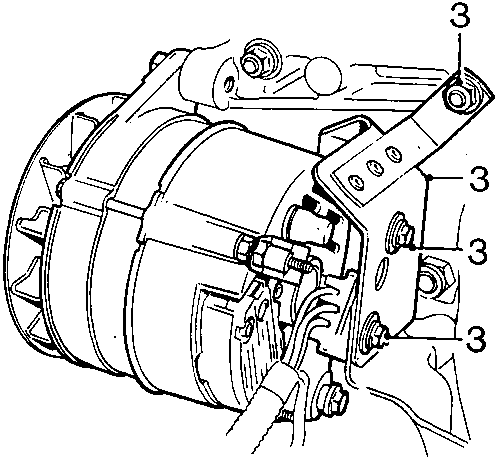

Alternator with heatshield and mounting bolts
  1. If fitted: Remove nut and 2 bolts securing heatshield, remove heatshield.

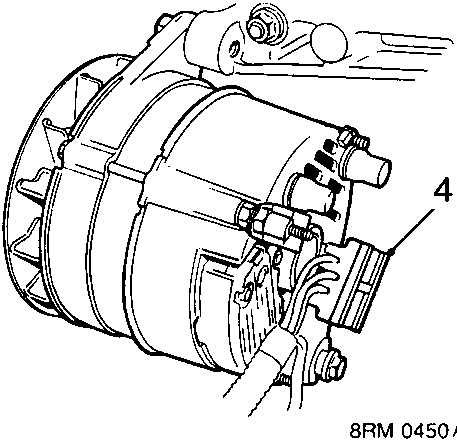

Alternator multiplug connector
  1. Remove multiplug.

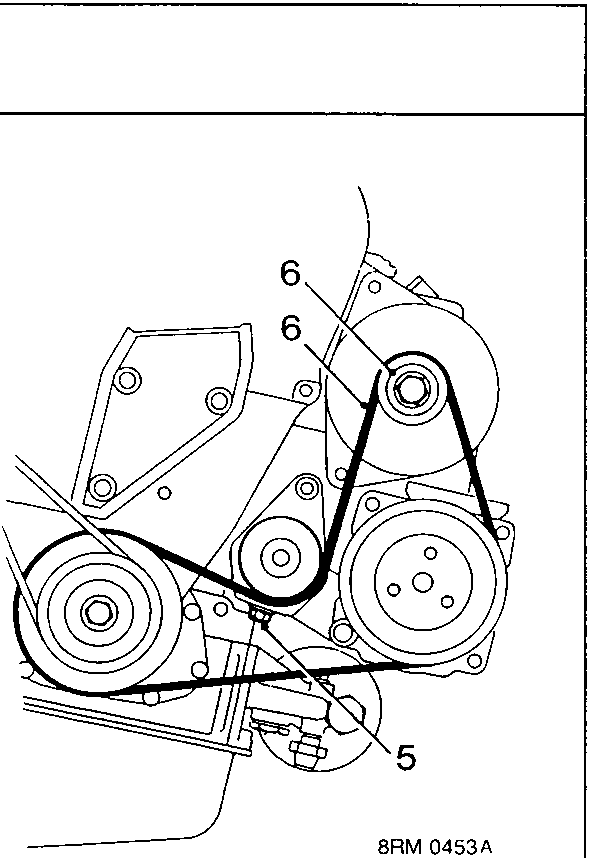

Alternator belt tensioner and pulley arrangement
  1. Slacken alternator belt tension bolt.
  2. Release belt from alternator pulley.

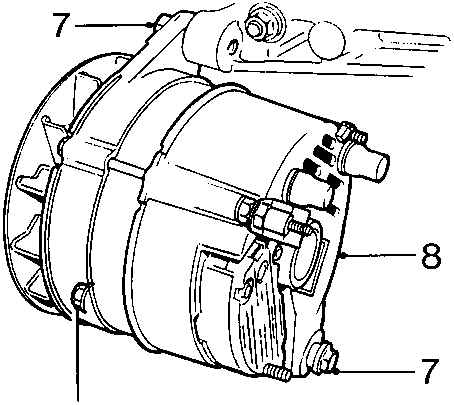

Alternator mounting bolts to engine
  1. Remove 3 bolts, alternator to engine.
  2. Remove alternator.
Alternator pulley and centre shaft
  1. Hold alternator centre shaft.
  2. Remove pulley locknut.
  3. Remove pulley.
