145 electrical system diagnosisDis-assembly · page 2 of 3

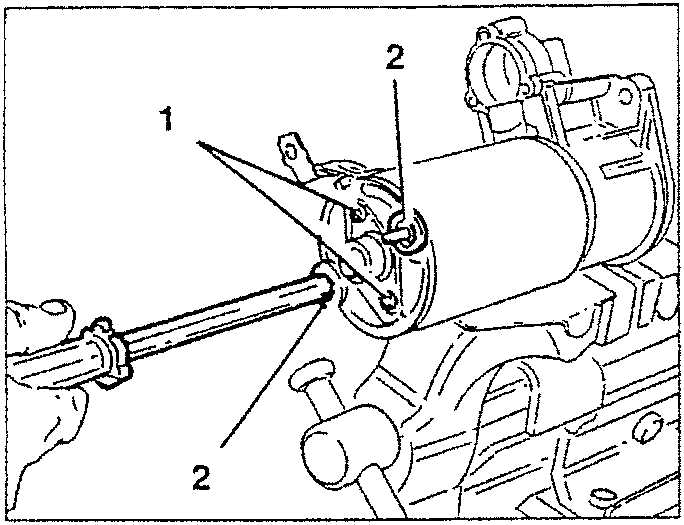

1. Slacken the two screws fastening the dust cover without removing them.
2. Slacken and remove the two thru screws.

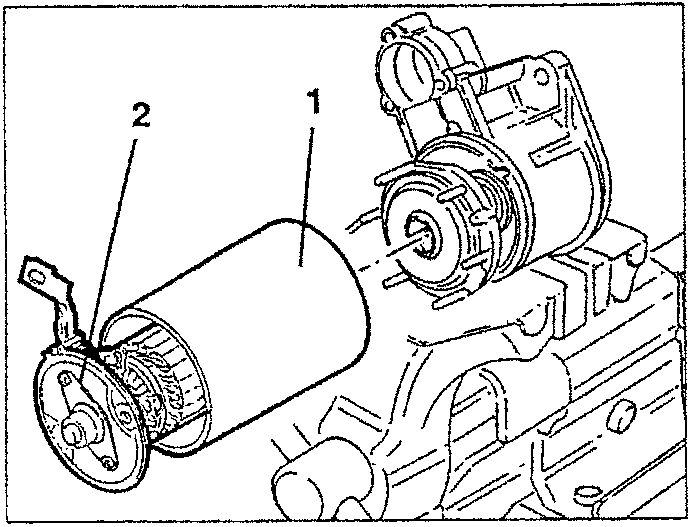

1. Remove the pole frame complete with rotor and collector side support.
2. Press the rotor carefully from the pole frame and at the same time push the seal out of the clamp.

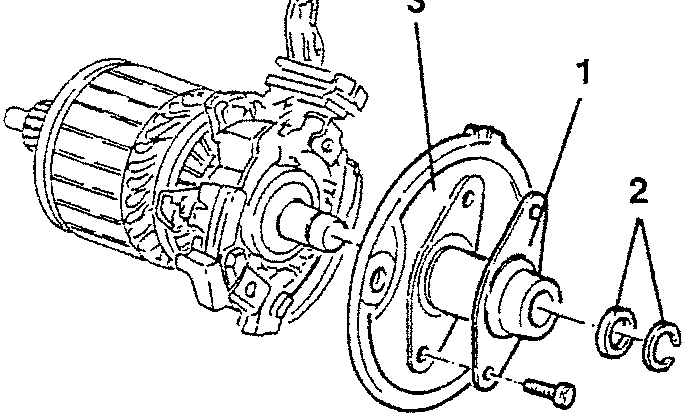

1. Completely slacken the fastening screws and remove the dust guard.
2. Remove the rest and compensation washers.
3. Remove the collector side support.

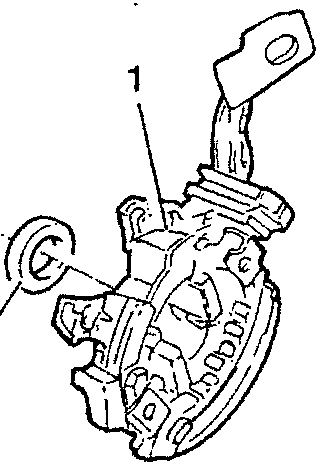

1. Remove the brush holder plate from the rotor.
2. Remove the felt seal.

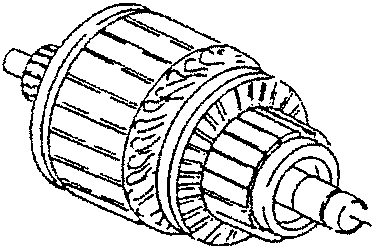

• Remove the rubber pad using a screwdriver.

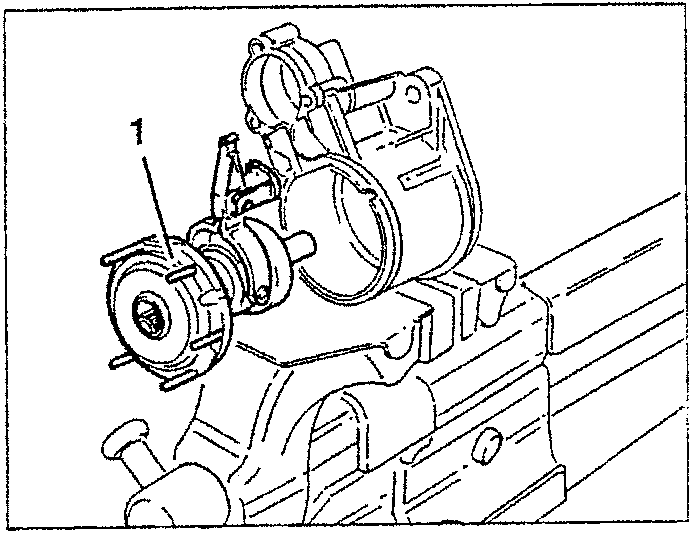

1. From the drive side support remove the spur gear with transmission and fork levers.

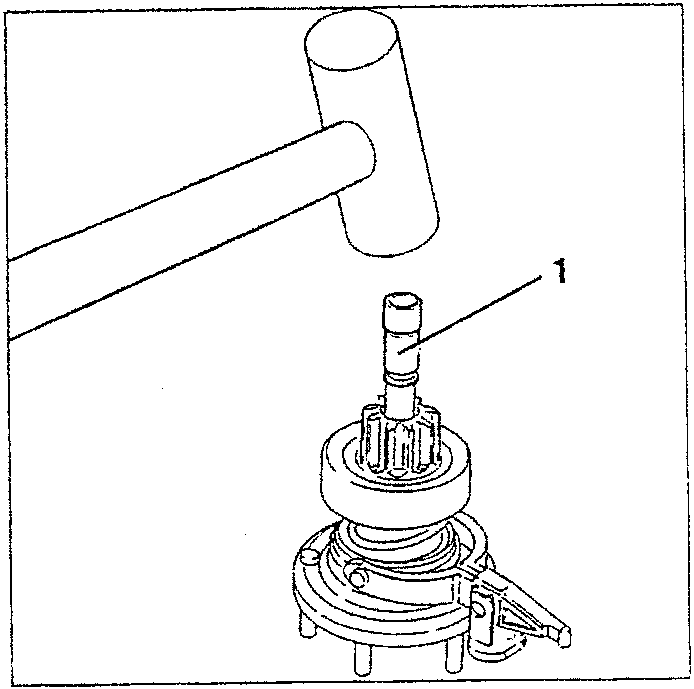

1. Hammer the starter coupling stop ring with a suitable bush and rubber mallet.
