Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Dis-assembly (page 3 of 3)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Electrical components
145 electrical system diagnosisDis-assembly · page 3 of 3
  1. Using suitable pliers remove the split ring.
  2. Remove the stop ring.
  3. Remove the starter coupling from the reversing shaft.

CAUTION: Avoid damaging the reversing shaft when removing the split ring. If necessary, accurately deburr the reversing shaft groove, otherwise the gear bush will be damaged.

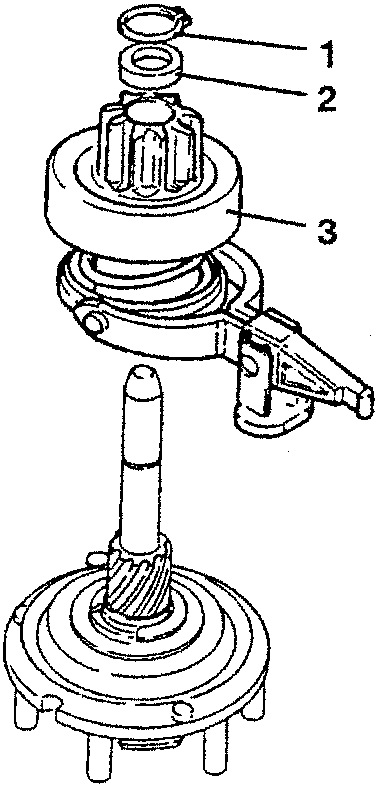

Diagram showing components 1, 2, and 3 of a starter coupling assembly with a reversing shaft below it.
  1. If necessary, remove the fork levers from the starter coupling.

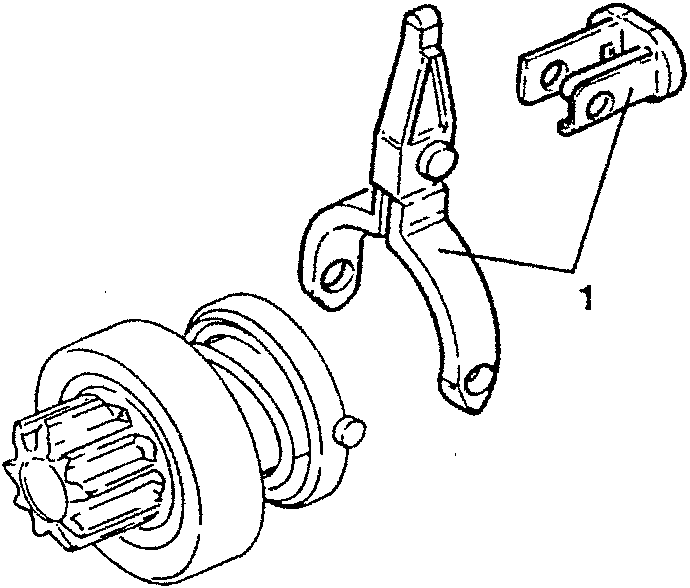

Diagram showing a starter coupling with two fork levers detached.
  1. Remove the split ring fastening the reversing gear.

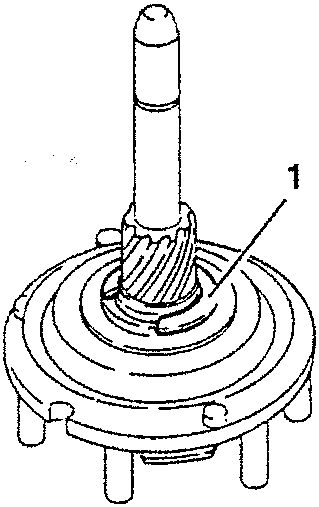

Diagram showing a reversing gear with a shaft and numbered part 1.
  1. Remove the protection plate from the differential drive gear.

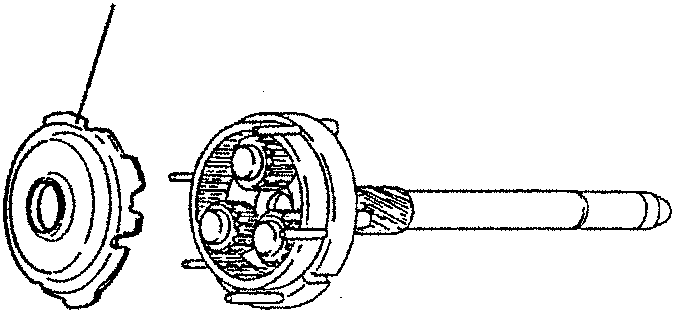

Diagram showing a differential drive gear with a shaft and numbered part 1.
  1. Separate the differential drive gear from the reversing gear.

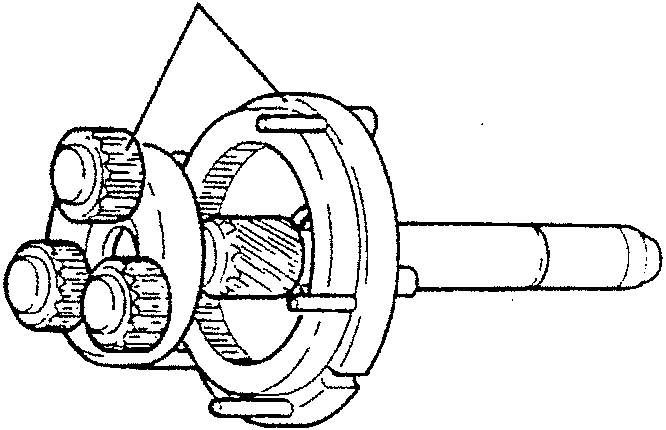

Diagram showing a differential drive gear separated from a reversing gear, with numbered part 1.
  • If necessary, using special punches replace the bushes on the collector side support and drive side support..
