Freelander Service Procedures
EMISSION CONTROL
17-1-10 REPAIRS

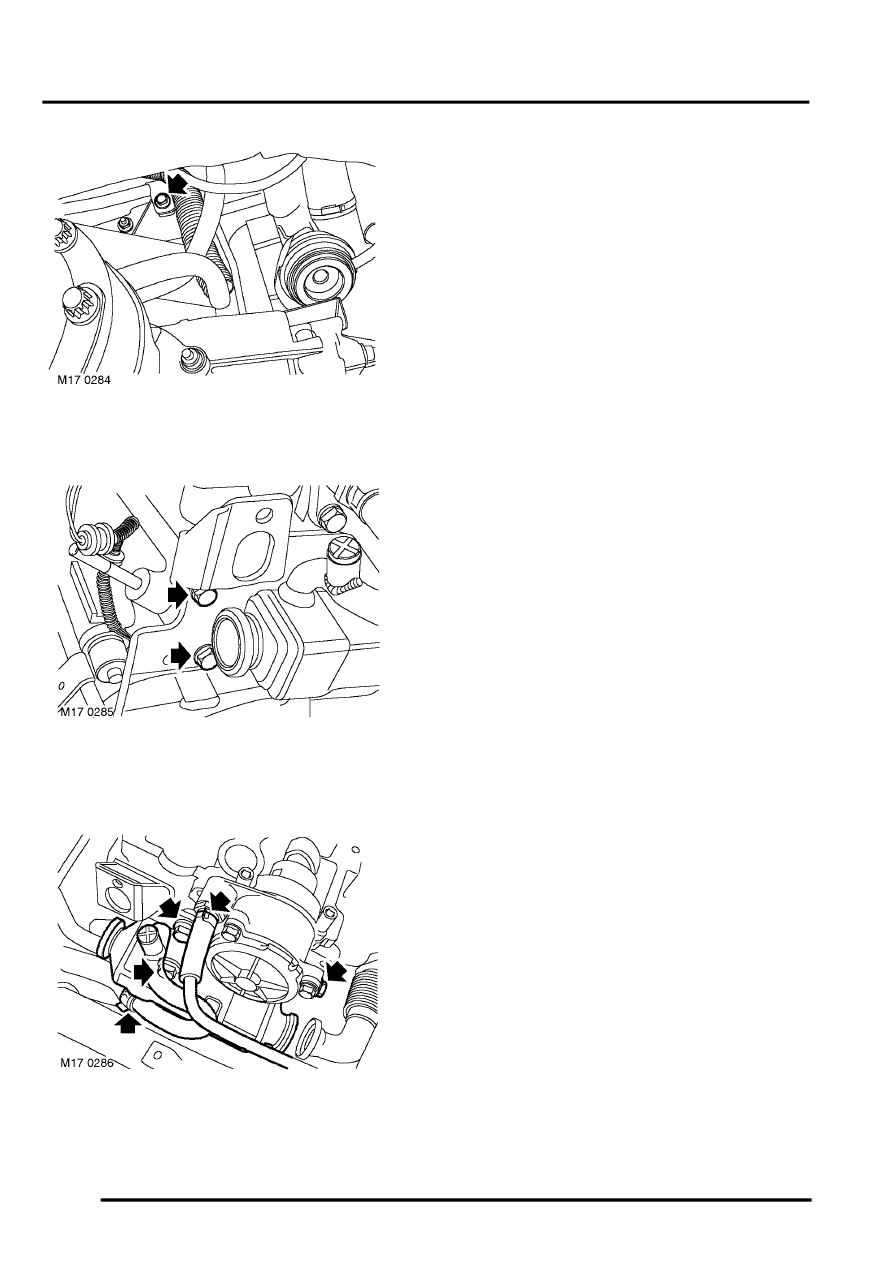

9. Remove bolt securing turbo outlet pipe to upper
coolant rail.
10. Remove 2 bolts securing pipe support bracket
to engine lifting bracket, remove support
bracket.
11. Release clip and remove vacuum hose.
12. Remove 3 bolts securing EGR cooler to
cylinder head and lifting bracket.
13. Lift EGR cooler from mounting and position a
container beneath coolant hoses.
14. Release clips and remove hoses from EGR
cooler allow coolant to drain.
15. Remove EGR cooler.
Refit
1. Position EGR cooler, connect coolant hoses
and fit clips.
2. Position EGR cooler to mounting, fit bolts and
tighten to 25 Nm (18 lbf.ft).
3. Position pipe support bracket to engine lifting
bracket, fit and tighten bolts to 25 Nm (18 lbf.ft).
4. Fit vacuum hose and tighten clip.
5. Fit bolt securing turbocharger pipe to coolant
rail and tighten to 25 Nm (18 lbf.ft).
6. Fit underbelly panel.
7. Fit bolt securing turbocharger outlet pipe to
support bracket and tighten to 10 Nm (7.5
lbf.ft).
8. Fit bolt securing fuel rails to support bracket
and tighten to 10 Nm (7.5 lbf.ft).
9. Align EGR pipe to cooler fit clamp, but do not
fully tighten until camshaft cover is refitted.
10. Fit EGR pipe clamp and tighten screw.
11. Fit camshaft cover.
ENGINE - Td4, REPAIRS, Gasket -
12. Connect battery earth lead.
13. Top up cooling system.
