EXTERIOR FITTINGS

76-2-14 REPAIRS

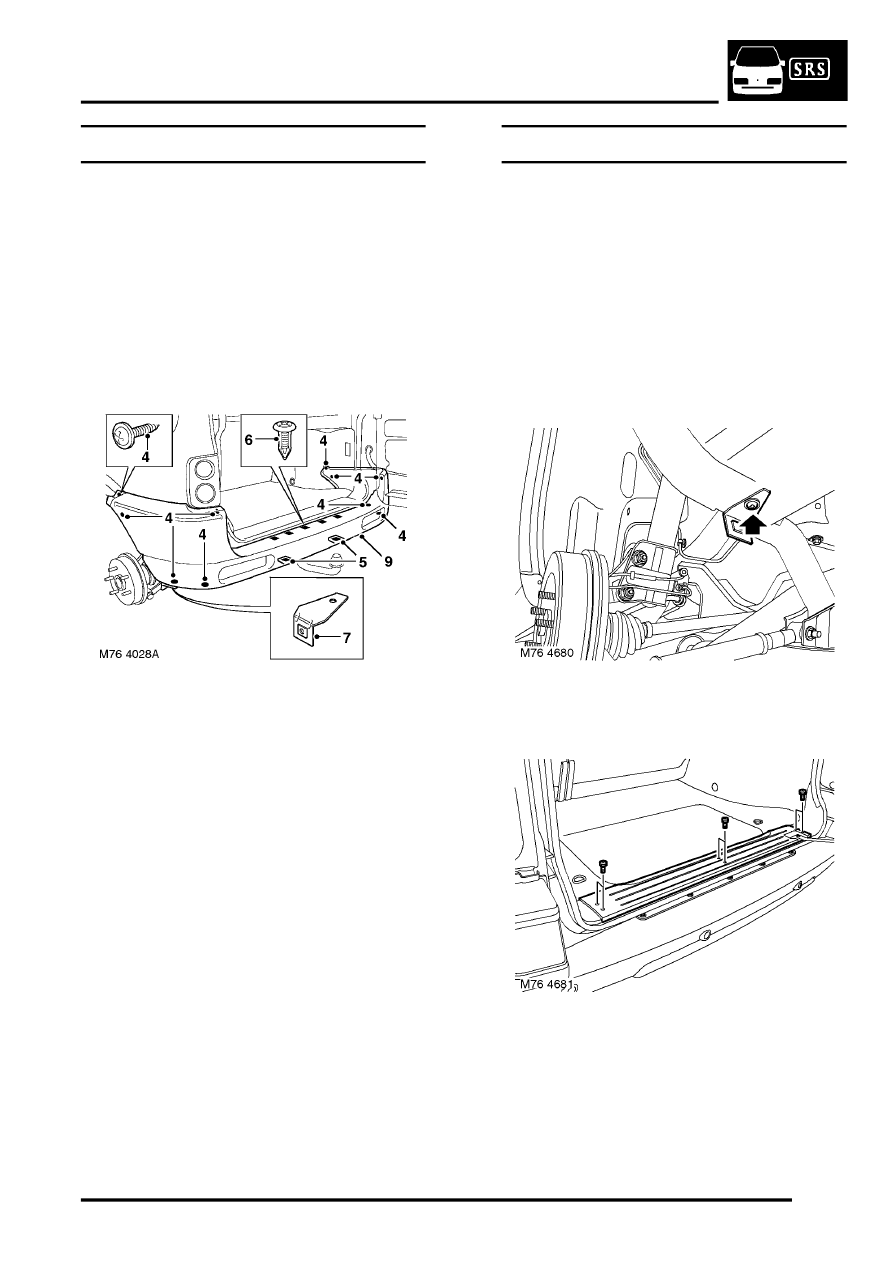

7. Release tailgate aperture seal to access

bumper valance to body retaining scrivets.

8. Remove 5 scrivets securing bumper valance to

body.

9. Remove 4 screws securing bumper valance to

body.

10. Remove 2 Torx bolts securing bumper valance

to bumper armature.

11. With assistance, release bumper valance and

parking aid sensor harness from body.

12. Remove parking aid sensor harness retaining

clip and disconnect multiplug.

13. Remove bumper valance.

NOTE: Do not carry out further dismantling if
component is removed for access only.

14. Remove both rear tail lamps.



 +

 LIGHTING, REPAIRS, Lamp

assembly - tail.

15. Disconnect multiplugs from 4 parking aid

sensors and release harness from 9 retaining
clips.

16. Remove parking aid harness from bumper

valance.

M76 4682
