Range Rover P38
CHASSIS AND BODY
7
REPAIR
CHASSIS CROSS MEMBER
Service repair no - 76.10.92

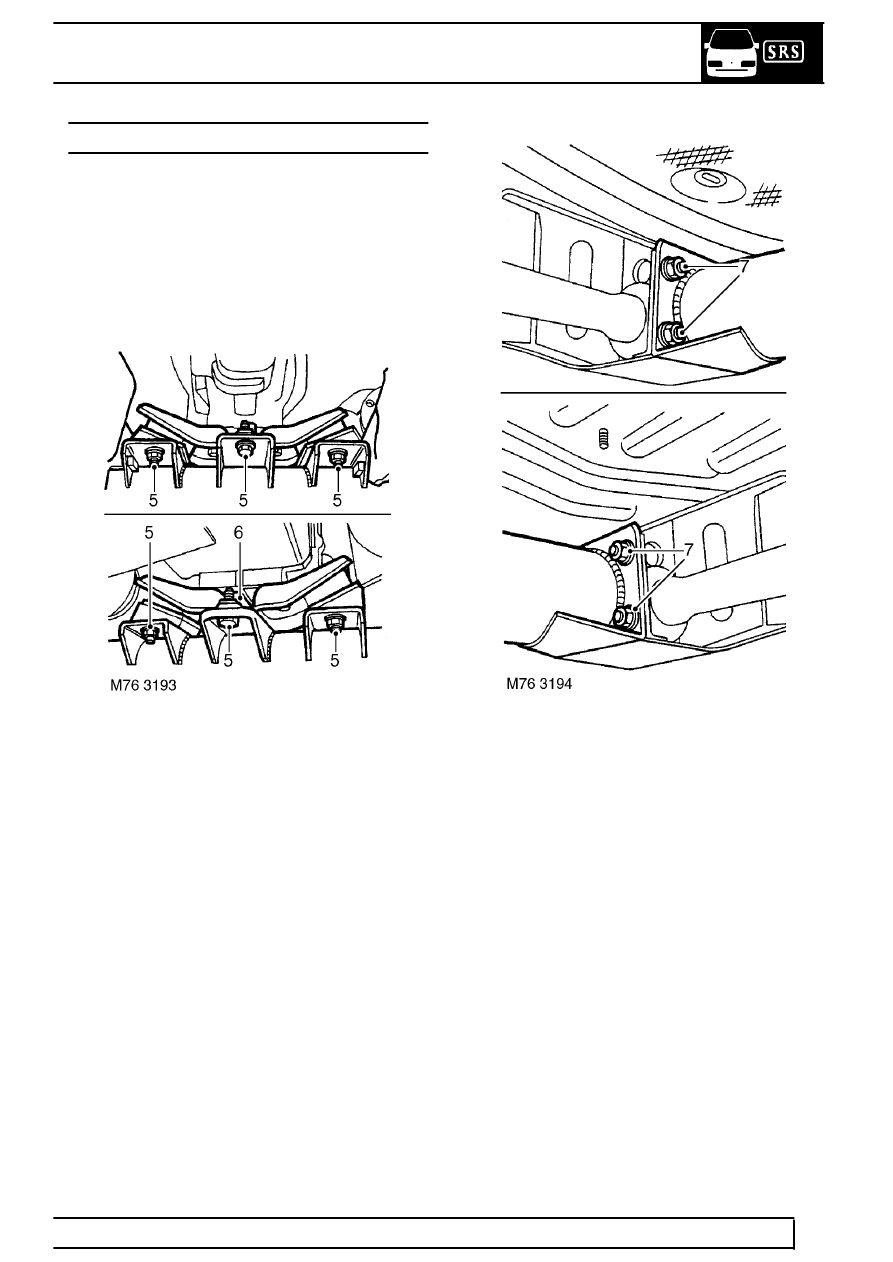

Remove
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Raise vehicle on 4 post ramp.
4. Support gearbox on a suitable jack.
5. Remove 4 nuts and 2 bolts securing gearbox
mounting to crossmember and discard nuts.
6. Remove gearbox snubber bar.
7. Remove 3 of 4 nuts and bolts securing each side
of crossmember to chassis.
8. With assistance, remove 2 remaining nuts and
bolts securing crossmember and remove
crossmember.
Refit
9. With assistance, fit crossmember and tighten
nuts and bolts to
45 Nm (33 lbf.ft).
10. Fit gearbox snubber bar and tighten bolts to
45
Nm (33 lbf.ft).
11. Fit new nuts securing gearbox mounting to
crossmember and tighten to
45 Nm (33 lbf.ft).
12. Remove support from gearbox.
13. Lower vehicle.
14. Connect battery earth lead.
15. Fit battery cover and secure with fixings.
