CHASSIS AND BODY

NEW RANGE ROVER

34

REPAIR

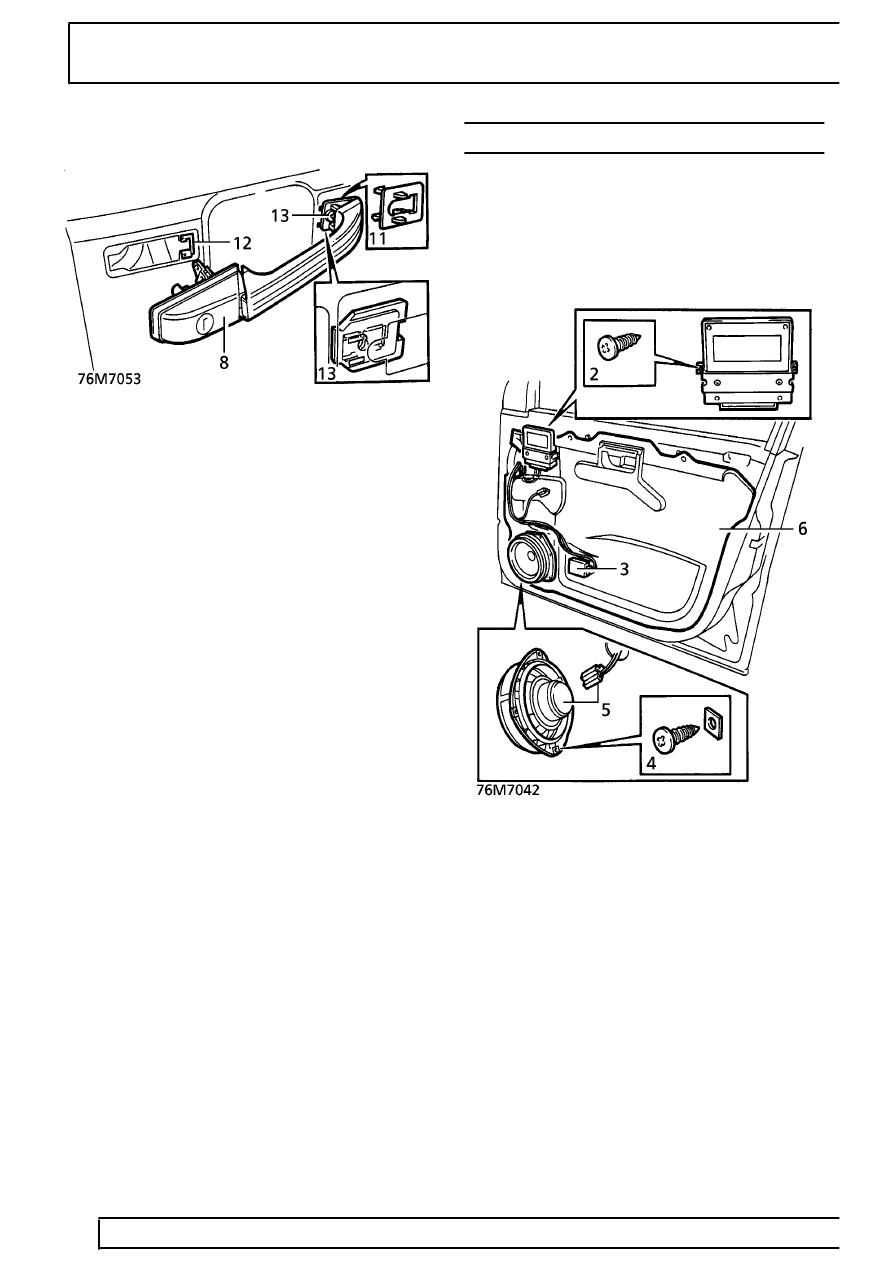

9. Remove handle from front fixing by pivoting rear

end of handle out.

10. Remove gasket from handle.
11. Remove rubber locking plate from door.
12. Remove plastic locking plate from door.
13. Remove screw securing mounting plate to door,

remove plate.

Refit

14. Clean handle and door mating faces.
15. Reverse removal procedure.

PLASTIC SHEET - FRONT DOOR

Service repair no - 76.34.26

Remove

1. Remove front door trim casing.

See this

section.

2. Remove 2 screws securing door outstation ECU.

3. Remove 2 screws securing speaker amplifier.
4. Remove 4 screws securing front door speaker.
5. Release speaker, disconnect multiplug.
6. Remove plastic sheet.

Refit

7. Reverse removal procedure.
