Range Rover P38
76
CHASSIS AND BODY
NEW RANGE ROVER
62
REPAIR
REAR SEAT BELT - LEFT HAND
Service repair no - 76.73.23
Remove
1. Remove parcel shelf support trim.
See this
section.
2. Remove ’D’ post lower trim.
See this section.
3. Remove cover and nut securing seat belt to
upper anchorage point.

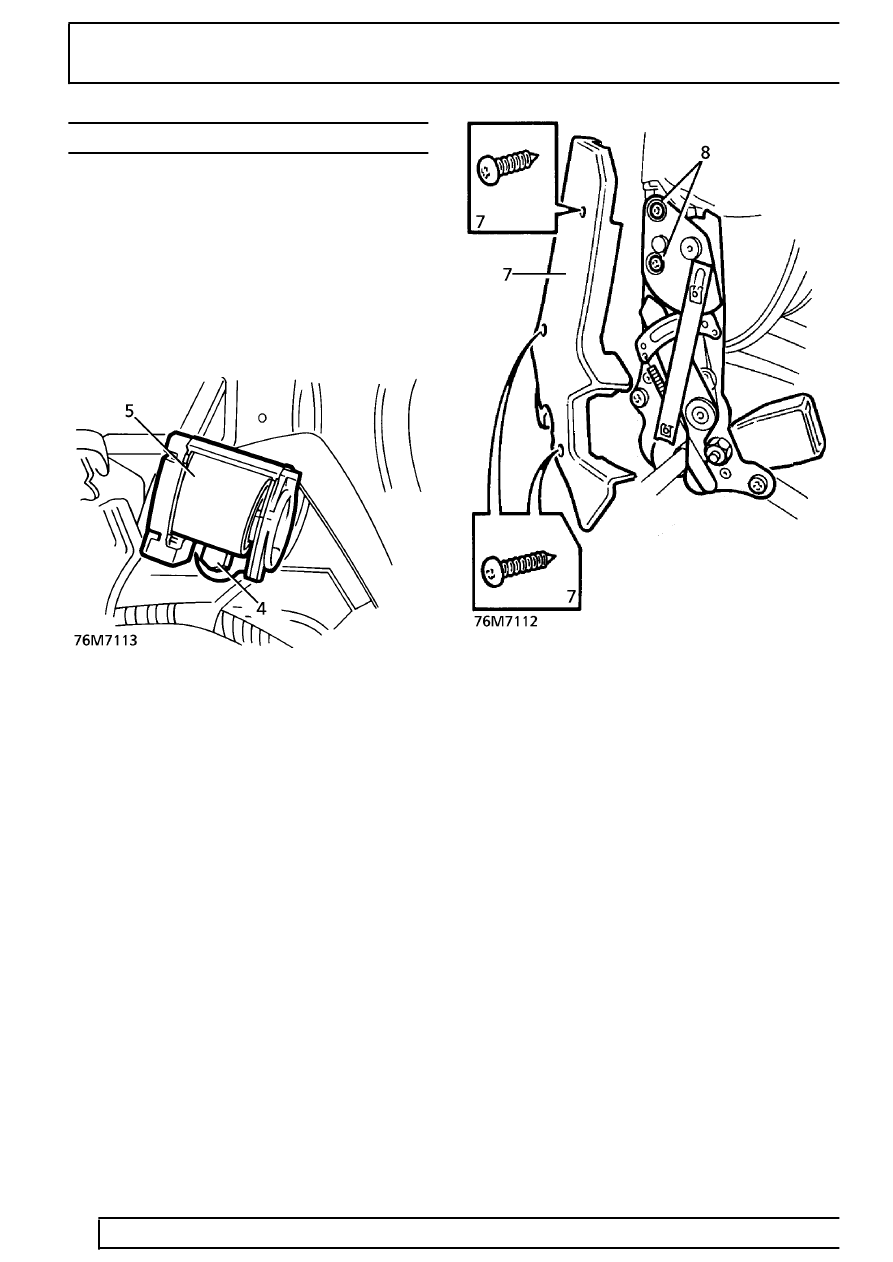

4. Remove bolt securing seat belt reel.
5. Remove seat belt reel.
6. Remove left hand rear seat.
See SEATS,
Repair.
7. Remove 3 screws securing squab hinge cover.
Remove cover.
8. Remove 2 bolts securing squab to cushion
assembly.
9. Remove squab from cushion assembly.
10. Remove bolt and wave washer securing stalk to
squab hinge.
11. Remove stalk. Collect plain washer.
Refit
12. Fit stalk to squab hinge. Secure with bolt.
Tighten to
35 Nm. (26 lbf.ft)
13. Position seat squab to cushion assembly.
Secure with bolts. Tighten to
45 Nm. (33 lbf.ft)
14. Refit squab hinge cover. Secure with screws.
15. Refit rear seat assembly.
See SEATS, Repair.
16. Position belt to upper anchorage point. Secure
with nut. Tighten to
25 Nm. (18 lbf.ft). Fit
cover.
17. Position seat belt reel. Secure with bolt. Tighten
to
35 Nm. (26 lbf.ft)
18. Fit ’D’ post lower trim.
See this section.
19. Fit parcel shelf support trim.
See this section.
