Range Rover P38
CHASSIS AND BODY
61
REPAIR

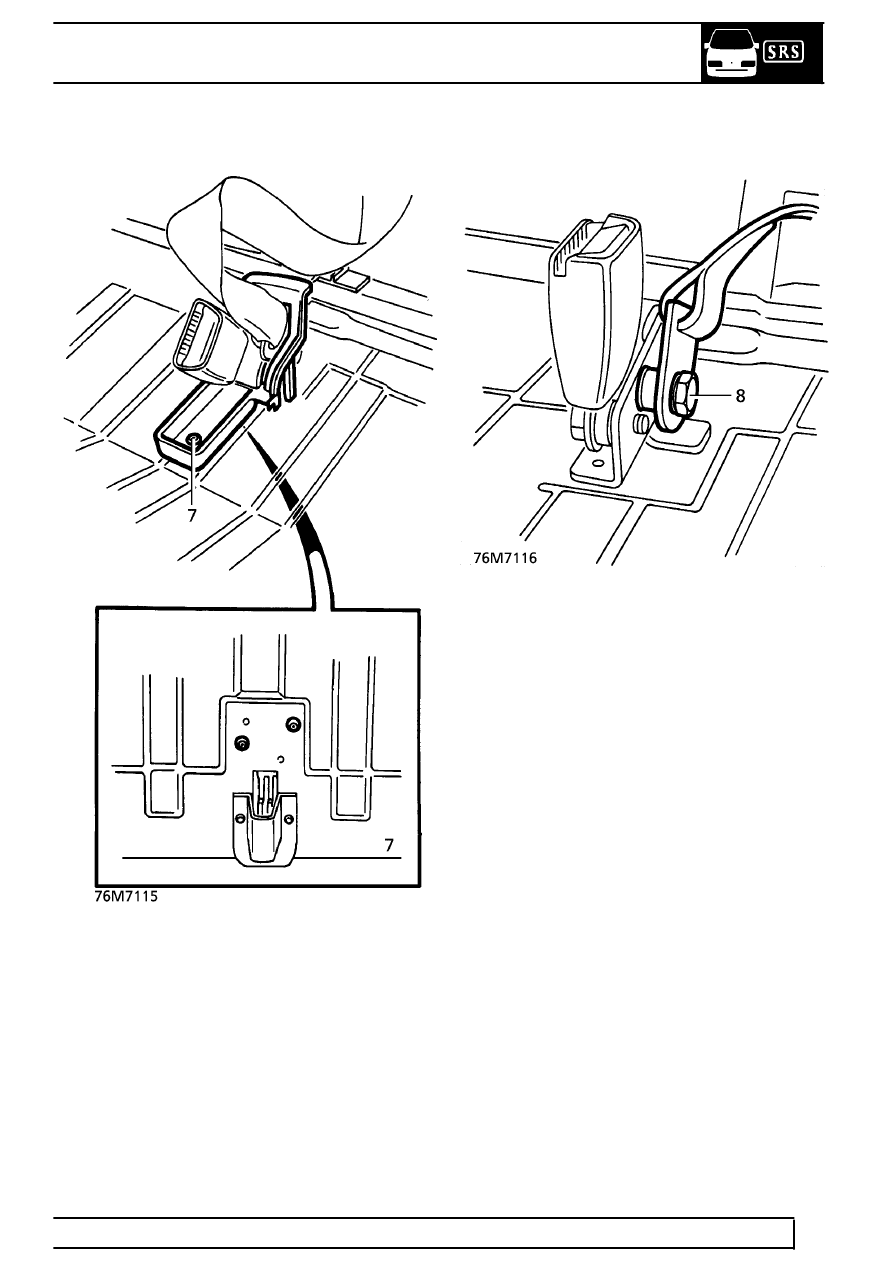

7. Remove 3 screws securing anchorage cover to
seat pan. Remove cover in 2 pieces.
8. Remove bolt securing seat belt to seat pan.
Remove belt, collect spacer.
Refit
9. Fit seat belt to seat pan. Secure with bolt and
spacer. Tighten to
35 Nm. (26 lbf.ft)
10. Fit seat belt anchorage cover. Secure with
screws.
11. Fit cushion assembly to seat pan. Secure
beaded edge of cover to seat pan flange.
12. Fit stalk to squab hinge. Secure with bolt.
Tighten to
35 Nm. (26 lbf.ft)
13. Position seat squab to cushion assembly.
Secure with bolts. Tighten to
45 Nm. (33 lbf.ft)
14. Refit squab hinge cover. Secure with screws.
15. Refit rear seat assembly.
See SEATS, Repair.
