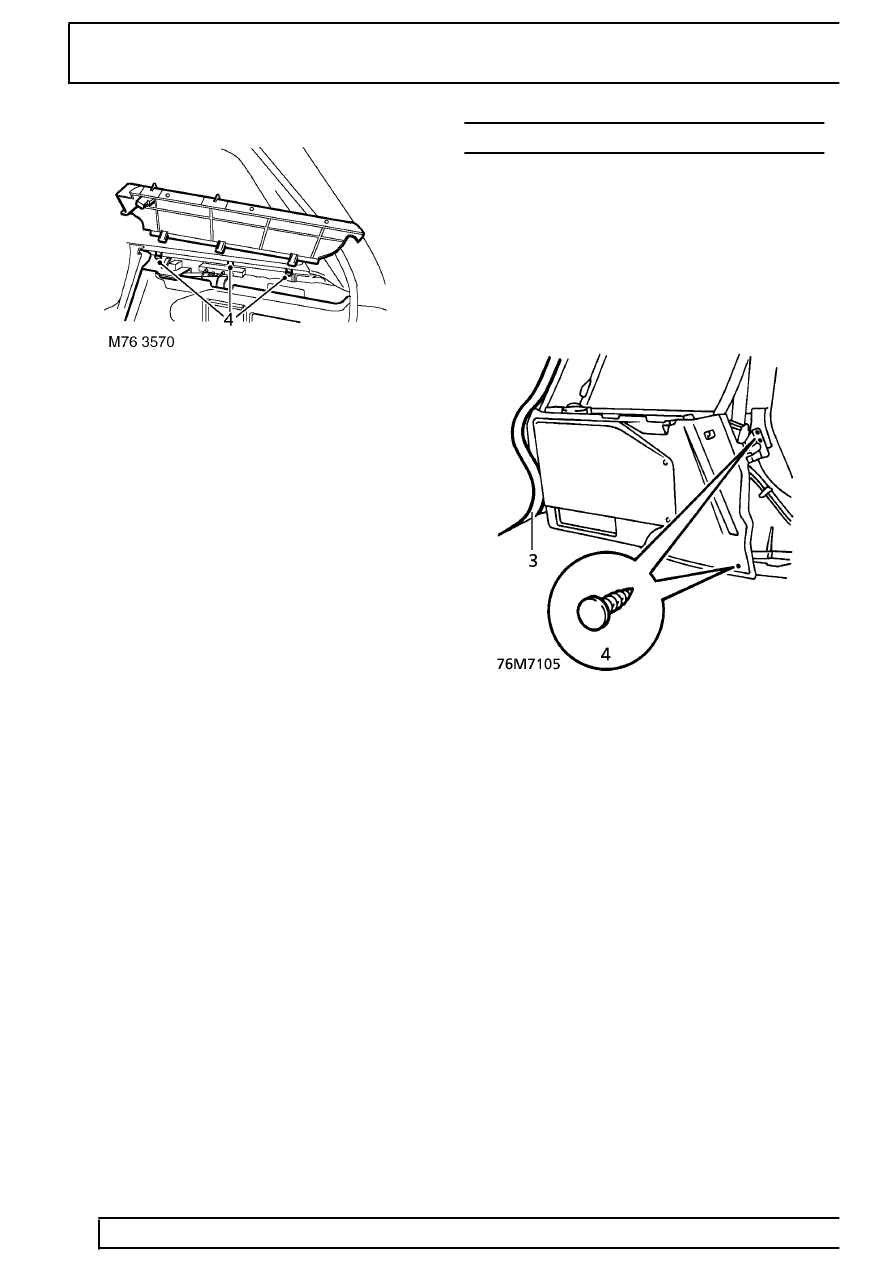

4. Release support tray from 3 clips and remove
tray.
Refit
5. Position support tray and secure clips.
6. Secure support tray to trim with studs and screw.
7. Fit parcel tray.
8. Reposition seats and secure catches.
PARCEL TRAY SUPPORT TRIM
Service repair no - 76.67.12 - RH
Service repair no - 76.67.09 - LH
Remove
1. Remove parcel tray support.
See this section.
2. Remove ’D’ post lower trim.
3. Release tailgate aperture seal from support trim
flange.
4. Remove 3 trim studs.
LH Trim Only
5. Remove CD autochanger.
See ELECTRICAL,
Repair.
6. Remove 2 nuts and 2 bolts securing sub-woofer
assembly.
