SUNROOF - WIND DEFLECTOR
Service repair no - 76.82.31

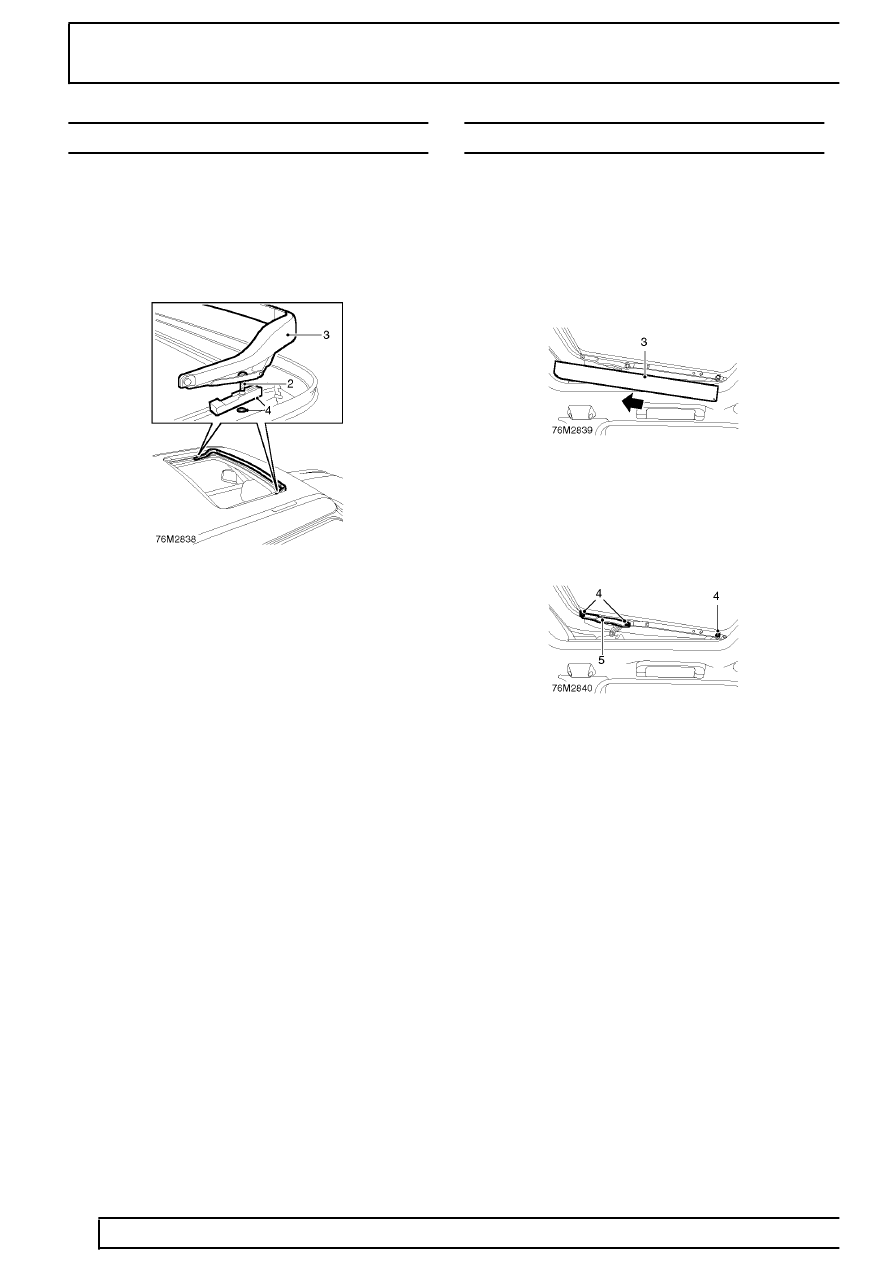

Remove
1. Open sunroof panel.
2. Remove 2 Torx screws securing wind deflector
to sunroof frame.
3. Remove wind deflector assembly.
4. Collect 2 spacer blocks and 2 nylon washers
from sunroof frame.
Refit
5. Position nylon washers and spacer blocks to
sunroof frame.
6. Align wind deflector assembly and secure with
Torx screws. Torque tighten Torx screws to
2 Nm (1.5 lbf.ft).
7. Close sunroof panel.
SUNROOF - PANEL
Service repair no - 76.82.05
Remove
1. Remove wind deflector.
See this section.
2. Tilt the sunroof panel.
3. Remove 2 mechanism covers by sliding
rearward.
4. Remove 4 Torx screws and 2 ’C’ clips,
connecting mechanism to sunroof panel.
5. Collect 2 slide brackets.
6. Release sunroof panel from locating pins.
7. Remove sunroof panel.
Refit
8. Lightly grease mechanism.
9. Position sunroof panel to locating pins.
10. Fit slide brackets.
11. Fit ’C’ clips and Torx screws, do not tighten at
this stage.
12. Adjust sunroof panel.
See Adjustment.
13. Fit wind deflector.
See this section.
