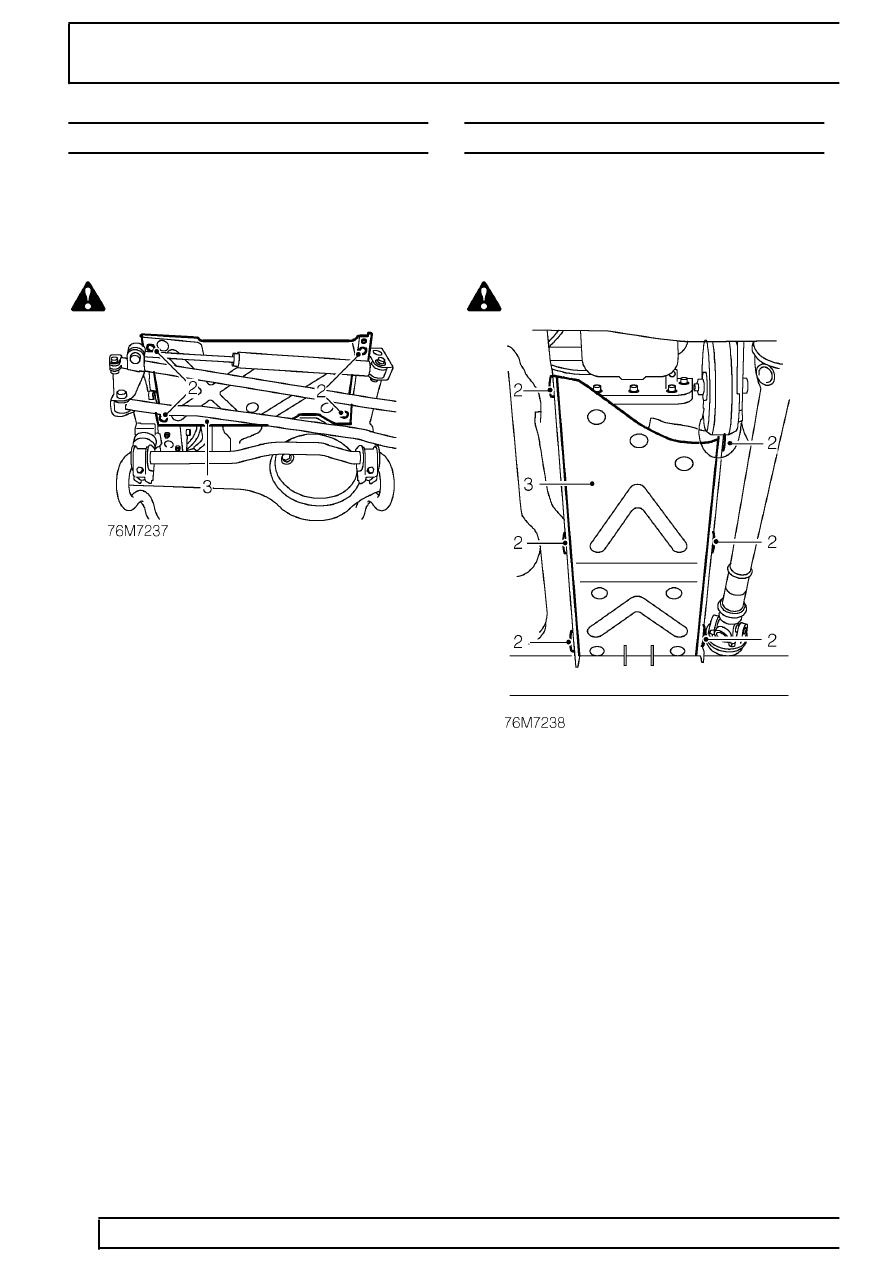

ENGINE ACOUSTIC COVER
Service repair no - 76.11.06
Remove
1. Raise front of vehicle.
WARNING: Support on safety stands.
2. Release 4 threaded fasteners securing engine
acoustic cover to chassis brackets.
3. Release acoustic cover from brackets and
manoeuvre past steering gear.
Refit
4. Fit acoustic cover to brackets and secure with
threaded fasteners.
GEARBOX LOWER ACOUSTIC COVER
Service repair no - 76.11.13
Remove
1. Raise front of vehicle.
WARNING: Support on safety stands.
2. Release 6 threaded fasteners securing lower
acoustic cover to side acoustic covers.
3. Remove lower acoustic cover.
Refit
4. Fit acoustic cover to side acoustic covers.
5. Tighten threaded fasteners securing lower cover
to side covers.
6. Remove stand(s) and lower vehicle.
