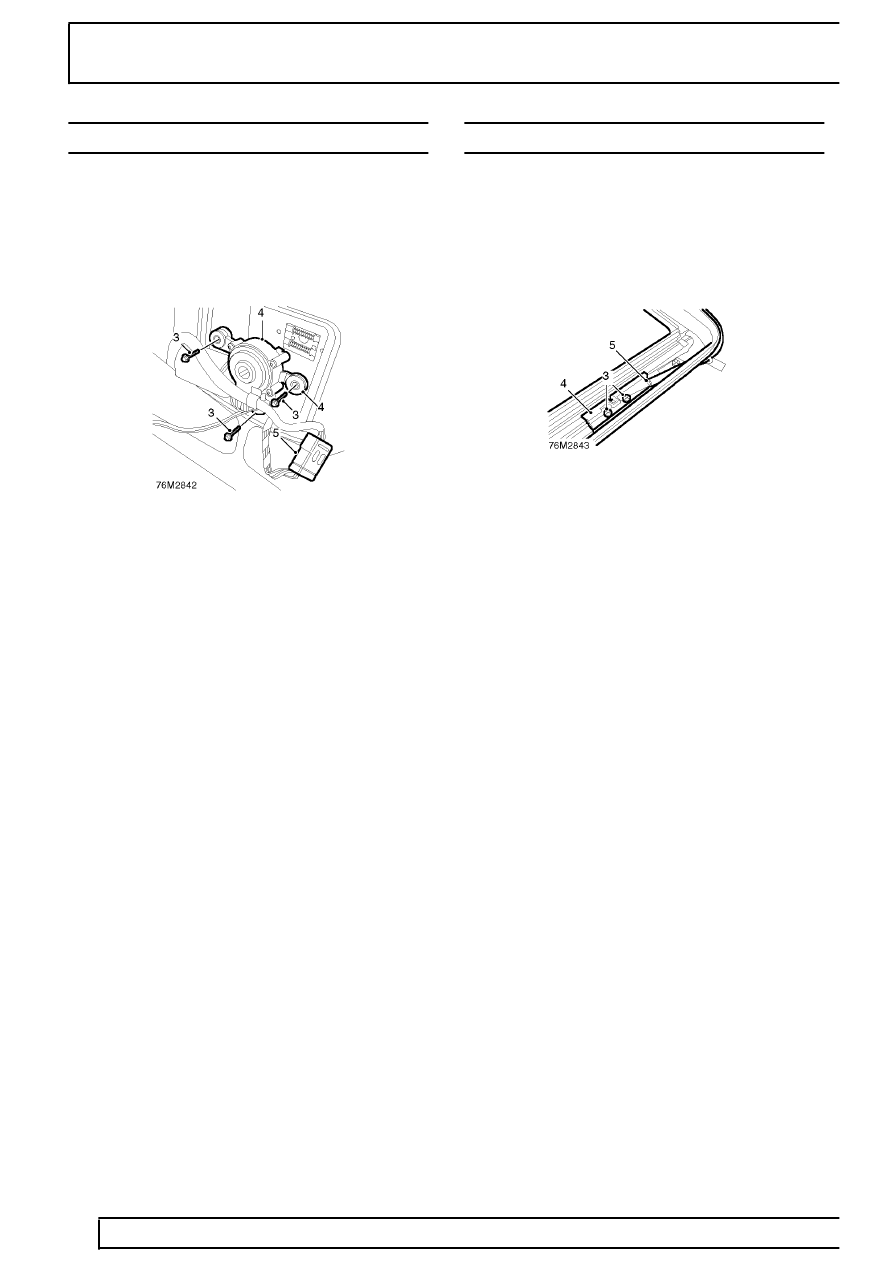

SUNROOF - MOTOR
Service repair no - 76.82.53
Remove
1. Close sunroof panel.
2. Remove front map/courtesy lamp.
See
ELECTRICAL, Repair.
3. Remove 3 screws securing sunroof motor to
mounting bracket.
4. Remove motor and collect spacers.
5. Remove sunroof motor multiplug from mounting
clip and disconnect multiplug.
Refit
6. If position of sunroof motor is not known,
synchronise motor to closed position before
fitment as follows:
Connect motor to motor multiplug. With ignition
in position I or II, operate sunroof switch to open
position. Press and hold sunroof switch to closed
position until motor stops.
7. Connect motor multiplug and secure to mounting
clip.
8. Fit spacers to motor.
9. Position motor to mounting bracket and secure
with screws. Torque tighten screws to
2 Nm (1.5
lbf.ft).
10. Fit front map/courtesy lamp.
See ELECTRICAL,
Repair.
SUNROOF - CABLE
Service repair no - 76.82.14
Remove
1. Remove sunroof panel.
See this section.
2. Remove sunroof motor.
See this section.
3. Remove 2 screws securing the cable locator.
4. Remove cable locator.
5. Remove cable from slide.
6. Withdraw cable from tube.
Refit
7. Grease cable.
8. Feed cable into tube and locate into slide.
9. Position locator and secure with screws. Torque
tighten screws to
3 Nm (2.2 lbf.ft).
10. Fit the sunroof motor.
See this section.
11. Fit the sunroof panel.
See this section.
