Range Rover P38
76
CHASSIS AND BODY
NEW RANGE ROVER
80
REPAIR

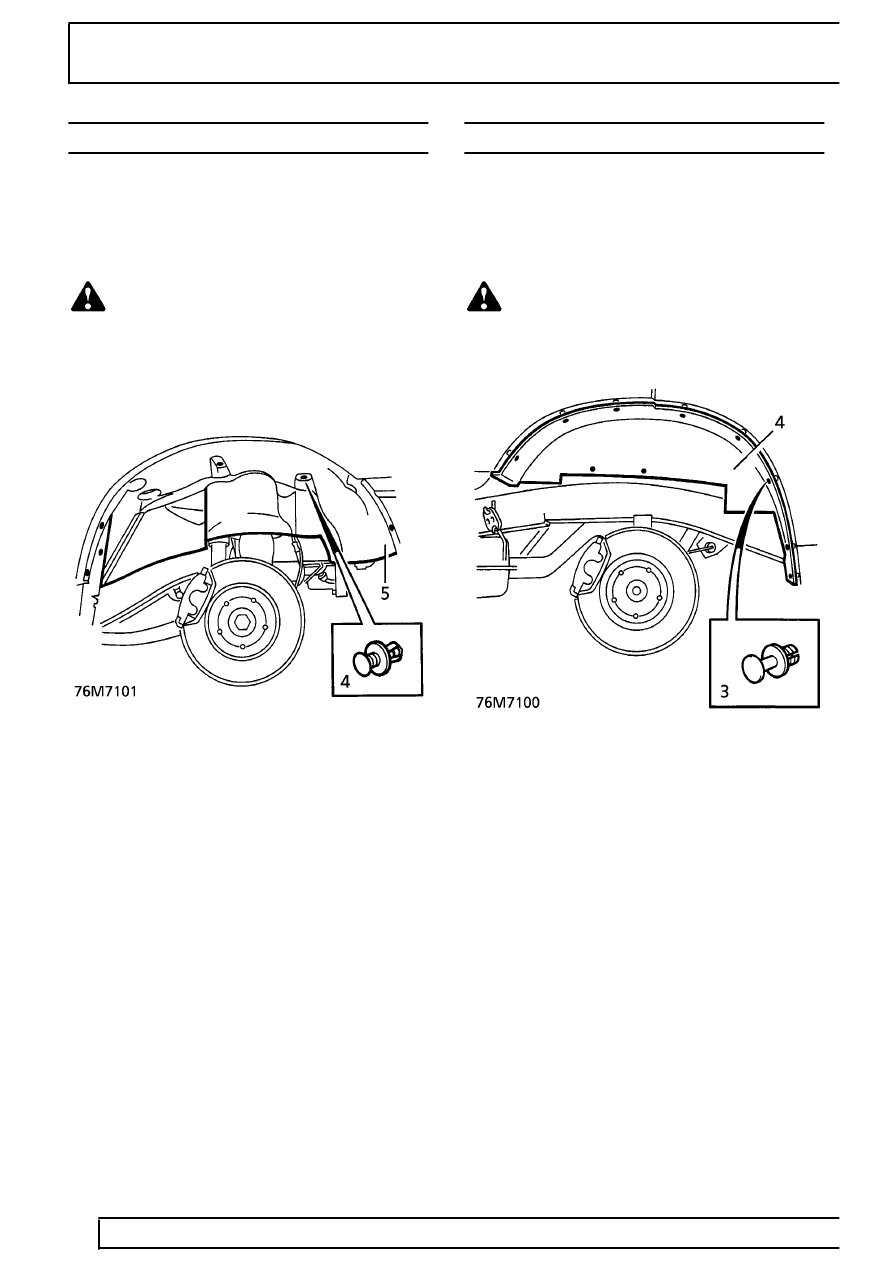

WHEEL ARCH LINER - FRONT
Service repair no - 76.10.48
Remove
1. Raise the vehicle.
WARNING: Support on safety stands.
2. Remove relevant road wheel.
3. Remove 3 screws securing mud flap. Remove
mud flap.
4. Remove 8 studs securing wheel arch liner.
Refit
5. Position liner and secure with trim studs.
6. Fit mud flap and secure with screws.
7. Refit road wheel. Secure with nuts. Tighten to
108 Nm. (80 lbf.ft)
8. Remove safety stands. Lower vehicle.
WHEEL ARCH LINER - REAR
Service repair no - 76.10.49
Remove
1. Raise the vehicle.
WARNING: Support on safety stands.
2. Remove relevant road wheel.
3. Remove screws from wheel arch liner fixings.
Remove fixings.
4. Remove liner.
Refit
5. Position liner. Fit liner fixings. Secure with
screws.
6. Refit road wheel. Secure with nuts. Tighten to
108 Nm. (80 lbf.ft)
7. Remove safety stands. Lower vehicle.
