Range Rover P38
CHASSIS AND BODY
71
REPAIR
SUNROOF - SUNSHADE
Service repair no - 76.82.03
Remove
1. Remove sunroof panel.
See this section.
2. Remove wind deflector.
See this section.
3. Remove front map/courtesy lamp.
See
ELECTRICAL, Repair.
4. Wind mechanism (manually) in a clockwise
direction to open position using sunroof key.

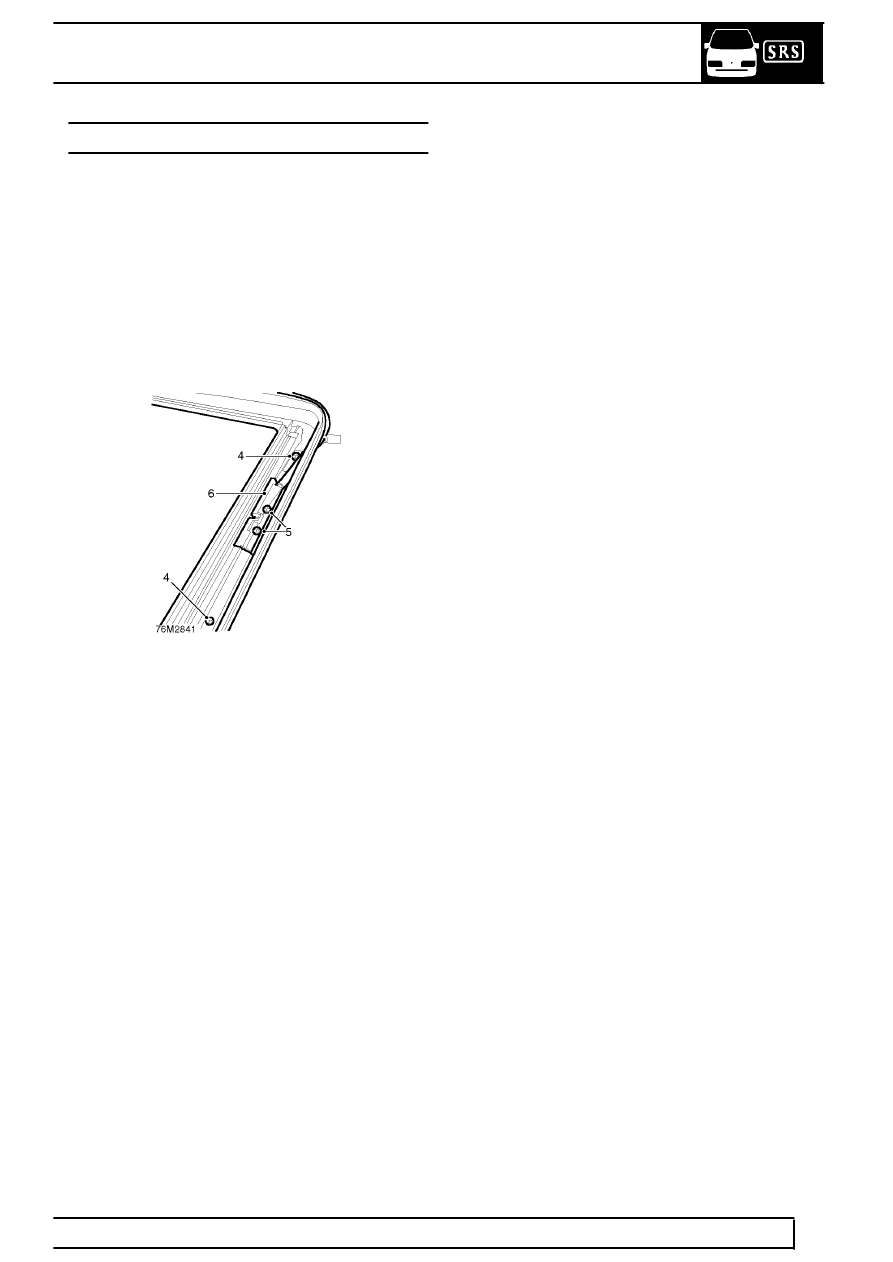

5. Remove 2 screws securing RH guide assembly.
6. Remove 2 screws securing RH drive cable
locator.
7. Remove the drive cable locator.
8. Move LH guide assembly aside.
9. Remove sunshade.
10. Collect 4 slide clips.
Refit
11. Position sunshade to LH guide assembly and
insert clips.
12. Position RH guide assembly to sunshade and
insert clips.
13. Secure RH guide assembly with screws and
torque tighten front screws to
3 Nm (2.2 lbf.ft)
and rear screws to
1.5 Nm (1.1 lbf.ft).
14. Position drive cable locator and secure with
screws and torque tighten screws to
3 Nm (2.2
lbf.ft).
15. Fit wind deflector.
See this section.
16. Wind mechanism in an anti-clockwise direction
to closed position using sunroof key.
17. Fit front map/courtesy lamp.
See ELECTRICAL,
Repair.
18. Fit sunroof panel.
See this section.
