INNER BODY SHELL ASSEMBLY (page 2 of 6)
- Make
- Land Rover
- Model
- Range Rover Classic
- Section
- REPAIR
76 - CHASSIS AND BODYINNER BODY SHELL ASSEMBLY · page 2 of 6
76
CHASSIS AND BODY
6
REPAIR

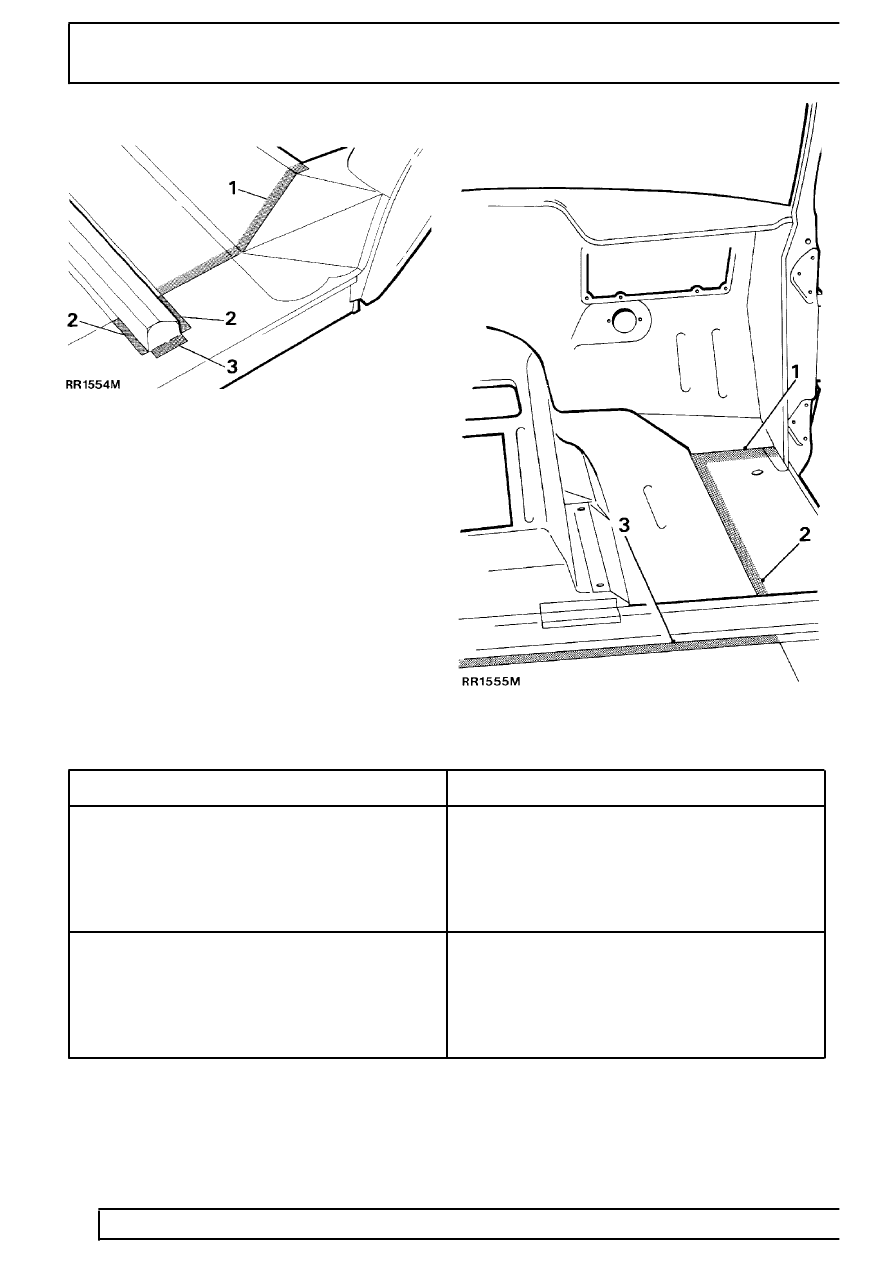

LOCATION E
LOCATION F
LOCATION
E.
1. Body side complete to heelboard panel
assembly.
14 spot welds, 35mm pitch
2. Body side complete to dash and tunnel
assembly complete.
10 spot welds, 25mm pitch
3. Body side complete to dash and tunnel
assembly complete.
3 spot welds, 30mm pitch
F.
1. Body side complete to dash and tunnel
assembly complete
7 spot welds, 30mm pitch
2. Body side complete to dash and tunnel
assembly complete
18 spot welds, 40mm pitch
3. Body side complete to dash and tunnel
assembly complete
30 spot welds, 34mm pitch
