76 - CHASSIS AND BODYINNER BODY SHELL ASSEMBLY · page 5 of 6

CHASSIS AND BODY

9

REPAIR

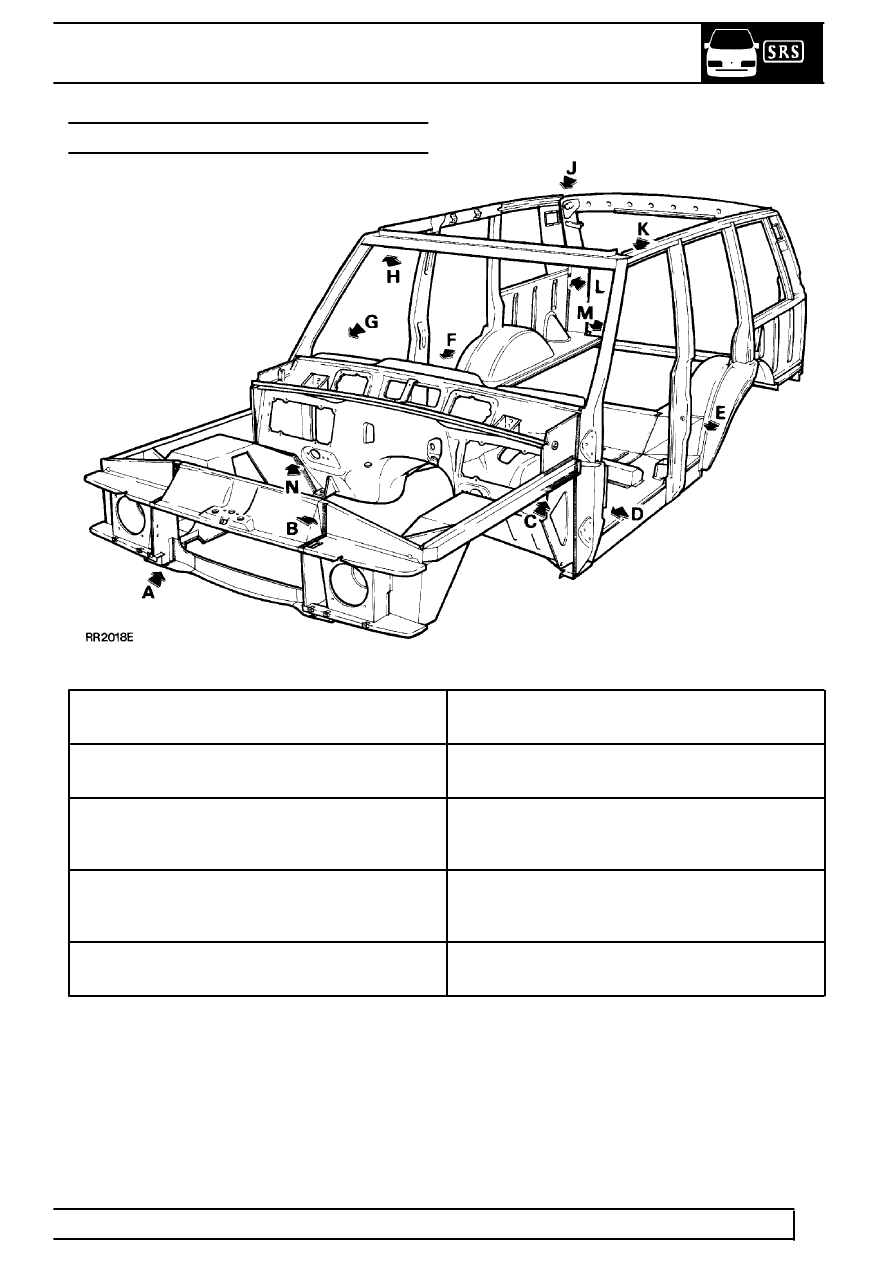

LOCATION L

LOCATION M

LOCATION

FACTORY JOINT
(minimum weld requirement quoted)

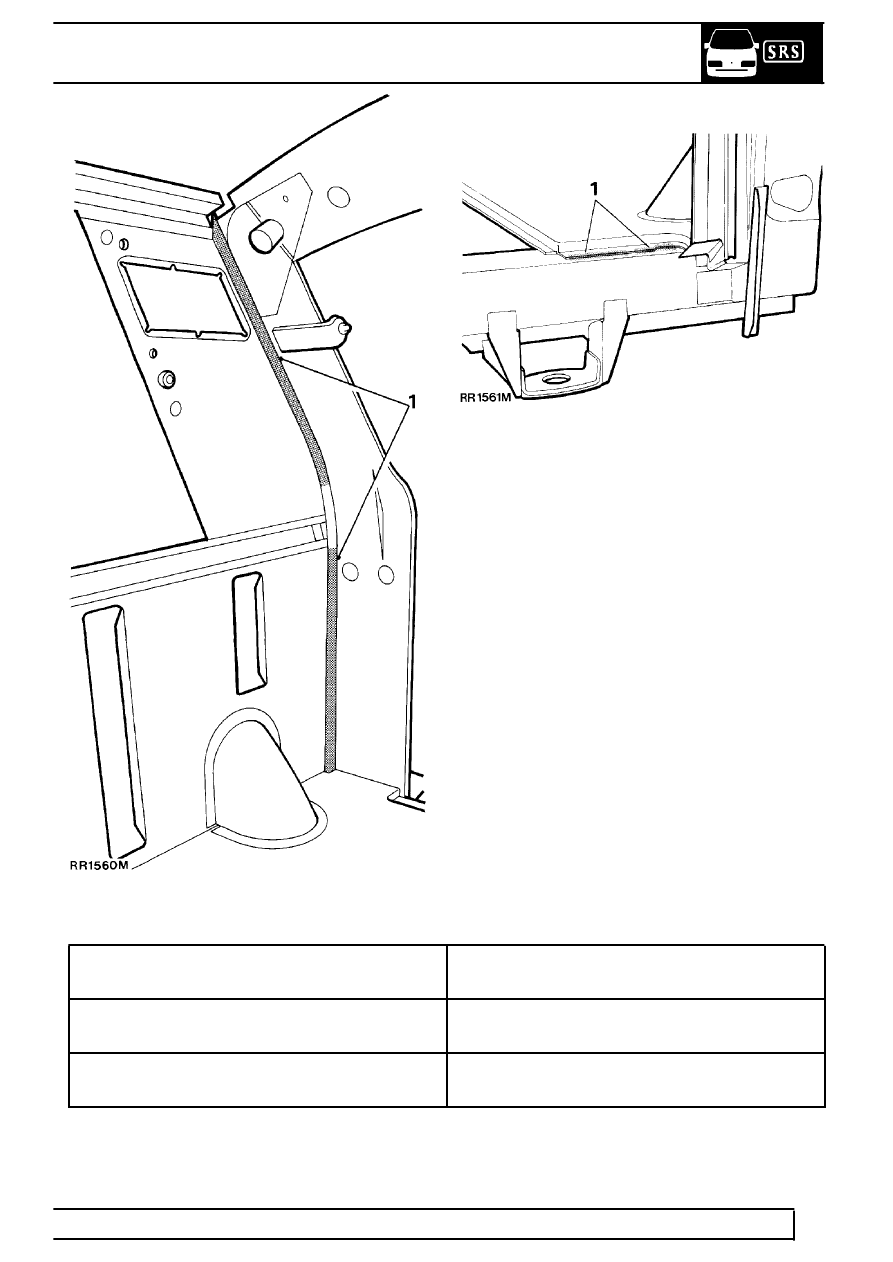

L.

1. Body side complete to rear tailgate side

member

32 spot welds, 30mm pitch

M.

1. Body side complete to rear tailgate bottom

cross member

CO

2

weld, 2 runs 40mm long
