Engine and gearbox - models without air conditioning (page 3 of 10)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement

Section

Repairs

Engine - K16Engine and gearbox - models without air conditioning · page 3 of 10

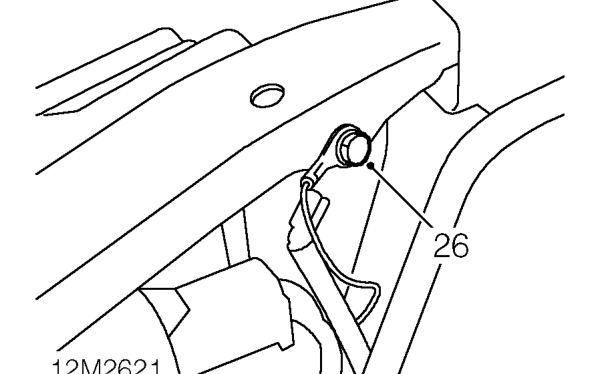

26. Remove bolt securing earth lead to bonnet locking platform.

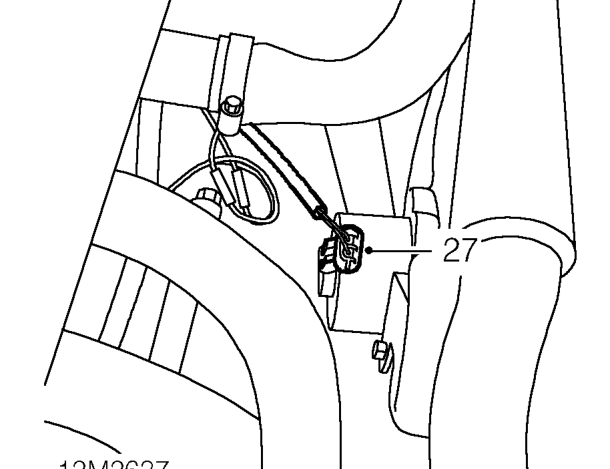

27. Disconnect multiplug from radiator cooling fan.

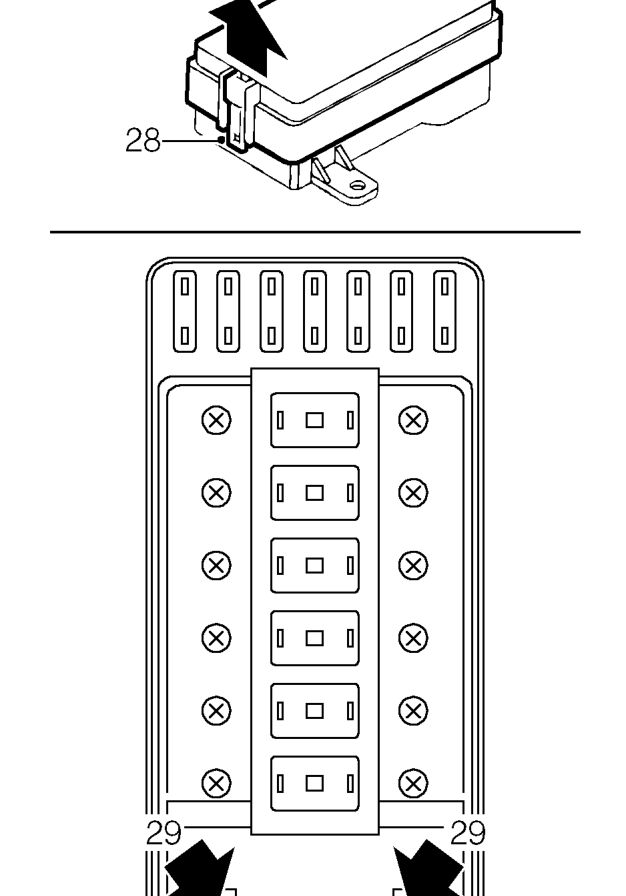

28. Release clip and remove fuse box cover.
29. Depress 2 clips and remove fuse box inner cover.

05 Engine
