Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and gearbox - models without air conditioning (page 8 of 10)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and gearbox - models without air conditioning · page 8 of 10
Diagram

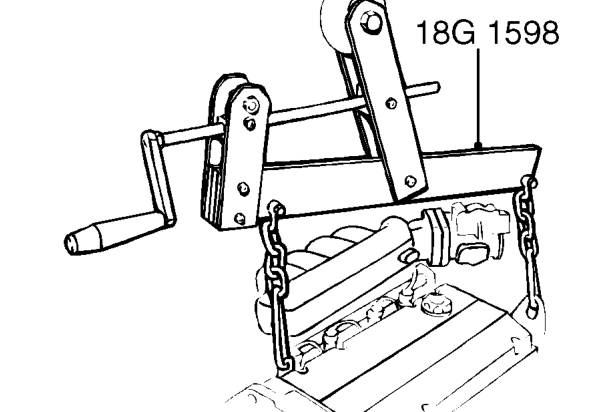

  1. Connect adjustable lifting bracket tool 18G 1598 to engine lifting brackets.
  2. Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
  3. Remove engine RH mounting. See this section.

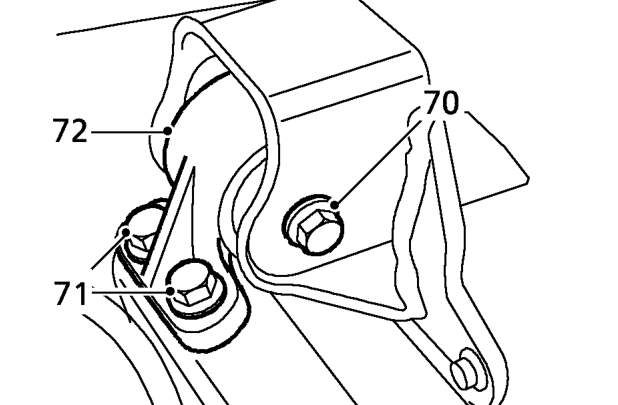

Remove engine RH mounting. See this section.
  1. Remove through bolt securing LH mounting to body bracket.
  2. Remove 2 bolts securing LH mounting bracket to gearbox.
  3. Remove engine LH mounting.
  4. Adjust tool 18G 1598 to tilt engine with the gearbox as low as possible.
  5. Using assistance, manoeuvre engine and gearbox from vehicle.

CAUTION: Take care not to damage the ABS modulator or brake pipes when removing the engine.

  1. Lower engine and gearbox assembly and disconnect hoist from adjustable lifting bracket.
