Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and gearbox - models without air conditioning (page 6 of 10)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and gearbox - models without air conditioning · page 6 of 10
Diagram

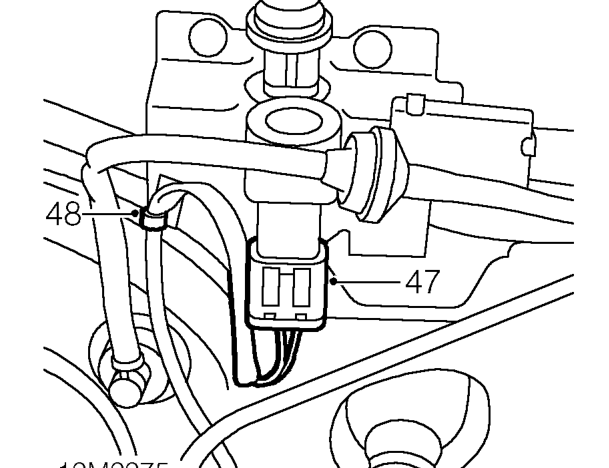

  1. Disconnect multiplug from inertia switch.
  2. Release clip securing inertia switch harness to mounting bracket.
Release clip securing inertia switch harness to mounting bracket.

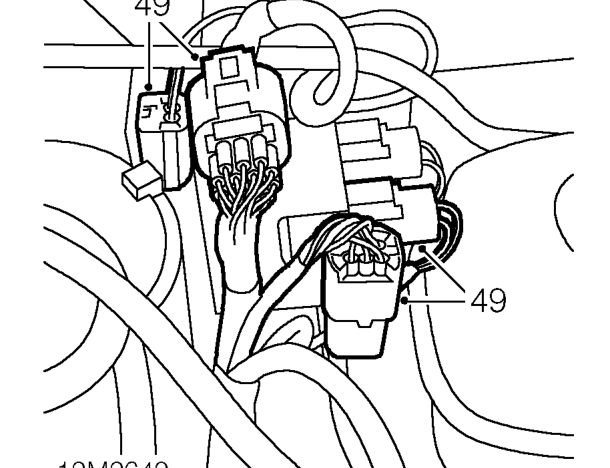

  1. Release 4 multiplugs from mounting bracket on bulkhead.
  2. Disconnect engine harness multiplugs from main harness.
  3. Loosen clip and disconnect coolant feed hose from coolant expansion tank.
  4. Position container to catch fluid loss from power steering system.
Position container to catch fluid loss from power steering system.

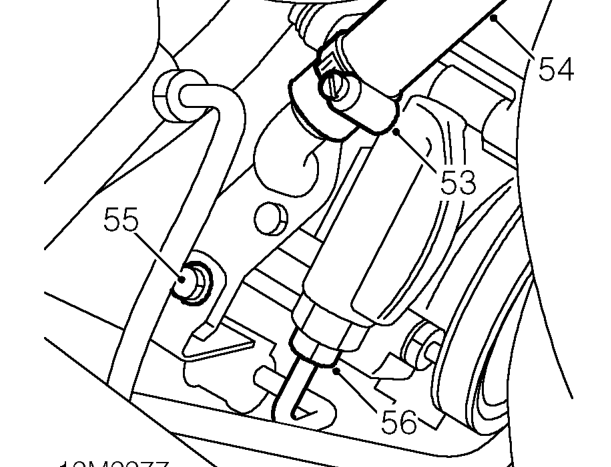

  1. Loosen clip securing fluid inlet hose to power steering pump.
  2. Disconnect fluid inlet hose from power steering pump.
  3. Remove bolt securing fluid outlet hose clamp to bracket.
  4. Loosen union and disconnect fluid outlet hose from power steering pump.

CAUTION: To prevent damage to pipes and components use two spanners when loosening or tightening unions.

  1. Remove and discard ’O’ ring from fluid outlet hose.
  2. Plug hose and power steering pump connections to prevent excess fluid loss and the ingress of dirt into the system.
Plug hose and power steering pump connections to prevent excess fluid loss and the ingress

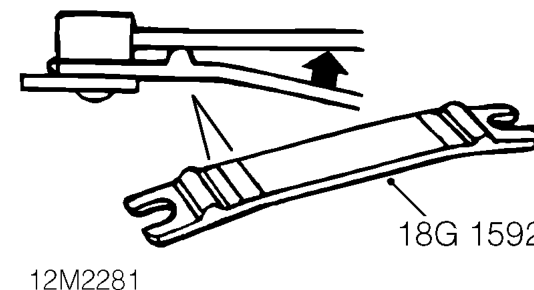

  1. Using tool 18G 1592 disconnect gear selector linkage ball joint from gear selector lever.
  2. Using tool 18G 1592 disconnect gear change linkage ball joint from gear change lever.
