STEERING
57-10
REPAIRS

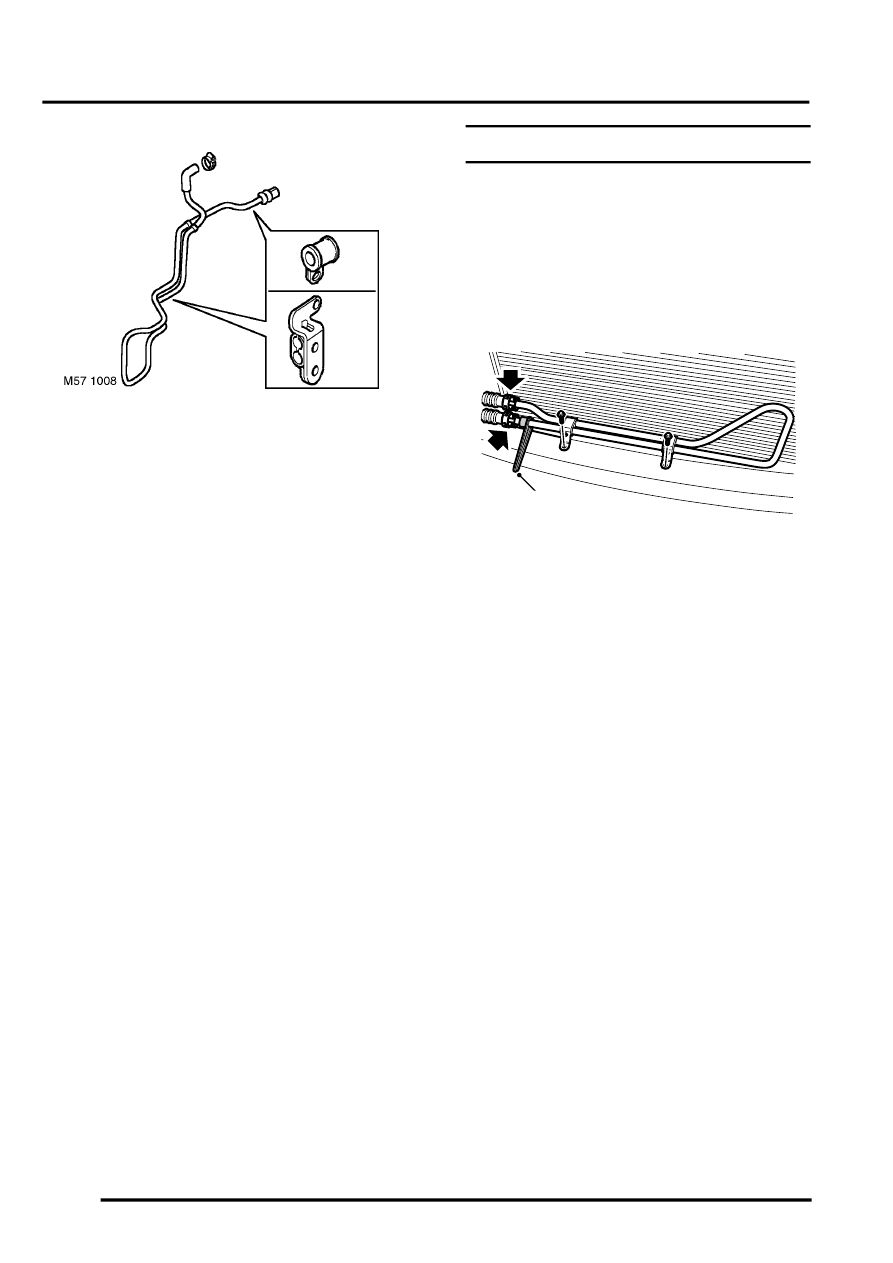

14. Remove clips from PAS oil cooler.
Refit
1. Clean cooler mounting points.
2. Fit clips to PAS cooler.
3. Fit PAS oil cooler to vehicle.
4. Connect quick release pipe fitting.
5. Align PAS pipe bracket, fit bolt and tighten to 10
Nm (7 lbf.ft).
6. Fit bolt to clip securing PAS pipe to RH turret,
tighten to 10 Nm (7 lbf.ft).
7. Fit PAS reservoir to mounting bracket.
8. Clean PAS fluid reservoir around filler cap and
fluid level indicators.
9. Fit PAS return hose to reservoir and secure
clip.
10. Td4 models: Fit intercooler outlet hose and
tighten clips.
11. Td4 models: Fit intake duct to body and duct
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Ducting - intake assembly.
12. Td4 models: Fit engine oil dipstick.
13. Fit engine acoustic cover if fitted.
ENGINE - Td4, REPAIRS, Cover -
engine acoustic - Up to 02.5 Model Year.
14. Connect battery earth lead.
15. Bleed PAS system.
assisted steering (PAS) system - bleed.
Oil cooler - KV6 models
$% 57.15.11
Remove
1. Remove front bumper.
Bumper - assembly - front - up to 04MY.
2. Position container below PAS pipes to catch
fluid spillage.
3. Using LRT-57-044 release and disconnect
PAS hoses from oil cooler.
4. Remove 2 bolts and remove PAS fluid cooler.
Refit
1. Fit fluid cooler and tighten bolts to 10 Nm (7
lbf.ft).
2. Clean connections.
3. Connect hoses to fluid cooler.
4. Fit front bumper.
Bumper - assembly - front - up to 04MY.
5. Bleed PAS system.
assisted steering (PAS) system - bleed.
M57 1204
