Freelander Service Procedures
STEERING
REPAIRS
57-9
Oil cooler - Td4 & K1.8 models
$% 57.15.11
Remove
1. Disconnect battery earth lead.
2. Remove engine acoustic cover if fitted.
ENGINE - Td4, REPAIRS, Cover -
engine acoustic - Up to 02.5 Model Year.
3. Td4 models: Release and remove air intake
duct.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Ducting - intake assembly.
4. Td4 models: Loosen 2 clips and remove
intercooler outlet hose.
5. Td4 models: Remove dipstick for access.
CAUTION: Always fit plugs to open
connections to prevent contamination.

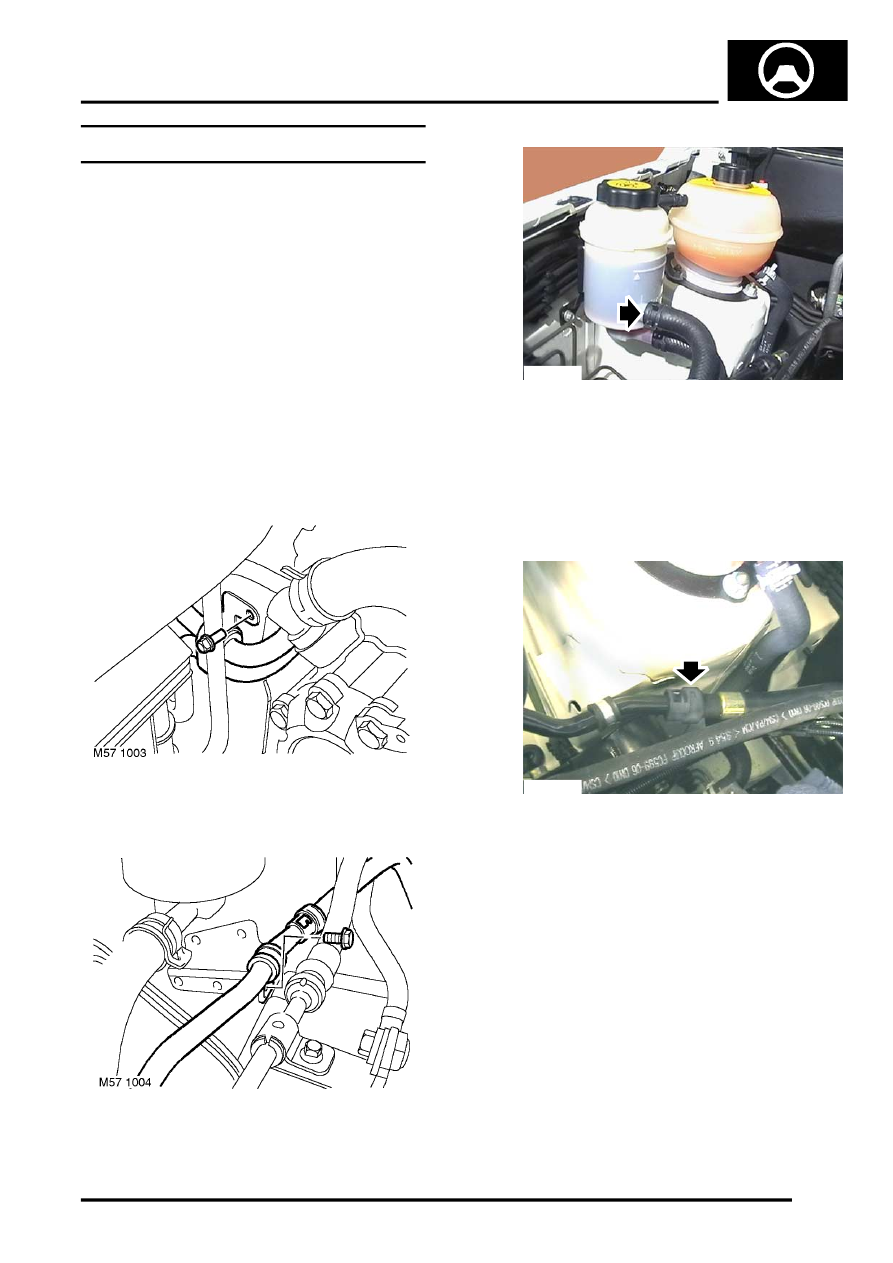

6. Remove bolt securing PAS oil cooler pipe lower
mounting bracket to body.
7. Remove bolt securing PAS oil cooler pipe to RH
suspension turret.
8. Place a suitable container beneath PAS
reservoir, release clip and disconnect return
hose from mount. Allow fluid to drain.
9. Place container beneath PAS quick release
pipe fitting.
10. Clean area surrounding quick release
connection.
11. Using LRT-57-044, disconnect cooler quick
release hose.
12. Release PAS reservoir from mounting bracket
and move aside.
13. Remove PAS oil cooler from vehicle.
NOTE: Do not carry out further dismantling if
component is removed for access only.
M12 6972
M57 1047
