Air bag - fascia - passenger - up to 04MY
$% 76.74.02
Remove
WARNING: It is imperative that before any
work is undertaken on the SRS system the
appropriate information is read thoroughly.
WARNING: When removing, testing or
installing an airbag module, do not lean
directly over it.
1. Make the SRS system safe.
Supplementary restraint system
precautions.

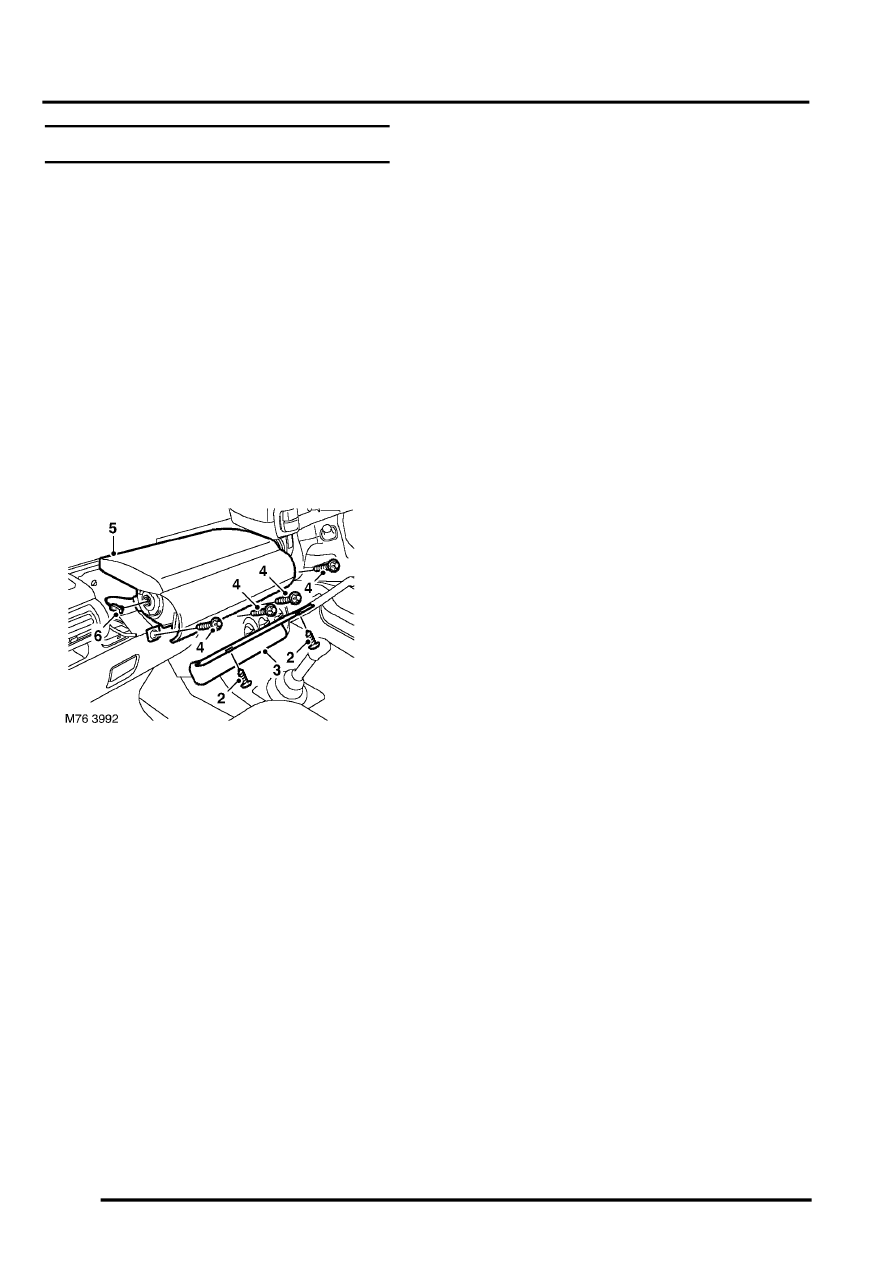

2. Remove 2 screws securing airbag lower
finisher.
3. Remove finisher.
4. Remove 4 Torx bolts securing airbag module to
fascia.
5. Release airbag from fascia.
CAUTION: Do not allow the airbag module
to hang by the airbag harness.
6. Release harness from clip and disconnect SRS
connector from air bag module.
7. Remove airbag module.
WARNING: Store the airbag module with the
deployment side uppermost. If it is stored
deployment side down, accidental
deployment will propel the airbag module
with enough force to cause serious injury.
Refit
NOTE: If the airbag module is to be replaced,
the bar code of the new module must be
recorded.
1. Position airbag and fit connector.
2. Fit airbag to fascia and tighten Torx screws to 9
Nm (7 lbf.ft).
3. Position airbag lower finisher and tighten
screws.
4. Connect battery leads, earth lead last.
