Freelander Service Procedures
STEERING
REPAIRS
57-13

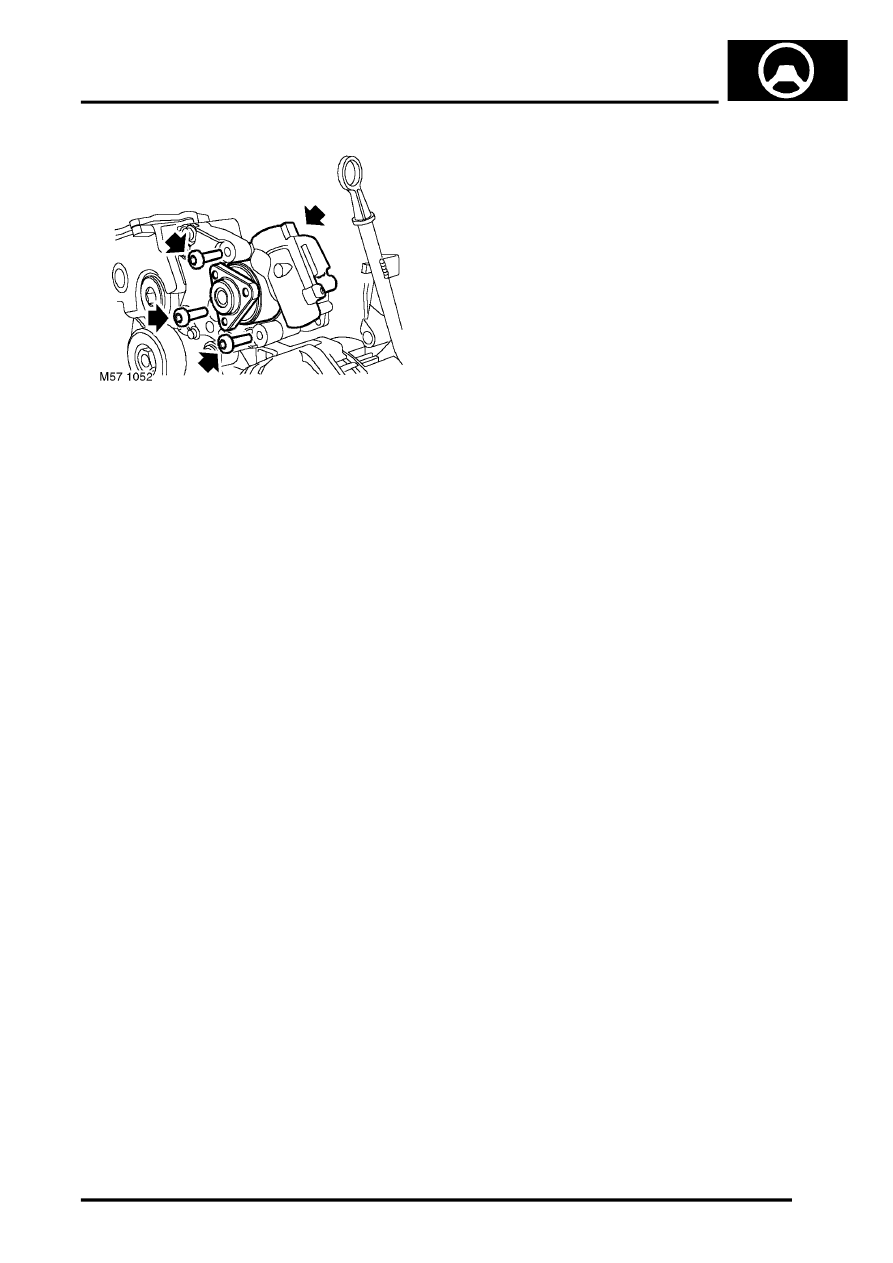

10. Remove 3 bolts securing PAS pump to
mounting bracket.
11. Remove PAS pump.
Refit

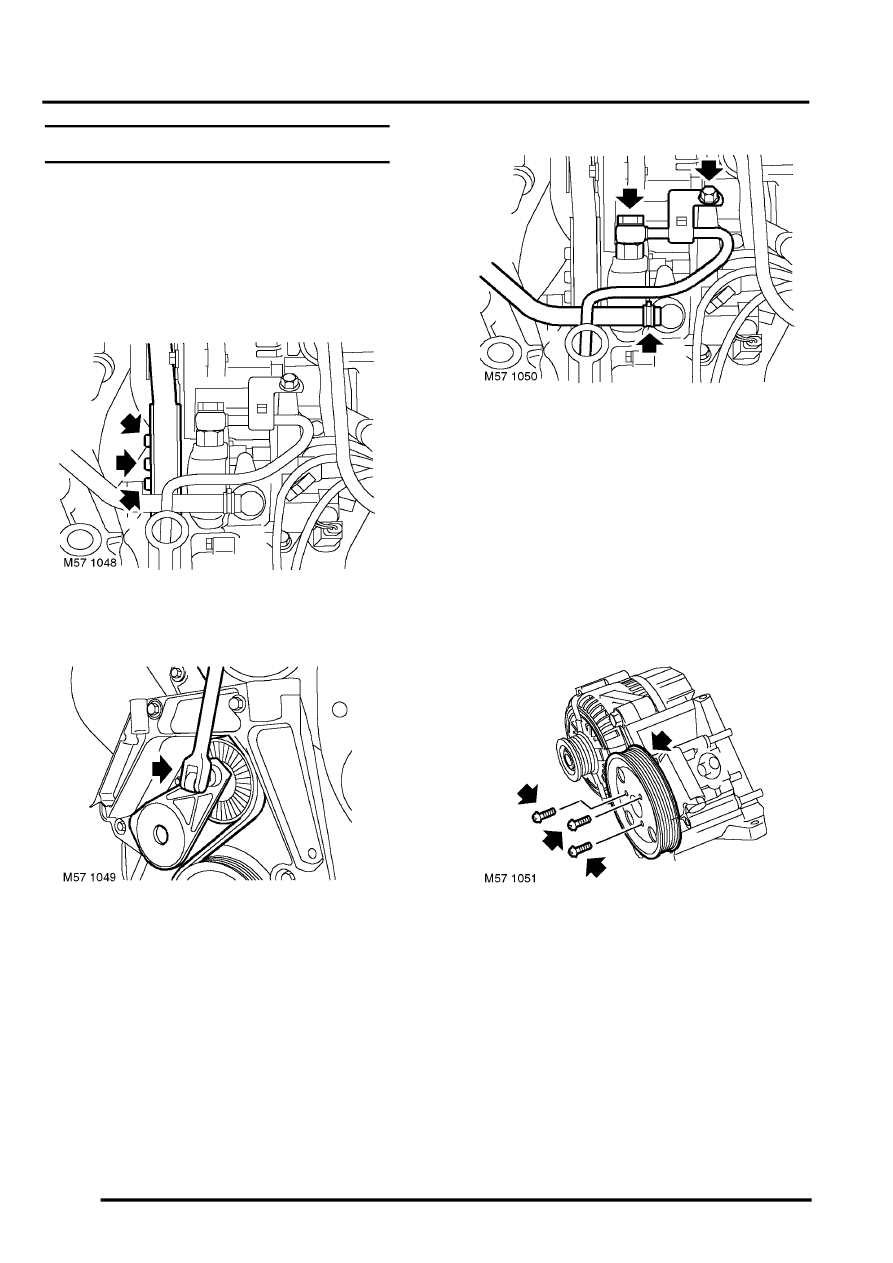

1. Position PAS pump and align to mounting
bracket.
2. Fit bolts securing PAS pump to mounting
bracket and tighten to 25 Nm (18 lbf.ft).
3. Fit PAS pump pulley to PAS pump and tighten
bolts to finger tight.
4. Remove plug from fluid outlet hose.
5. Clean banjo bolt and mating faces.
6. Using new sealing washers, fit PAS outlet hose
to pump and tighten banjo bolt to 20 Nm (15
lbf.ft).
CAUTION: To prevent damage to
components, use two spanners when
loosening or tightening unions.
7. Align outlet pipe clip. Fit bolt and tighten to 22
Nm (16 lbf.ft).
8. Clean elbow on PAS pump.
9. Remove plug from fluid inlet hose, fit new clip
and connect hose to PAS pump.
10. Remove container.
11. Clean pulley 'V's and tensioner pulley running
surface.
12. Using a 3/8” square drive socket bar, raise
ancillary drive belt tensioner and fit drive belt to
pulleys.
13. Tighten PAS pump pulley bolts to 10 Nm (7.5
lbf.ft).
14. Fit engine mounting top arm.
ENGINE - K SERIES KV6, REPAIRS,
Arm assembly - engine mounting RH.
15. Connect battery earth lead.
16. Bleed PAS system.
