Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Test (page 4 of 9)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Automatic gearboxTest · page 4 of 9
  1. Remove the rear stiffener, then remove the vehicle speed sensor/power steering speed sensor.

CAUTION: Do not disconnect the power steering pressure hoses from the vehicle speed sensor/power steering speed sensor.

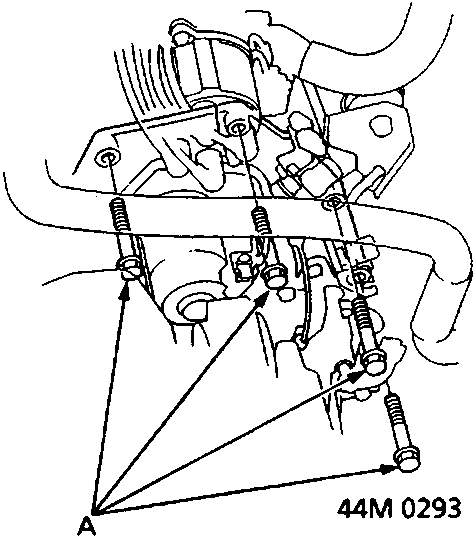

Diagram showing gearbox housing mounting bolts indicated by callout A

A Gearbox housing mounting bolts

  1. Remove the gearbox housing mounting bolts.

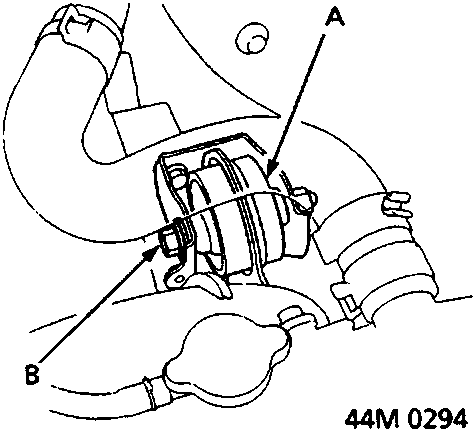

Diagram showing engine front mounting (A) and engine front mounting bolt (B)

A Engine front mounting

B Engine front mounting bolt

  1. Slacken but do not remove the engine front mounting bolt.

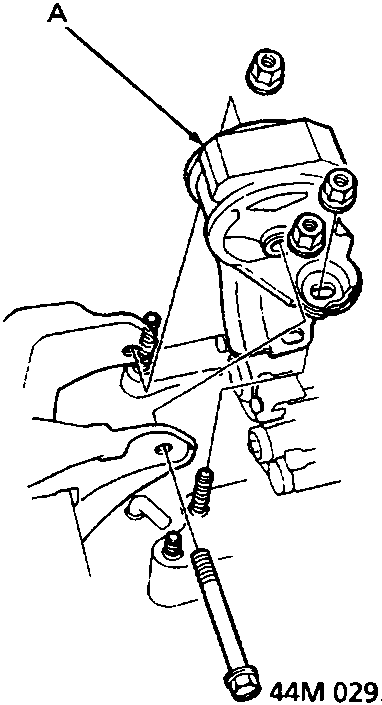

Diagram showing gearbox mounting indicated by callout A

A Gearbox mounting

  1. Remove gearbox mounting

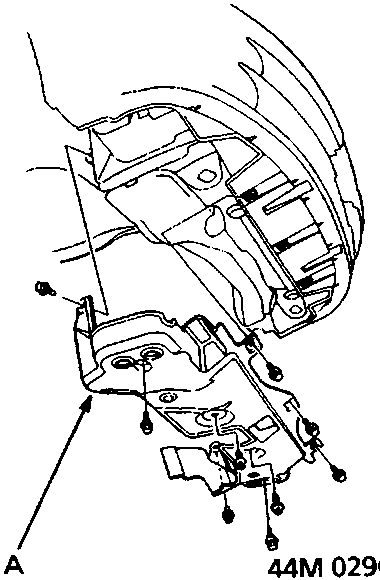

Diagram showing splash shield indicated by callout A

A Splash shield

  1. Remove the splash shield
