05 · Engine

Engine and automatic gearbox - models with air conditioning (page 2 of 11)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and automatic gearbox - models with air conditioning · page 2 of 11
Diagram

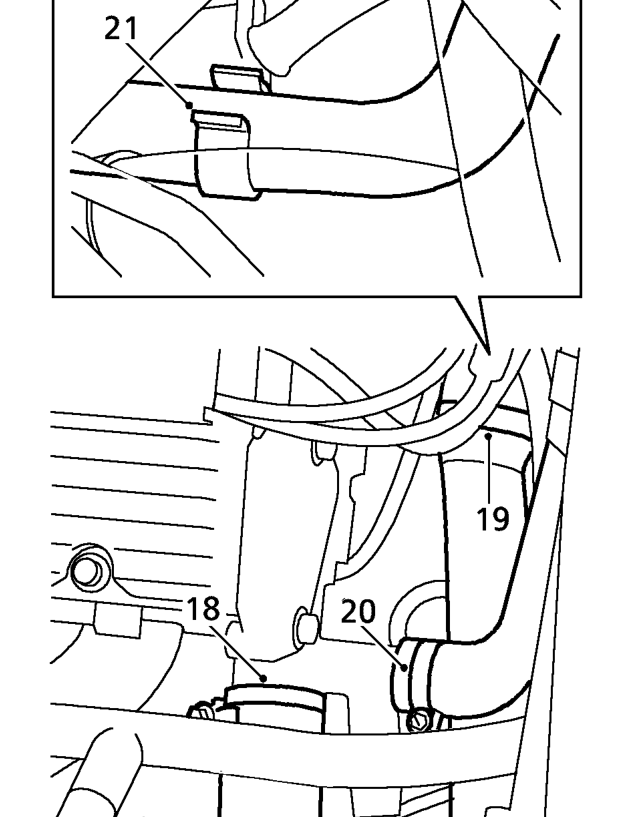

  1. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  2. Loosen clip and disconnnect radiator bottom hose from coolant rail.
  3. Loosen clip and disconnect heater hose from coolant outlet elbow.
  4. Release heater hose from clip on coolant rail and position aside.
Release heater hose from clip on coolant rail and position aside.

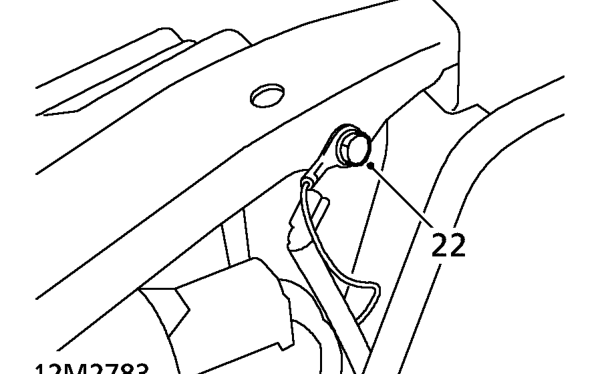

  1. Remove bolt securing earth lead to bonnet locking platform.
Remove bolt securing earth lead to bonnet locking platform.

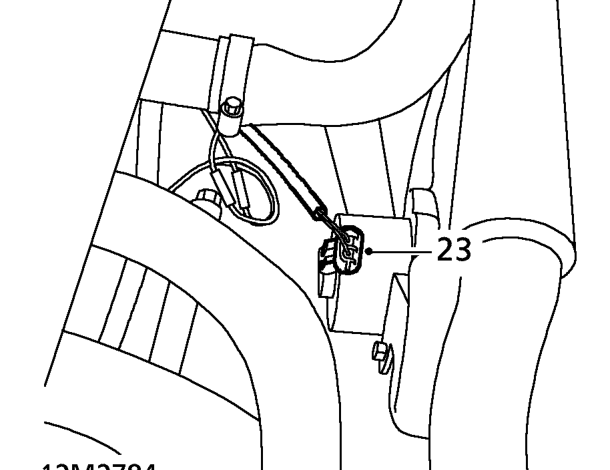

  1. Disconnect multiplug from radiator cooling fan.
