Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and automatic gearbox - models with air conditioning (page 4 of 11)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and automatic gearbox - models with air conditioning · page 4 of 11

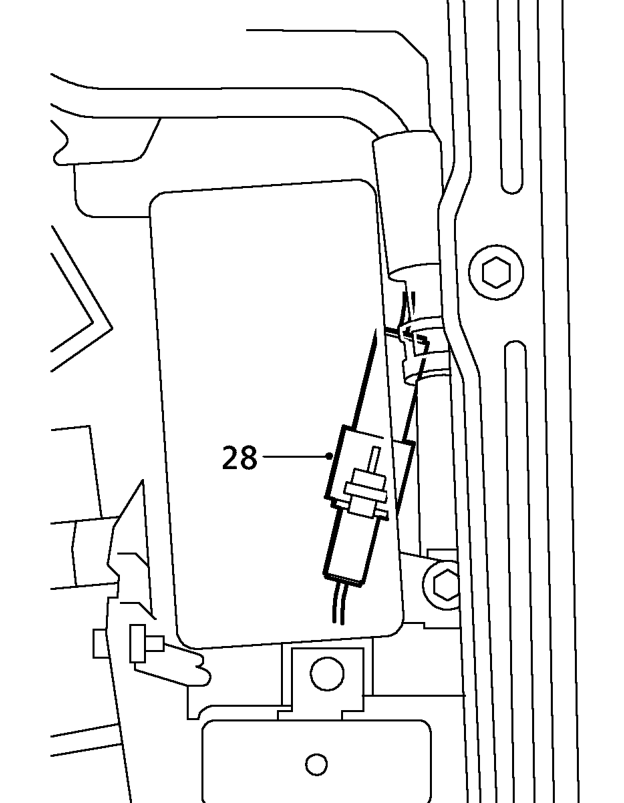

Diagram
  1. Disconnect engine harness to main harness connector.
  2. Lay engine harness across engine to avoid it being caught when the engine is removed.
  3. Remove evaporative emission canister. See EMISSION CONTROL, Repairs.
  4. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  5. Position absorbent cloth around fuel filter outlet union.

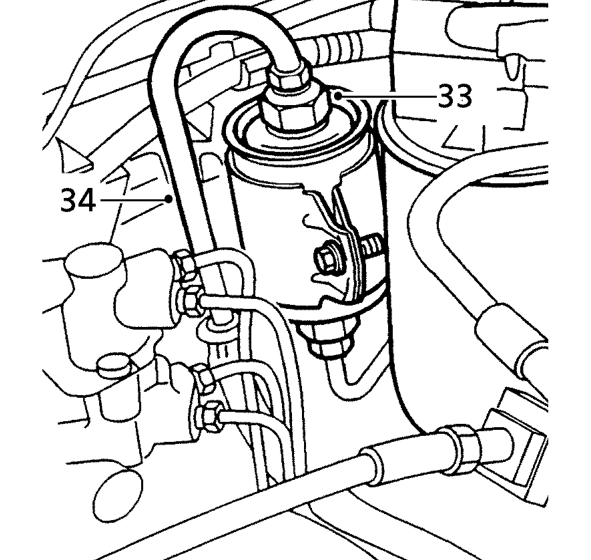

Position absorbent cloth around fuel filter outlet union.
  1. Loosen fuel filter outlet union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes and components use two spanners when loosening or tightening unions.

  1. Disconnect fuel outlet pipe from fuel filter and position aside.

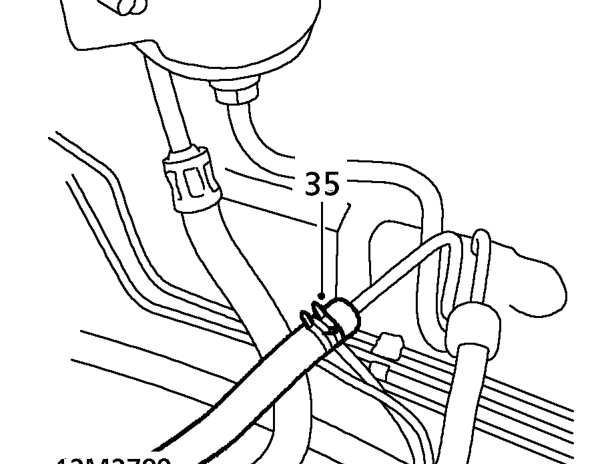

Disconnect fuel outlet pipe from fuel filter and position aside.
  1. Release clip and disconnect hose from fuel return pipe.
