Engine and automatic gearbox - models with air conditioning (page 6 of 11)

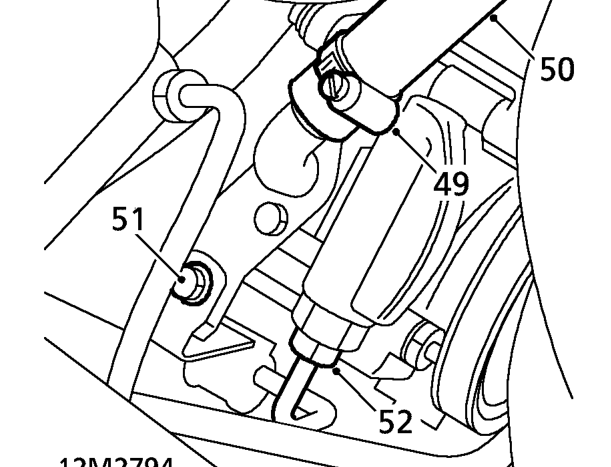

49. Loosen clip securing fluid inlet hose to power steering pump.
50. Disconnect fluid inlet hose from power steering pump.
51. Remove bolt securing fluid outlet hose clamp to bracket.
52. Loosen union and disconnect fluid outlet hose from power steering pump.

CAUTION: To prevent damage to pipes and components use two spanners when loosening or tightening unions.

53. Remove and discard ’O’ ring from fluid outlet hose.
54. Plug hose and power steering pump connections to prevent excess fluid loss and the ingress of dirt into the system.

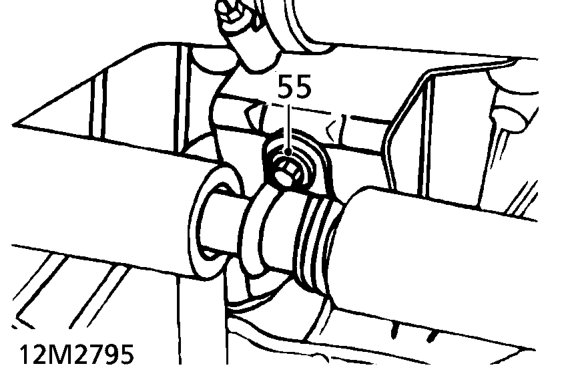

55. Remove bolt securing air conditioning pipe to bracket on flywheel housing.

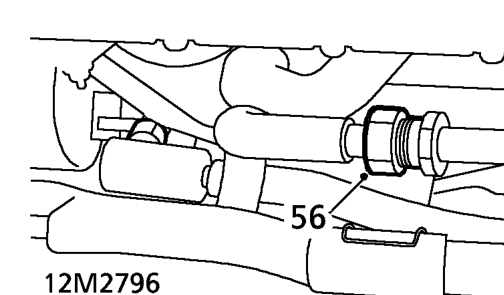

56. Loosen union and disconnect compressor pipe from evaporator pipe.

CAUTION: To prevent damage to air conditioning pipes and components use two spanners when loosening or tightening unions.

57. Remove and discard ’O’ ring from compressor pipe.
58. Position evaporator pipe aside.

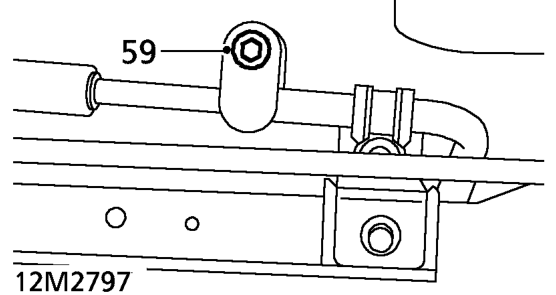

59. Remove bolt securing compressor pipe to condenser pipe.
60. Release compressor pipe from condenser pipe and discard ’O’ ring.
