Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and automatic gearbox - models with air conditioning (page 7 of 11)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and automatic gearbox - models with air conditioning · page 7 of 11
Diagram

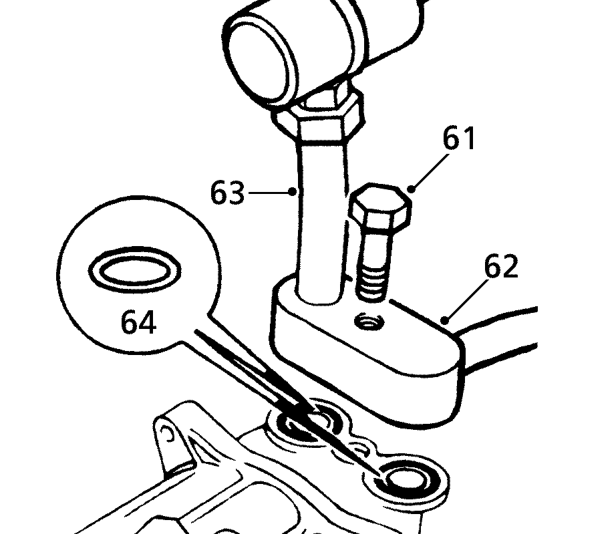

  1. Remove bolt securing air conditioning pipe union to compressor.
  2. Release air conditioning pipe union from compressor.
  3. Remove air conditioning pipes.
  4. Remove and discard 2 ’O’ rings from compressor.

CAUTION: Immediately cap all air conditioning pipes and compressor to prevent ingress of dirt and moisture into the system.

Remove and discard 2 ’O’ rings from compressor.

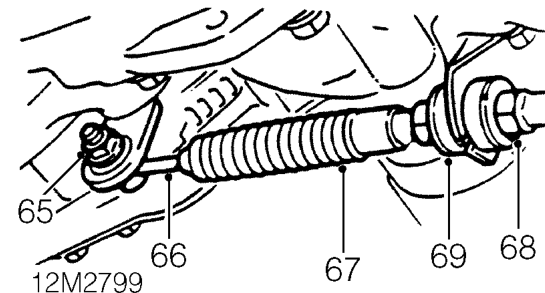

  1. Remove nut securing selector cable rod to selector lever.
  2. Release selector cable rod from selector lever.
  3. Slide rubber sleeving back from lock nut on selector cable rod.
  4. Loosen lock nut securing selector cable to abutment bracket.
  5. Seperate anti-vibration rubbers and release cable from abutment bracket.
Seperate anti-vibration rubbers and release cable from abutment bracket.

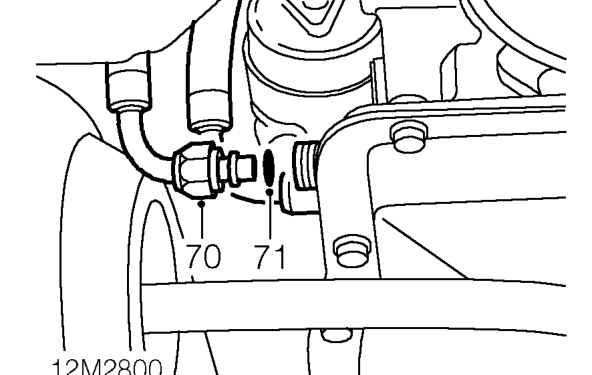

  1. Loosen unions and disconnect 2 fluid cooler hoses from gearbox.
  2. Remove and discard ’O’ rings from fluid cooler hose unions.

CAUTION: Plug the connections.
