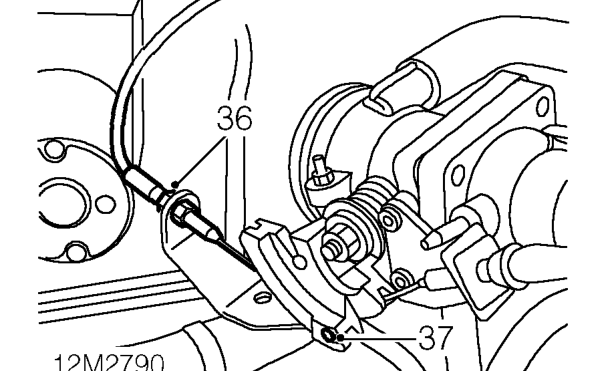

36. Release throttle cable adjusting nut from abutment bracket.
37. Release throttle cable from throttle cam.

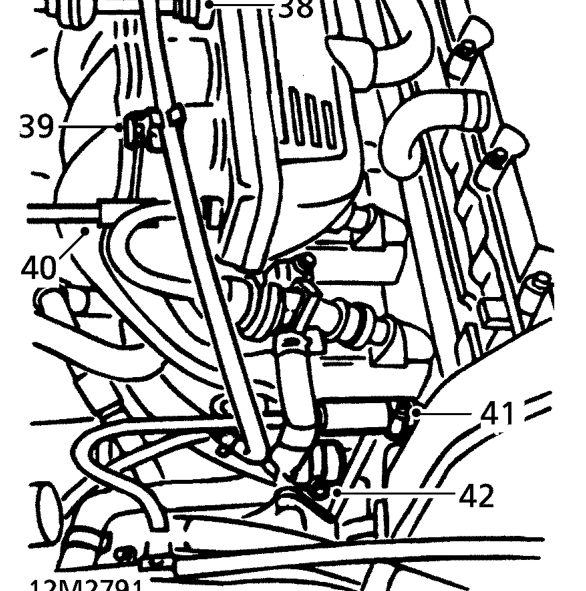

38. Depress plastic collar on quick release connector and disconnect brake servo vacuum pipe from inlet manifold.
39. Release throttle cable from clip on inlet manifold.
40. Disconnect ECM vacuum pipe from inlet manifold.
41. Loosen clip and disconnect expansion tank hose from inlet manifold.
42. Loosen clip and disconnect coolant hose from thermostat housing.

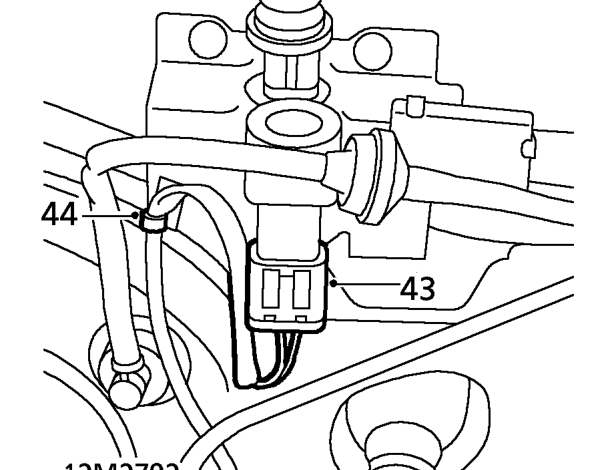

43. Disconnect multiplug from inertia switch.
44. Release clip securing inertia switch harness to mounting bracket.

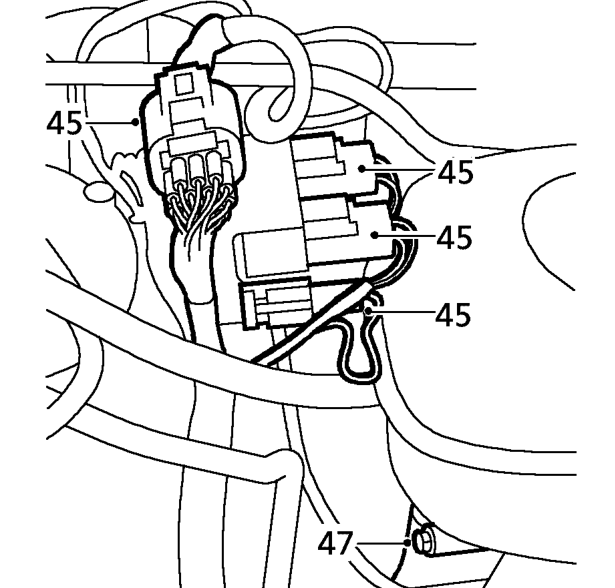

45. Release 4 multiplugs from mounting bracket on bulkhead.
46. Disconnect engine harness multiplugs from main harness.
47. Loosen clip and disconnect coolant feed hose from coolant expansion tank.
48. Position container to catch fluid loss from power steering system.
