Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and automatic gearbox - models with air conditioning (page 9 of 11)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and automatic gearbox - models with air conditioning · page 9 of 11

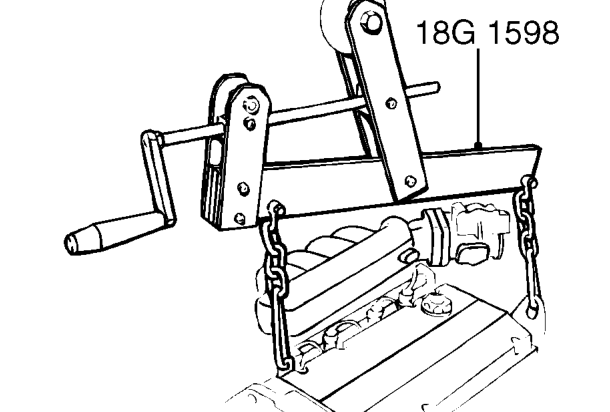

Diagram
  1. Connect adjustable lifting bracket tool 18G 1598 to lifting brackets.
  2. Connect a hoist to tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
Connect a hoist to tool 18G 1598 and raise hoist to take weight of engine without exerting

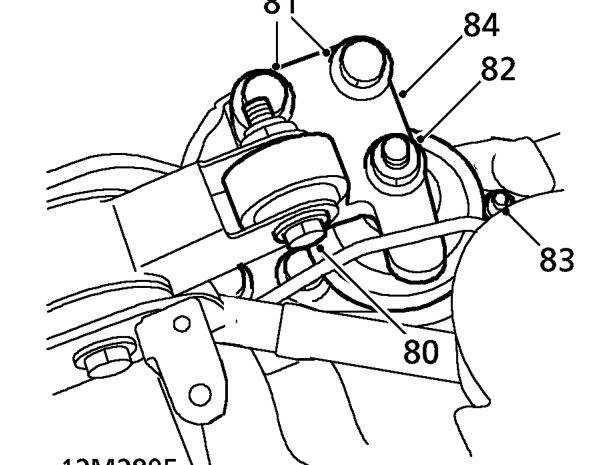

  1. Remove bolt securing RH steady bar to engine mounting.
  2. Remove 2 bolts securing mounting bracket to engine.
  3. Remove nut securing mounting bracket to engine mounting.
  4. Loosen 2 nuts securing engine mounting restraint bar to body.
  5. Remove RH engine mounting bracket.
Remove RH engine mounting bracket.

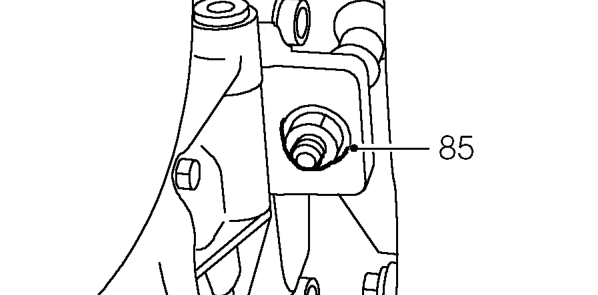

  1. Remove and discard nut securing gearbox mounting bracket to engine LH mounting.
  2. Adjust tool 18G 1598 to tilt engine with the gearbox as low as possible.
  3. Using assistance, manoeuvre engine and gearbox from vehicle.

CAUTION: Take care not to damage the ABS modulator or brake pipes when removing the engine.

  1. Lower engine and gearbox assembly and disconnect hoist from adjustable lifting bracket.
