Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and automatic gearbox - models with air conditioning (page 8 of 11)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and automatic gearbox - models with air conditioning · page 8 of 11
Diagram

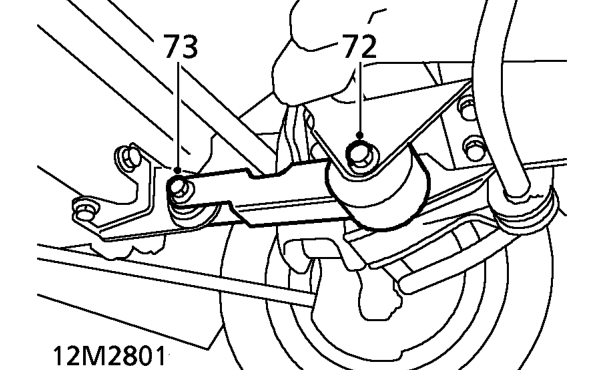

  1. Loosen through bolt securing engine steady bar to subframe.
  2. Remove through bolt securing engine steady bar to bracket on sump.
Remove through bolt securing engine steady bar to bracket on sump.

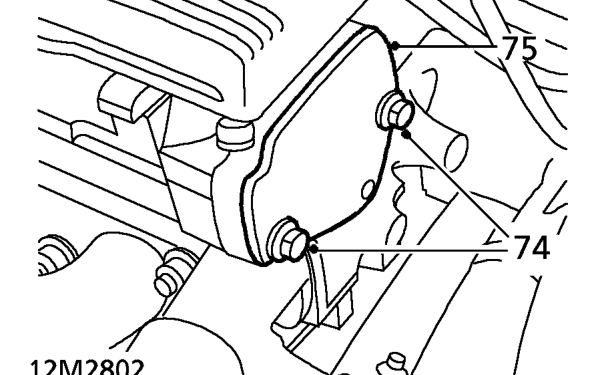

  1. Remove 2 bolts securing camshaft rear cover plate to cylinder head.
  2. Remove camshaft rear cover plate.
Remove camshaft rear cover plate.

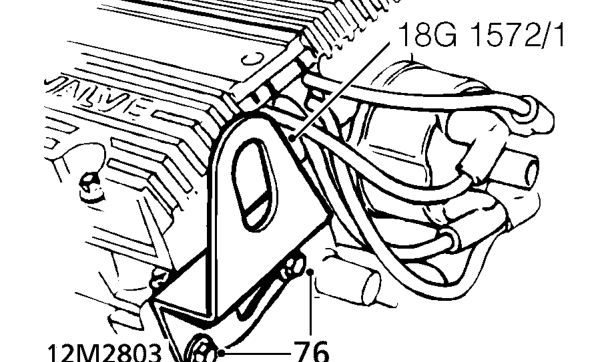

  1. Fit lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.
Fit lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.

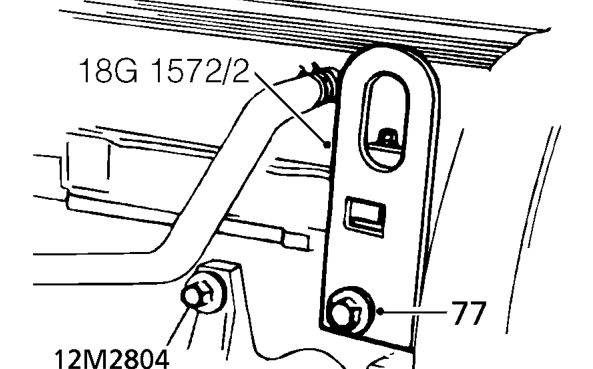

  1. Fit lifting bracket tool 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.
