AUTOMATIC GEARBOX - JATCO

REPAIRS

44-7

Selector cable

$% 44.15.08

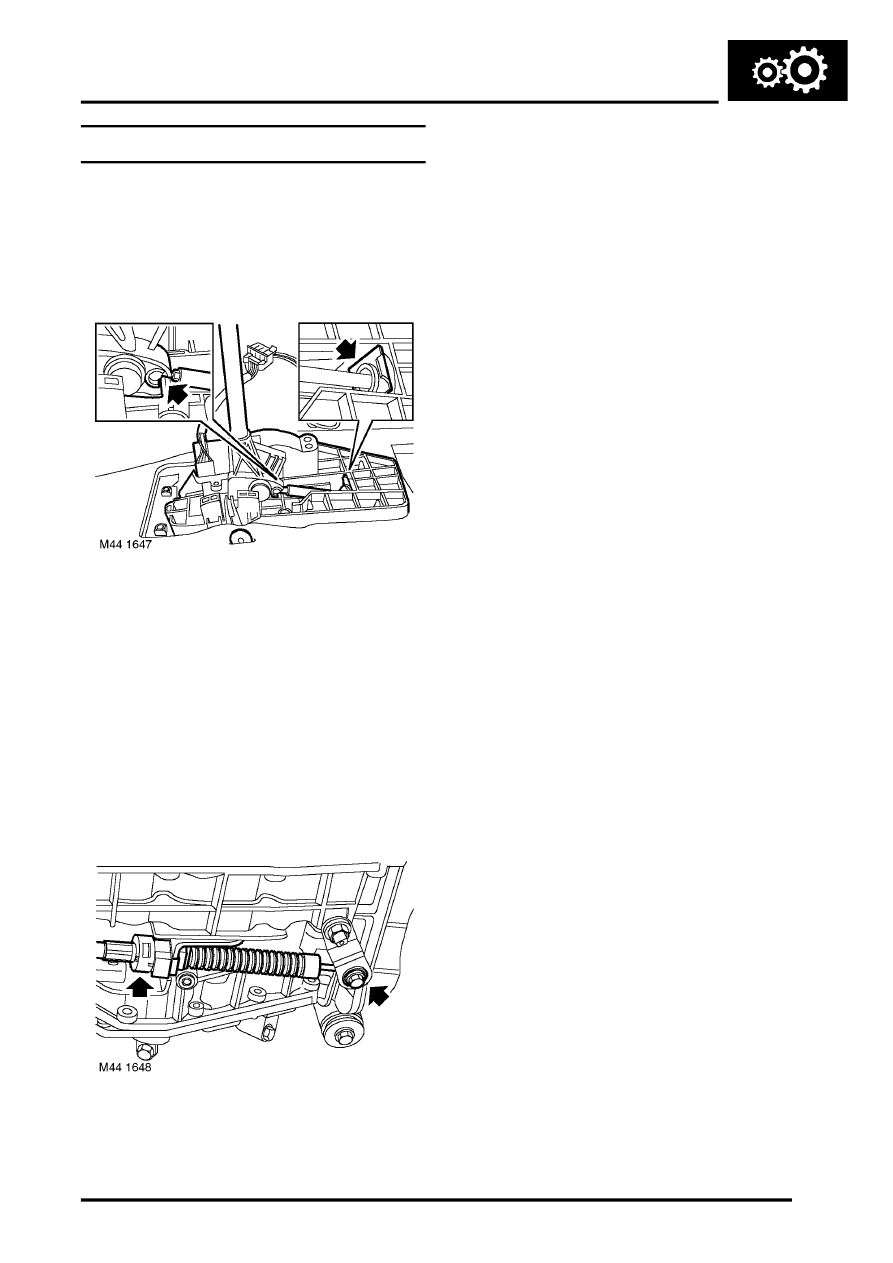

Remove

1. Remove front console.

 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front - up to 04MY.

2. Release inner cable from selector lever.
3. Remove 'C' clip securing outer cable to selector

housing.

4. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

5. Remove underbelly panel.

 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

6. Remove cable tie and release gear selector

cable from clip on body.

7. Loosen selector cable trunnion nut.
8. Release clip securing selector cable to gearbox

bracket, remove selector cable and collect
trunnion from selector lever.

Refit

1. Position trunnion to selector lever, locate inner

cable through trunnion, do not tighten nut at this
stage.

2. Position selector cable to gearbox bracket and

secure with clip.

3. Locate cable in selector housing and secure

outer cable in clip.

4. Secure outer cable to selector housing with 'C'

clip.

5. Secure inner cable to selector lever.
6. Fit front console.

 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Console - front - up to 04MY.

7. Check and adjust selector cable.

 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Selector cable - adjust.

8. Fit underbelly panel.

 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

9. Remove stands and lower vehicle.
